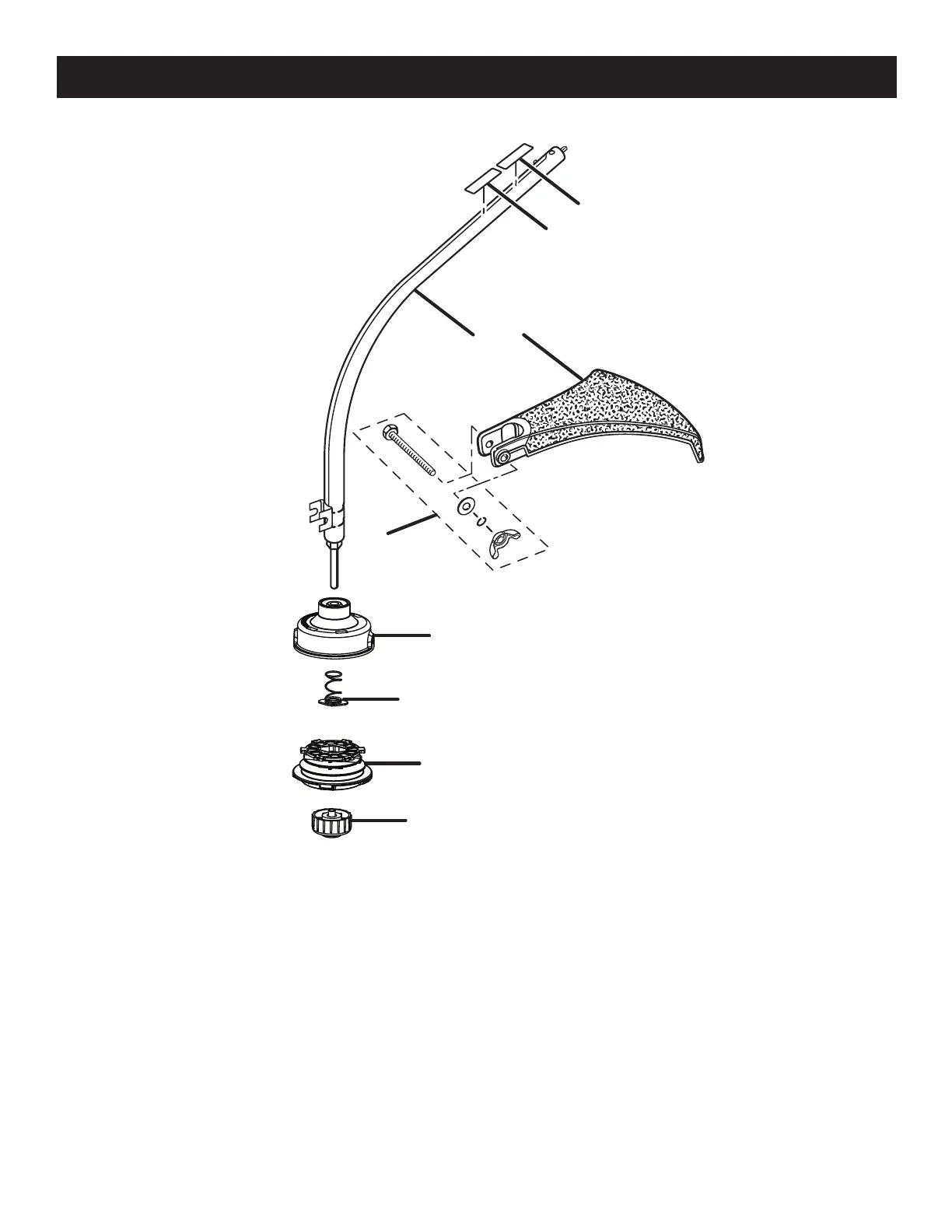

Ryobi RY15525 - Exploded View and Parts List

10 — English
6
7
8
9
5
3
4
2
1
1 940657032 Warning Label ............................................................................................................ 1
2 940726013 Logo Label ................................................................................................................. 1
3 308038010 Curved Shaft .............................................................................................................. 1
4 308052001 Curved Shaft Grass Deflector .................................................................................... 1
5 120642001 Washer and Bolt Assembly ........................................................................................ 2
6 310643001 String Head Housing ................................................................................................. 1
7 678022001 Spring ........................................................................................................................ 1
8 310412001 Spool.......................................................................................................................... 1
9 308042002 Spool Retainer ........................................................................................................... 1
988000438 Operator’s Manual (Not Shown)
Key Part
No. Number Description Qty.
ILLUSTRATED PARTS LIST
