Ryobi RY34421 - Figure C (Model RY34420); Figure C (Model RY34440)

6

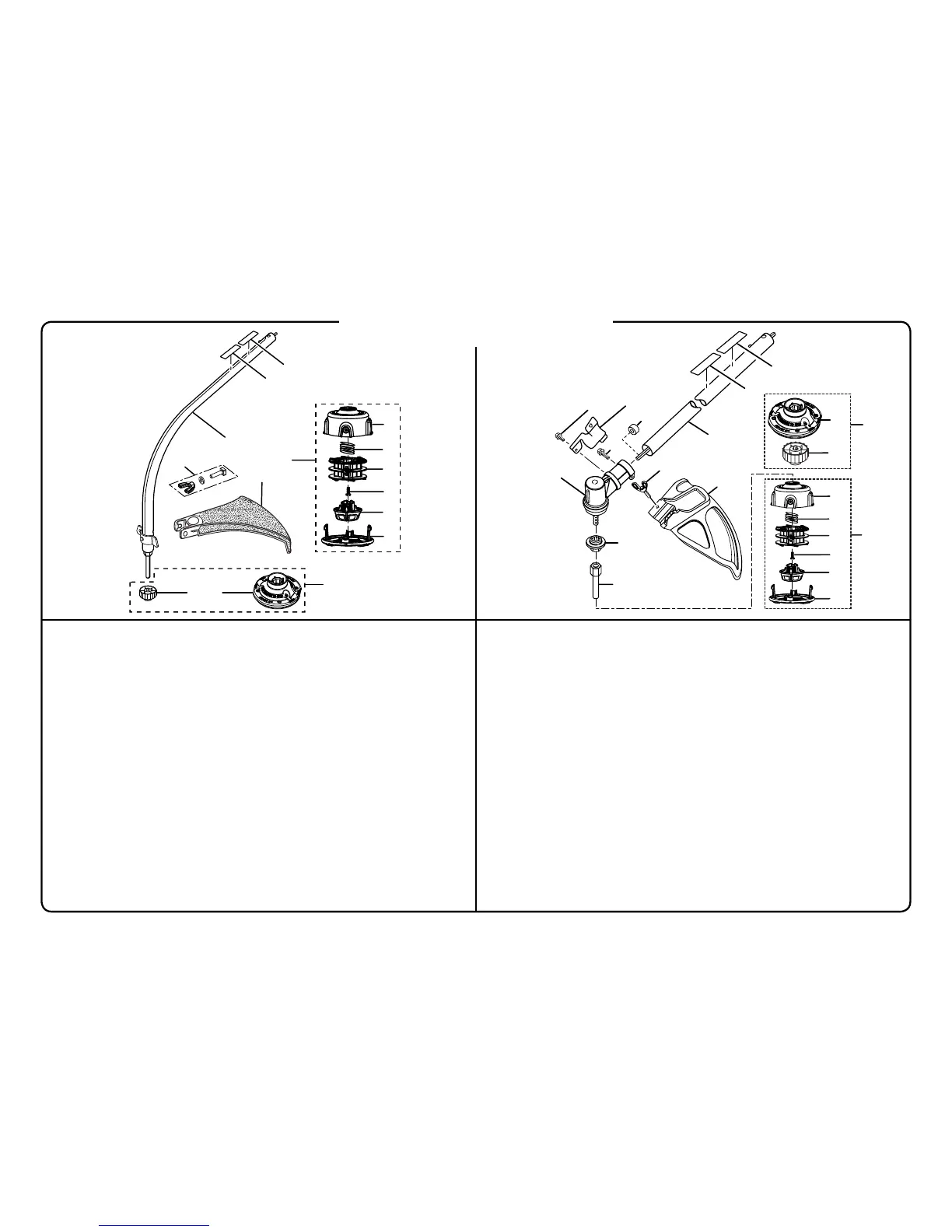

RYOBI 30cc STRING TRIMMERS
MODEL NUMBERS – RY34420, RY34440
FIGURE C
MODEL
RY34440
FIGURE C
MODEL
RY34420
7
9
10
11
12
13
14
6
3
4
2
1
5
15
8
Key Service
No. Number Description Qty.
1 940627024 Expand-it Label ...................................................................... 1
2 940230132 Warning Decal ....................................................................... 1
3 308038010 Curved Shaft Assembly ......................................................... 1
4 120642001 Fastener Kit ............................................................................ 1
5 308052001 Grass Deflector ...................................................................... 1
6 308042002 Spool Retainer (Black)............................................................ 1
7 308925001 Pro Cut II String Head ............................................................ 1
8 120950011 Pro Cut II String Head Assembly ........................................... 1
9 308827002 Housing .................................................................................. 1
10 678749001 Spring ..................................................................................... 1
11 308924001 Spool ...................................................................................... 1
12 660650001 Bolt (5/16-18 x 1/2 in.) ........................................................... 1
13 518803001 Knob ....................................................................................... 1
14 518804001 Cover ...................................................................................... 1
15 120950010 Reel Easy String Head Assembly ........................................... 1
6
5
4
7
8
11
9
12
2
1
10
14
13
3
16
17
18
19
20
21
22
15
Key Service
No. Number Description Qty.
1 940627024 Expand-it Label ...................................................................... 1
2 940230132 Warning Decal ........................................................................ 1
3 308035011 Straight Shaft Assembly ........................................................ 1
4 660736001 Screw (10-24 x 5/8 in.) ........................................................... 1
5 638125001 Clamp ..................................................................................... 1
6 518367001 Spacer .................................................................................... 1
7 660642001 Screw (1/4-20 x 1-1/4 in.) ...................................................... 1
8 308210002 Gear Head .............................................................................. 1
9 678011002 Flanged Washer ..................................................................... 1
10 678019002 Arbor ...................................................................................... 1
11 660886001 Wing Screw (1/4-20 x 1-1/4 in.) ............................................. 1
12 308473001 Grass Deflector Assembly ..................................................... 1
13 308925001 Pro Cut II String Head ............................................................ 1
14 308042003 Spool Retainer (Red) .............................................................. 1
15 120950011 Pro Cut II String Head Assembly ........................................... 1
16 308827002 Housing .................................................................................. 1
17 678749001 Spring ..................................................................................... 1
18 308924001 Spool ...................................................................................... 1
19 660649001 Bolt (5/16-18 x 1/2 in. LH) ...................................................... 1
20 518803001 Knob ....................................................................................... 1
21 518804001 Cover ...................................................................................... 1
22 120950010 Reel Easy String Head Assembly ........................................... 1
