223Car care and technical information

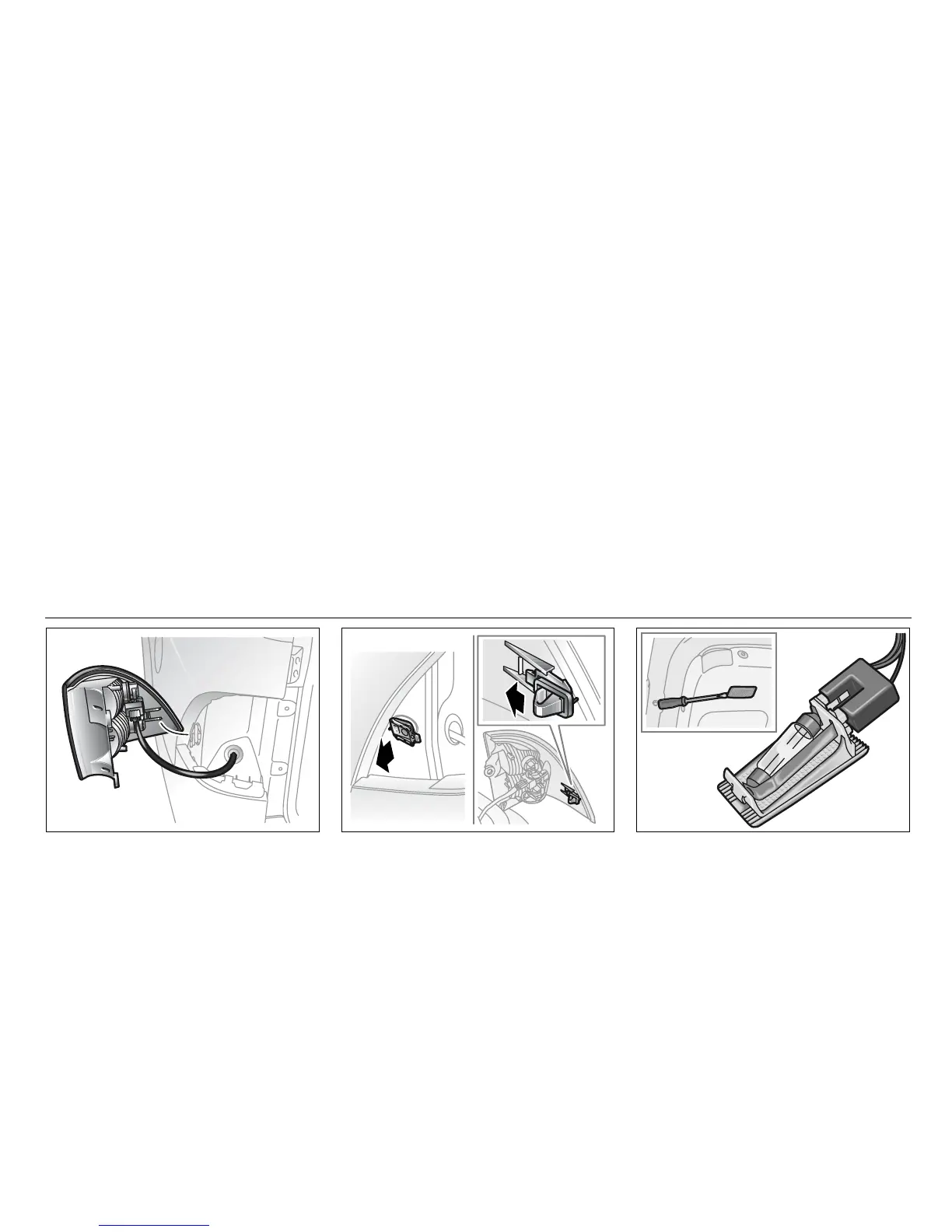

4 Pull the light cluster rearwards and
angle it outwards (it is seated quite
firmly).
5 Release the fastener from the body.
Reinsert the fastener into the groove in
the light cluster. Press in the fastener
until you hear a click.
6 Take out the bulb holder by twisting it
slightly counterclockwise.
7 Press in the bulb and twist it counter-
clockwise.
8 Change the bulb.
9 Check that the new bulb works.
Reassembly:
1 Align the fastener with the hole in the
body.
2 Press the lamp unit home into the body
until you hear a click.
3 Fit the screws and cover.
Loading lighting, 9-5 Wagon
1 Pull down the glass cover at the outer
edge.
2 Bend one of the contacts so that the bulb
can be removed.
3 Change the bulb.
On refitting, insert the connector-end of the
lamp fitting first.
IB1335
IB1919
IB1793
