Saab 2004 9-5 - Relays

230 Car care and technical information

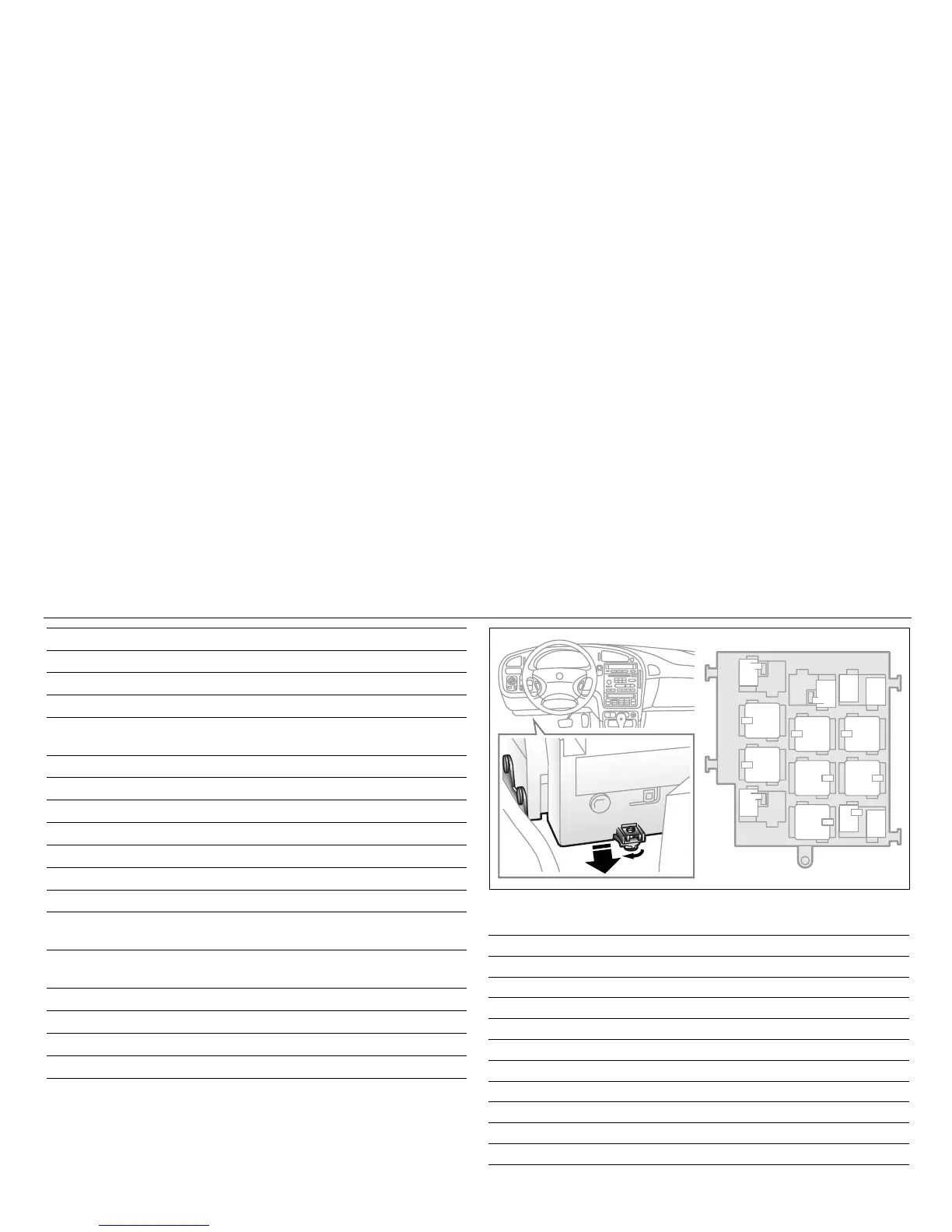

Relay panel under instrument panel
Relay panel under instrument panel (cont.)
27 10 Engine-management system; SID; main instrument
28 7.5 Airbag
29 7.5 ABS/TCS/ESP
30 7.5 Starter motor
31 7.5 Cruise control; water valve; fog lights, front; rain sen-
sor
32 15 Ventilated front seats
33 7.5 Direction-indicator switch
34 30 Cigarette lighter (front/rear)
35 15 Daytime running light
36 30 Electric windows, left
37 30 Windshield wipers
38 30 Electric heating, front seats
39 20 Limp-home solenoid (automatic transmission);
OnStar; telematics
# Function
A –
B Electric heating of rear seat
C1 –
C2 –
D –
E Main relay (engine management system)
F Fuel filler flap
G Fuel pump
H Ignition switch
I Rear-window / door mirrors heating
J–
KStarter relay
L1 Limp-home function
L2 Bootlid
IB1796
A
B
C1
C2
L2
L1
D
G
E
F
H
I
K
J
