222 Car care and technical information

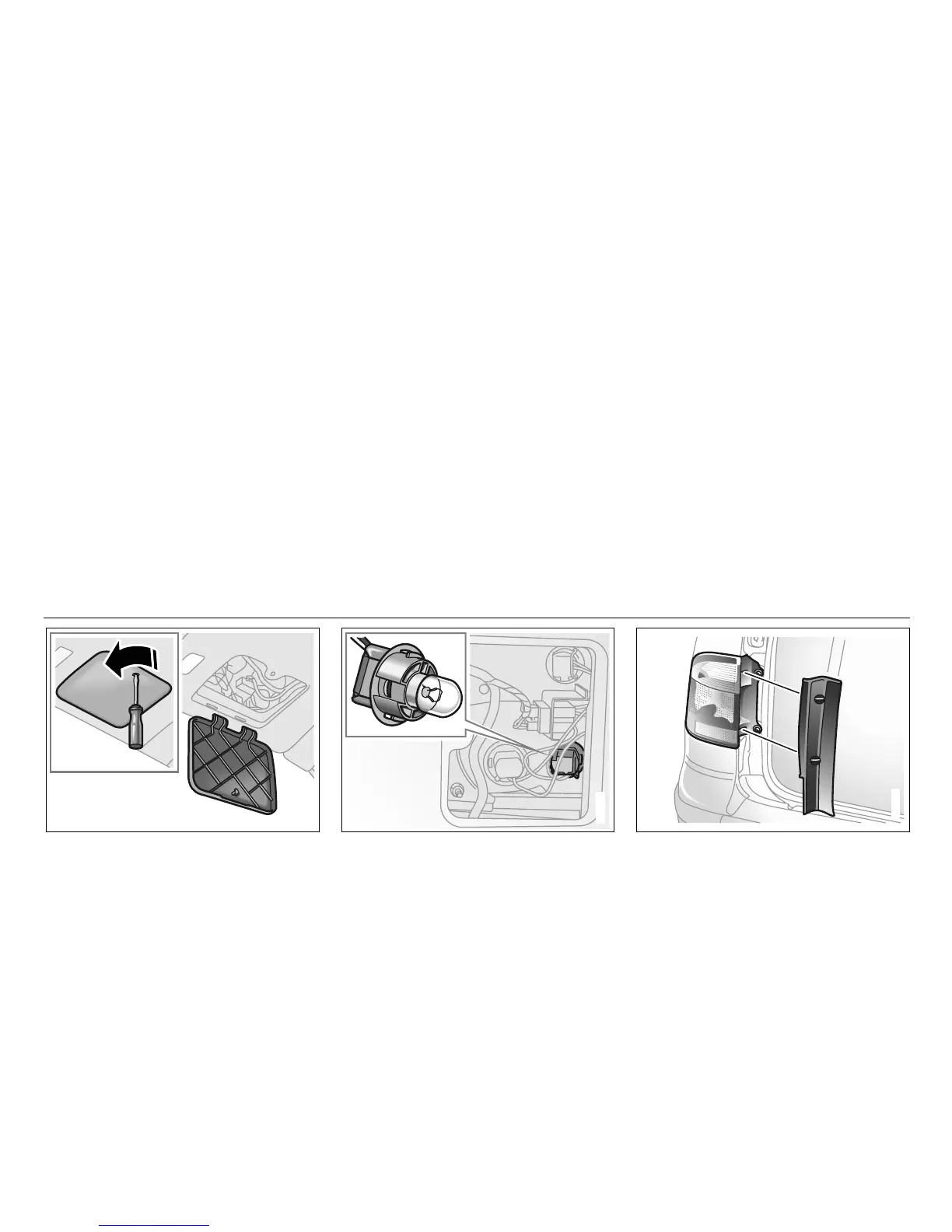

Tailgate bulbs, 9-5 Wagon
1 Turn the lock a quarter turn (90°) with a
screwdriver or the ignition key.
2 Open and remove the cover.
3 Take out the bulb holder by twisting it
slightly counterlockwise.
4 Press in the bulb and twist it
counterclockwise.
5 Change the bulb.
6 Check that the new bulb is working.
Reassembly:
1 Place the two ”hinges” in the recess in
the tailgate.
2 Then push the ”hinges” into the recess
and close the cover.
3 Turn the lock a quarter turn.
Rear lights clusters, 9-5 Wagon
1 Open the tailgate.
2 Remove the cover by turning the two
catches anticlockwise one quarter turn.
3 Remove the two screws securing the
light cluster to the body.
IB1228
IB1881
IB1227
