Sabre 1340GR - Page 67

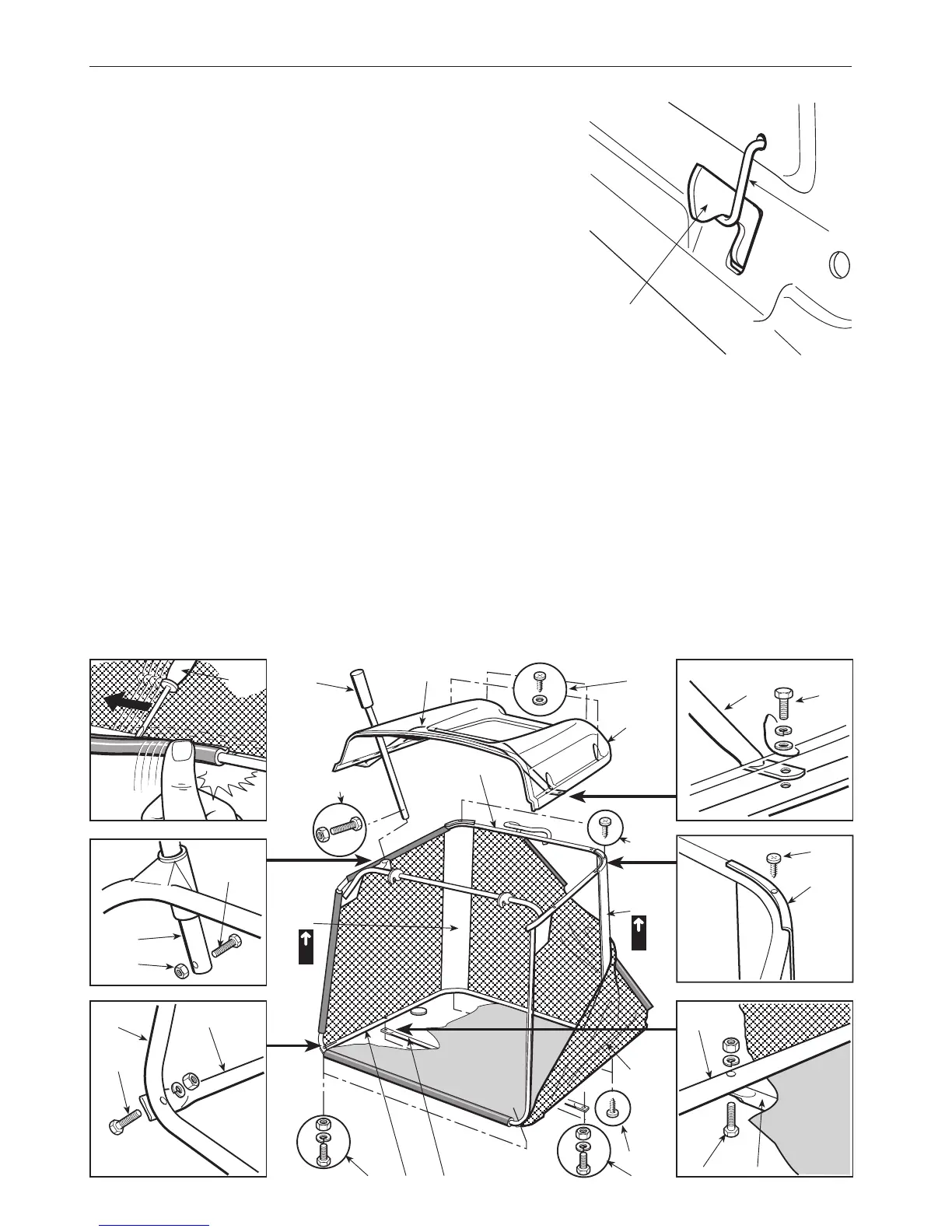

3.6 REMOVAL OF THE STOP FROM THE
HOOKING PAWL OF THE GRASS-CATCHER
For transport purposes, the pawl (1) hooking the
grass-catcher is held onto the rear plate by a stop
(2).
This stop must be removed before fitting the grass-
catcher brackets, and is not to be subsequently
used.
3.7 GRASS-CATCHER ASSEMBLY
The grass-catcher is assembled in four stages:
A) First of all assemble the frame, joining the upper part (1) to the lower part (2)
using the supplied screws and nuts (3) as shown. Position the angle plates (4)
