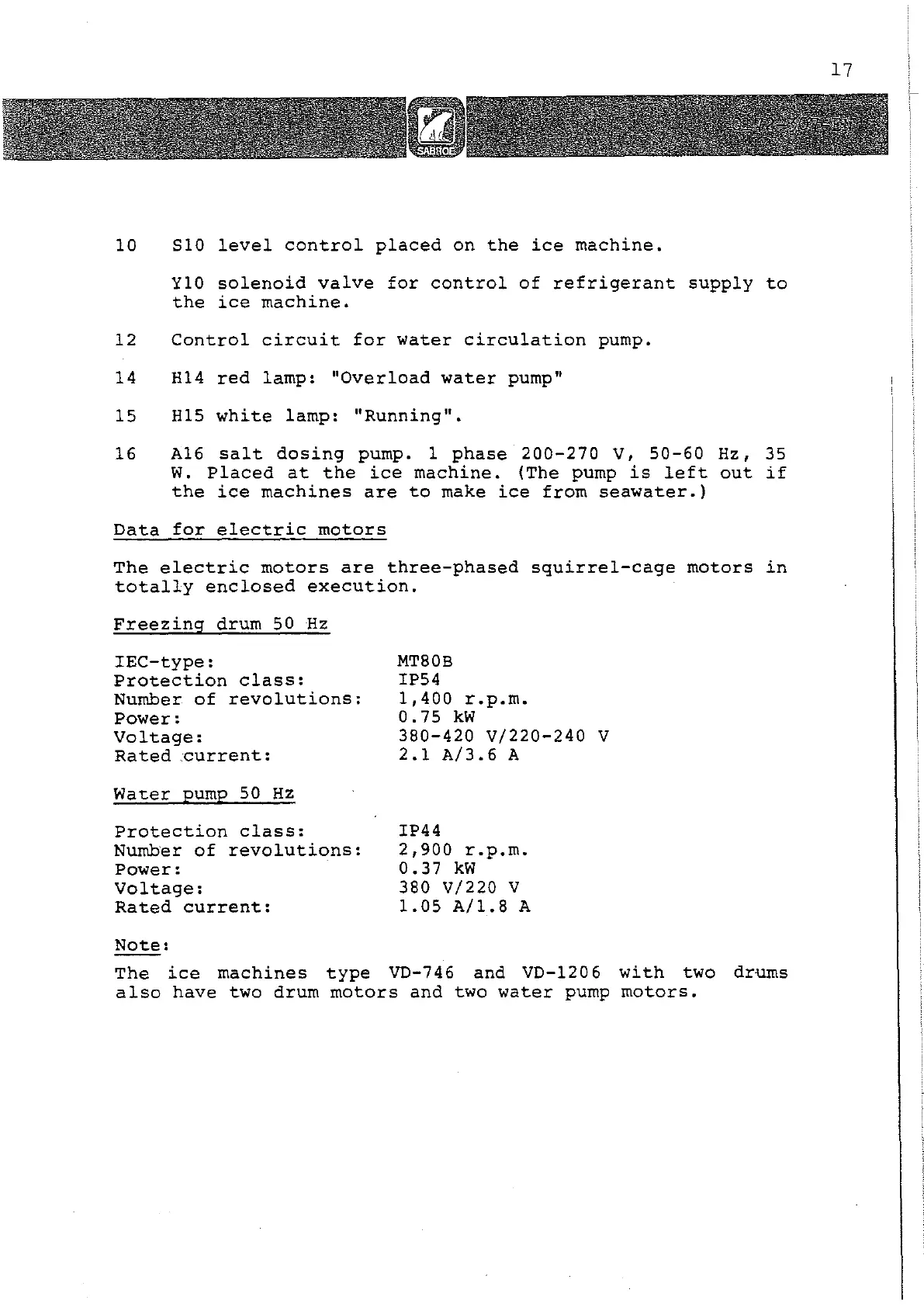

10 SID level control placed on the ice machine.
Y10 solenoid valve for control of refrigerant supply to
the ice machine.
12 Control circuit for water circulation pump.
14 H14 red lamp: "Overload water pump"
15 HIS white lamp: "Running".
16 A16 salt dosing pump. 1 phase 200-270 V, 50-60 Hz, 35
W. Placed at the ice machine. (The pump is left out if
the ice machines are to make ice from seawater.)
Data for electric motors
The electric motors are three-phased squirrel-cage motors in
total ly enclosed execution.
Freezing drum 50 Hz
lEC-type:
Protection class:
Number of revolutions:
Power:
Voltage:
Ra ted :current:
Water pump 50 Hz
Protection class:
Number of revolutions:
Power:
Voltage:
Rated current:
Note:
MT80B
lP54
1,400 r.p.m.
0.75 kW
380-420 V/220-240 V
2.1 A/3.6 A
lP44
2,900 r.p.m.
0.37 kW
380 V/220 V
1.05 A/1.8 A
The ice machines type VD-746 and VD-1206 with two drums
also have two drum motors and two water pump motors.
