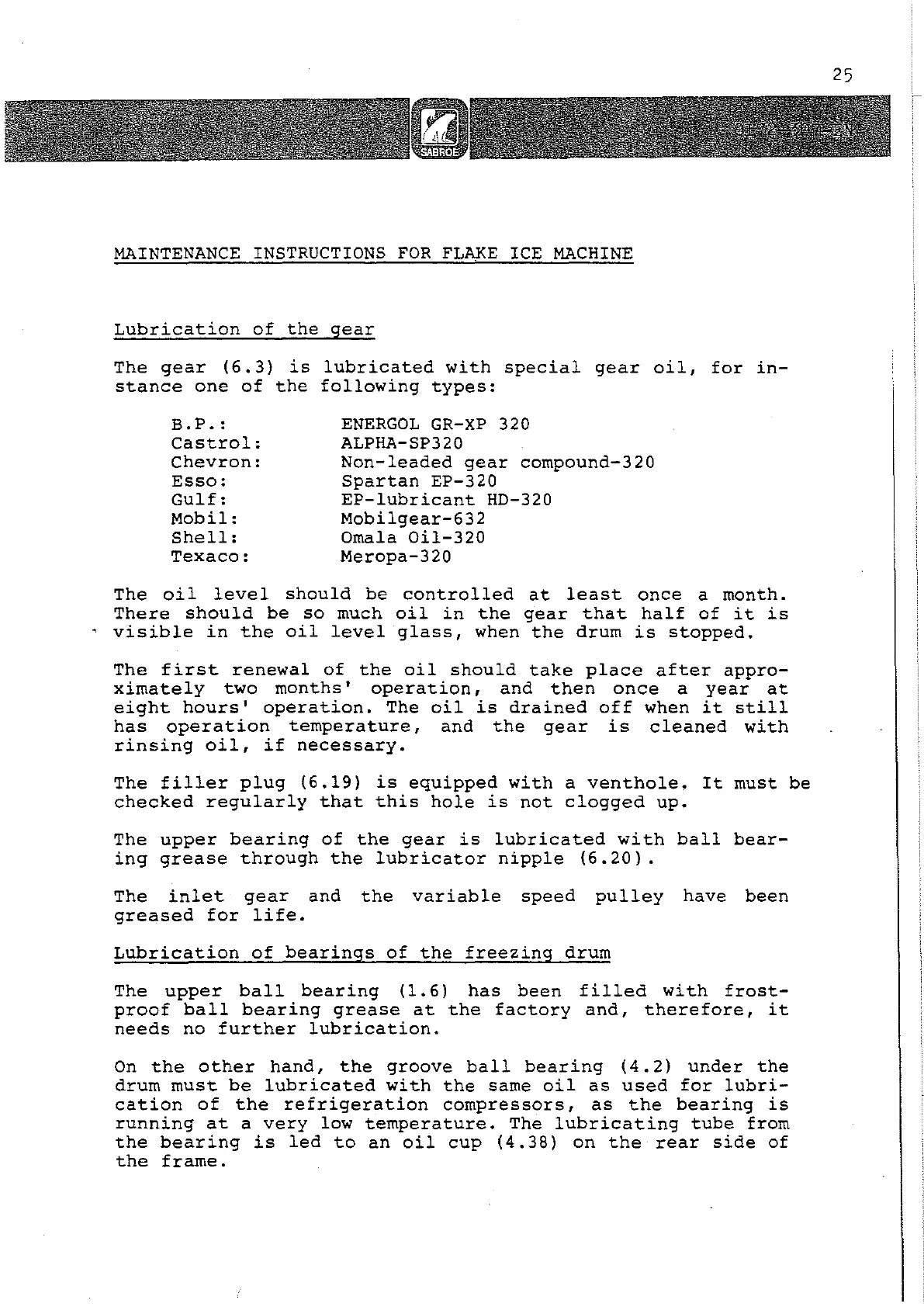

MAINTENANCE INSTRUCTIONS FOR FLAKE ICE MACHINE
Lubrication of the gear
The gear (6.3) is lubricated with special gear oil, for in-
stance one of the following types:
B.P.:
Castrol:
Chevron:
Esso:
Gulf:
Mobil :
Shell:
Texaco:
ENERGOL GR-XP 320
ALPHA-SP320
Non-leaded gear compound-320
Spartan EP-320
EP-lubricant HD-320
Mobilgear-632
Omala Oil-320
Meropa-320
The oil level should be control led at least once a month.
There should be so much oil in the gear that half of it is
visible in the oil level glass, when the drum is stopped.
The first renewal of the oil should take place af ter appro-
ximately two months' operation, and then once a year at
eight hours' operation. The oil is drained off when it still
has operation temperature , and the gear is cleaned with
rinsing oil, if necessary.
The filler plug (6.19) is equipped with a venthole. It must be
checked regularly that this hole is not clogged up.
The upper bearing of the gear is lubricated with ball bear-
ing grease through the lubricator nipple (6.20).
The in let gear and the variable speed pulley have been
greased for life.
Lubrication of bearings of the freezing drum
The upper ball bearing (1.6) has been filled with frost-
proof ball bearing grease at the factory and, therefore, it
needs no further lubrication.
On the other hand, the groove ball bearing (4.2) under the
drum must be lubricated with the same oil as used for lubri-
cation of the refrigeration compressors, as the bearing is
running at a very low temperature. The lubricating tube from
the bearing is led to an oil cup (4.38) on the re ar side of
the frame.
25
