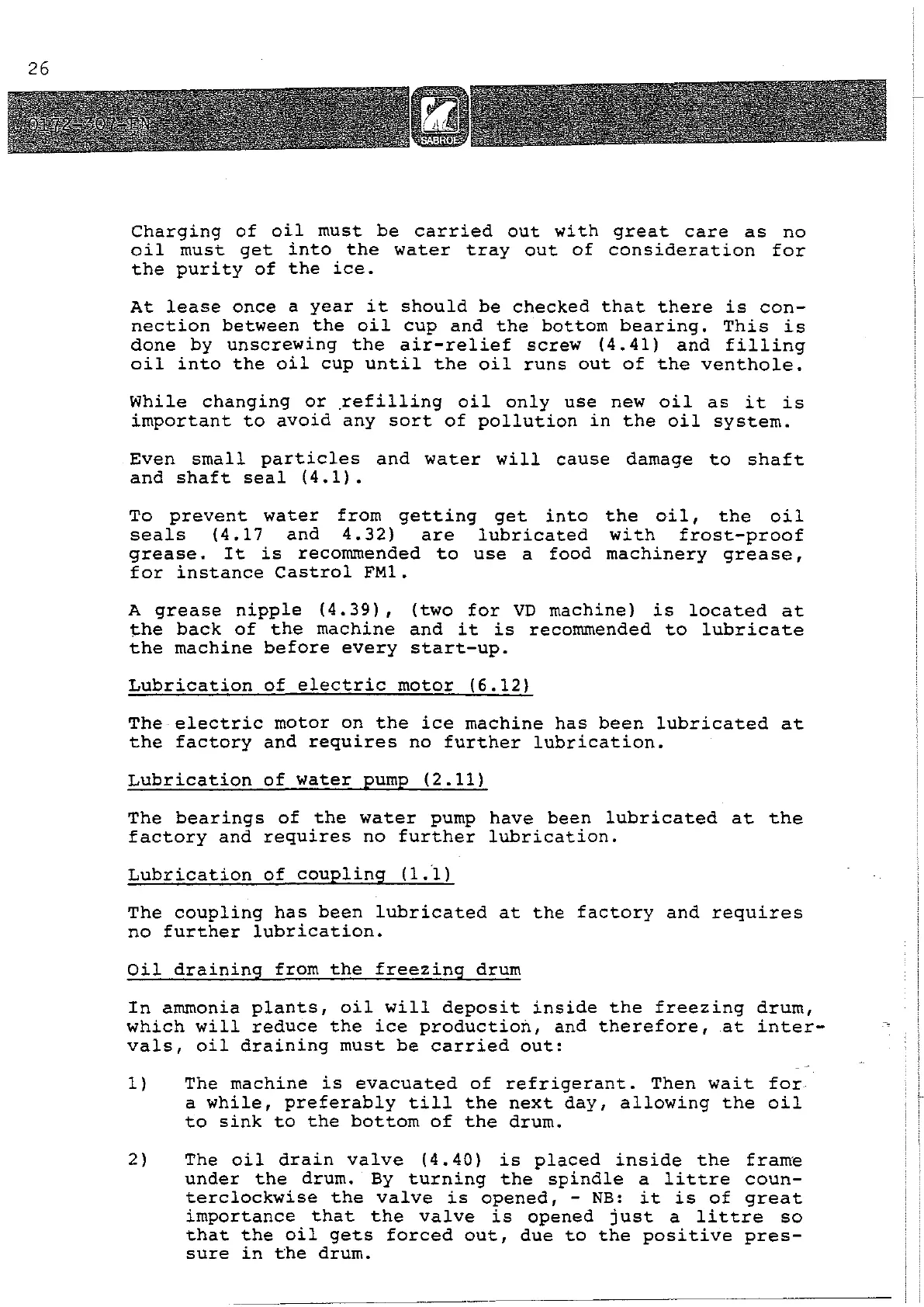

26
Charging of oil must be carried out wi th great care as no
oil must get into the water tray out of consideration for
the purity of the ice.
At lease once a year it should be checked that there is con-
nection between the oil cup and the bottom bearing. This is
done by unscrewing the air-relief screw (4.41) and filling
oil into the oil cup until the oil runs out of the venthole.
While changing or .refilling oil only use new oil as it is
important to avoid any sort of pollution in the oil system.
Even small particles and water will cause damage to shaft
and shaft seal (4.1).
To prevent water from getting get into
seals (4.17 and 4.32) are lubricated
grease. It is recommended to use a food
for instance Castrol FM1.
the oil, the oil
with frost-proof
machinery grease,
Agrease nipple (4.39),
the back of the machine
the machine before every
(two for VD machine) is located at
and it is recommended to lubricate
start-up.
Lubrication of electric motor (6.12)
The electric motor on the ice machine has been lubricated at
the factory and requires no further lubrication.
Lubrication of water pump (2.11)
The bearings of the water pump have been lubricated at the
factory and requires no further lubrication.
Lubrication of coupling (1.1)
The coupling has been lubricated at the factory and requires
no further lubrication.
Oil draining from the freezing drum
In ammonia plants, oil will deposit inside the freezing drum,
which will reduce the ice production, and therefore, at inter-
vals, oil draining must be carried out:
l) The machine is evacuated of refrigerant. Then wait for·
a while, preferably till the next day, allowing the oil
to sink to the bottom of the drum.
2) The oil drain valve (4.40) is placed inside the frame
under the drum. By turning the spindle a littre coun-
terclockwise the valve is opened, - NB: it is of great
importance that the valve is opened just a littre 50
that the oil gets forced out, due to the positive pres-
sure in the drum.
