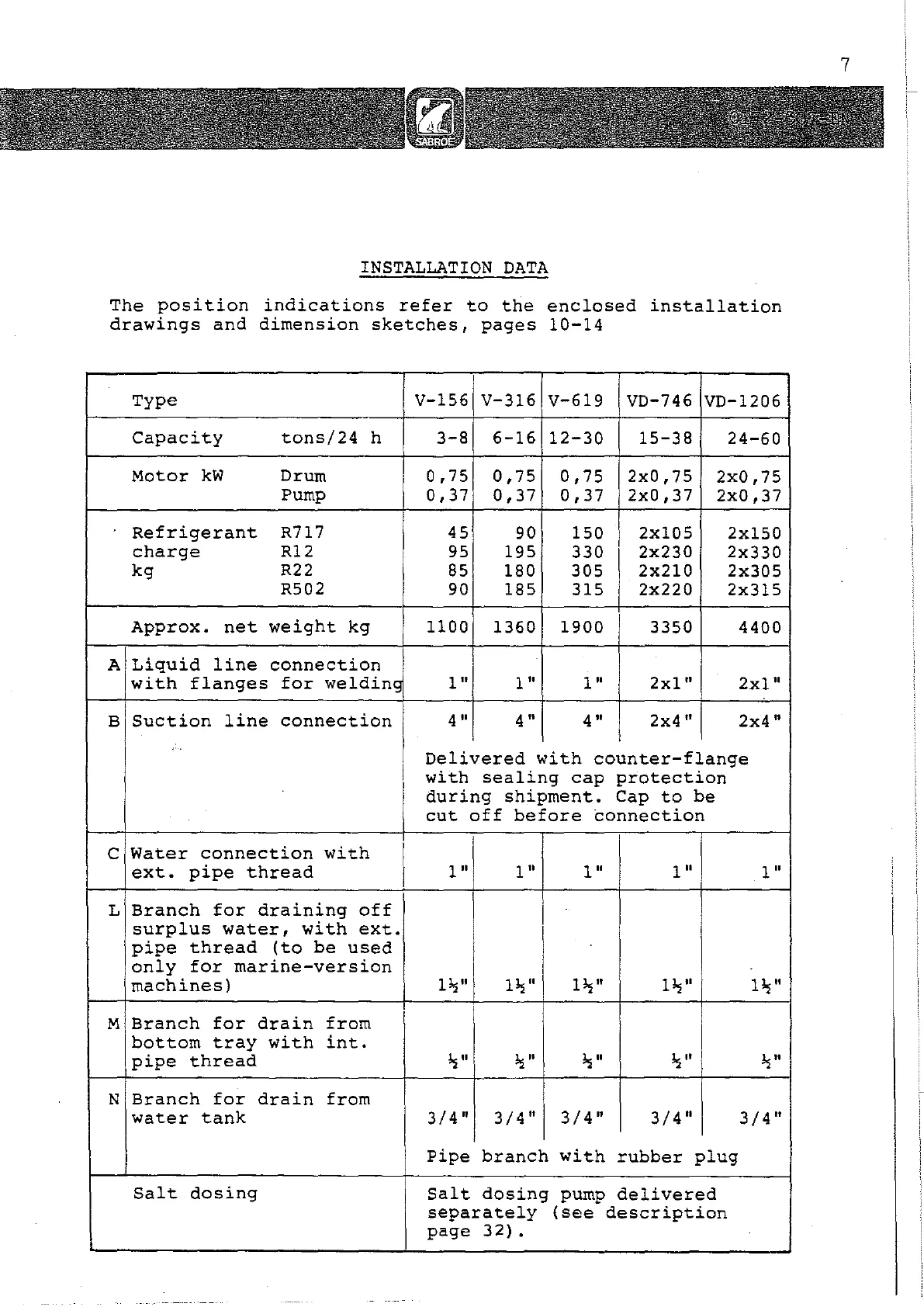

INSTALLATION DATA
The position indications refer to the enclosed installation
drawings and dimension sketches, pages 10-14
Type V-156 V-316 V-619
VD-746 VD-1206
Capacity
tons/24
h
3-8 6-16 12-30 15-38
24-60
Motor kW Drum 0,75 0,75
0,75 2xO,75 2xO,75
Pump 0,37
0,37 0,37 2xO,37 2xO,37
Refrigerant R717 45
90 150 2x105
2x150
charge
R12
95 195
330
2x230
2x330
kg
R22
85 180 305 2x210 2x305
R502
90 185 315
2x220 2x315
Approx. net
weight
kg 1100
1360
1900
3350
4400
A
Liquid line connection
with flanges for welding
1"
l" l" 2x1"
2x1"
B
Suction line connection 4" 4" 4"
2x4 "
2x4"
I
Delivered with counter-flange
with
sealing cap protection
during shipment. Cap to be
cut off before connection
C
Water connection with
I
ext. pipe thread
I
1" l" 1" l"
l"
L Branch for draining off
I
surplus water, with ext.
I
pipe thread (to be used
only for marine-version
machines)
l;'''
1~"
1~"
1~" 1~"
M Branch for drain
from
bottom tray with
int.
pipe thread
~"
~"
~"
~"
~"
N Branch for drain from
water tank
3/4" 3/4"
3/4"
3/4" 3/4"
Pipe branch with
rubber plug
Salt dosing
Salt dosing pump delivered
separate1y
(see description
page 32).
7
