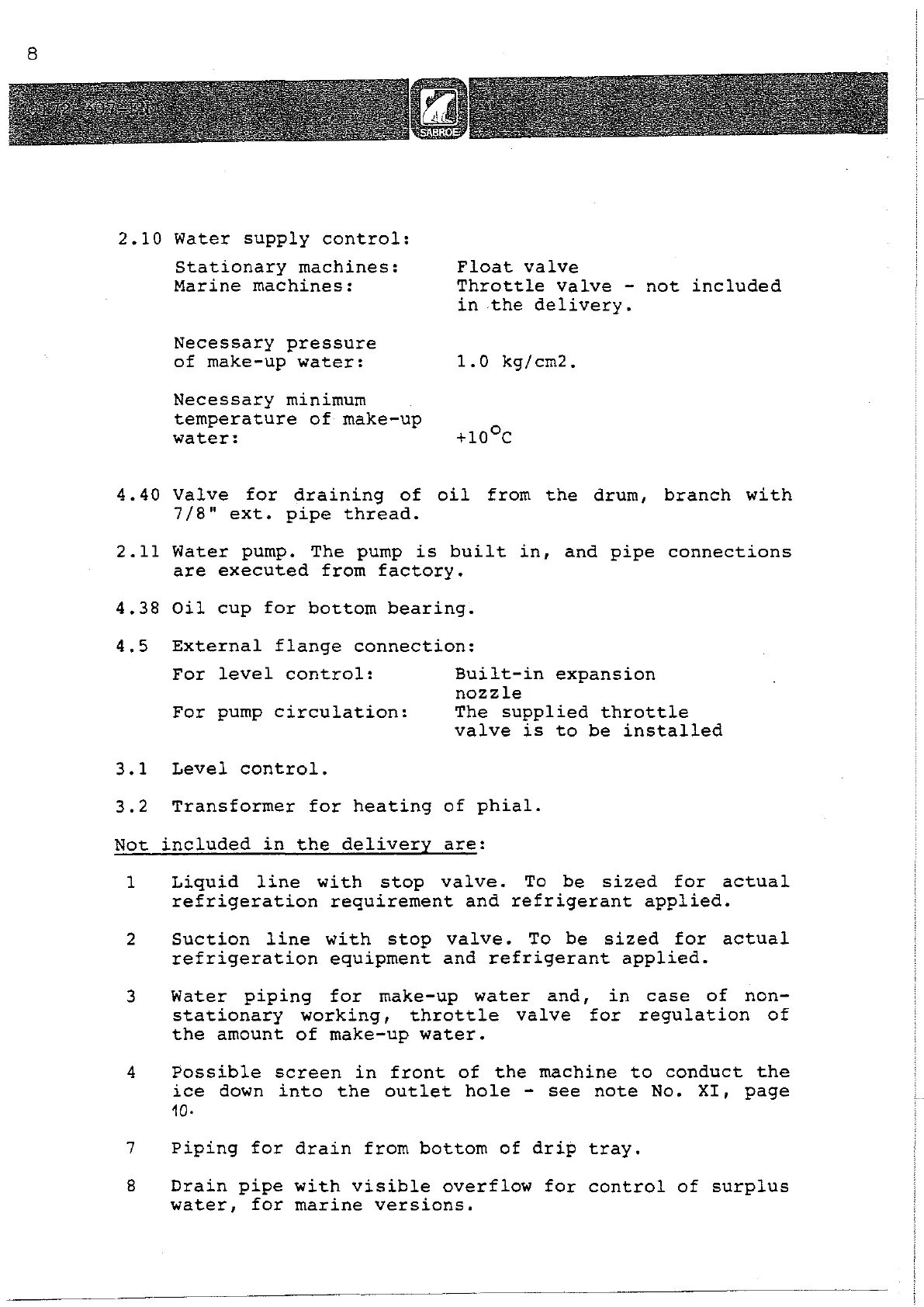

2.10 Water supply control:
Stationary machines:
Marine machines:
Necessary pressure
of make-up water:
Necessary minimum
temperature of make-up
water:
Float valve
Throttle valve - not included
inthe de1ivery.
1. O kg / cm2.
4.40 Valve for draining of oil from the drum, branch with
7/8" ext. pipe thread.
2.11 Water pump. The pump is built in, and pipe connections
are execute d from factory.
4.38 oil cup for bottom bearing.
4.5 External flange connection:
For level control:
For pump circulation:
3.1 Level control.
Built-in expansion
nozzle
The supplied throttle
valve is to be instalIed
3.2 Transformer for heating of phial.
Not included in the delivery are:
l Liquid line wi th stop val ve. To be sized for actual
refrigeration requirement and refrigerant applied.
2 Suction line with stop valve. To be sized for actual
refrigeration equipment and refrigerant applied.
3 Water piping for make-up water and, in case of non-
stationary working, throttle valve for regulation of
the amount of make-up water.
4 PossibIe screen in front of the machine to conduet the
ice down into the outlet hole - see note No. XI, page
10·
7 Piping for drain from bottom of drip tray.
8 Drain pipe with visible overflow for control of surplus
water, for marine versions.
