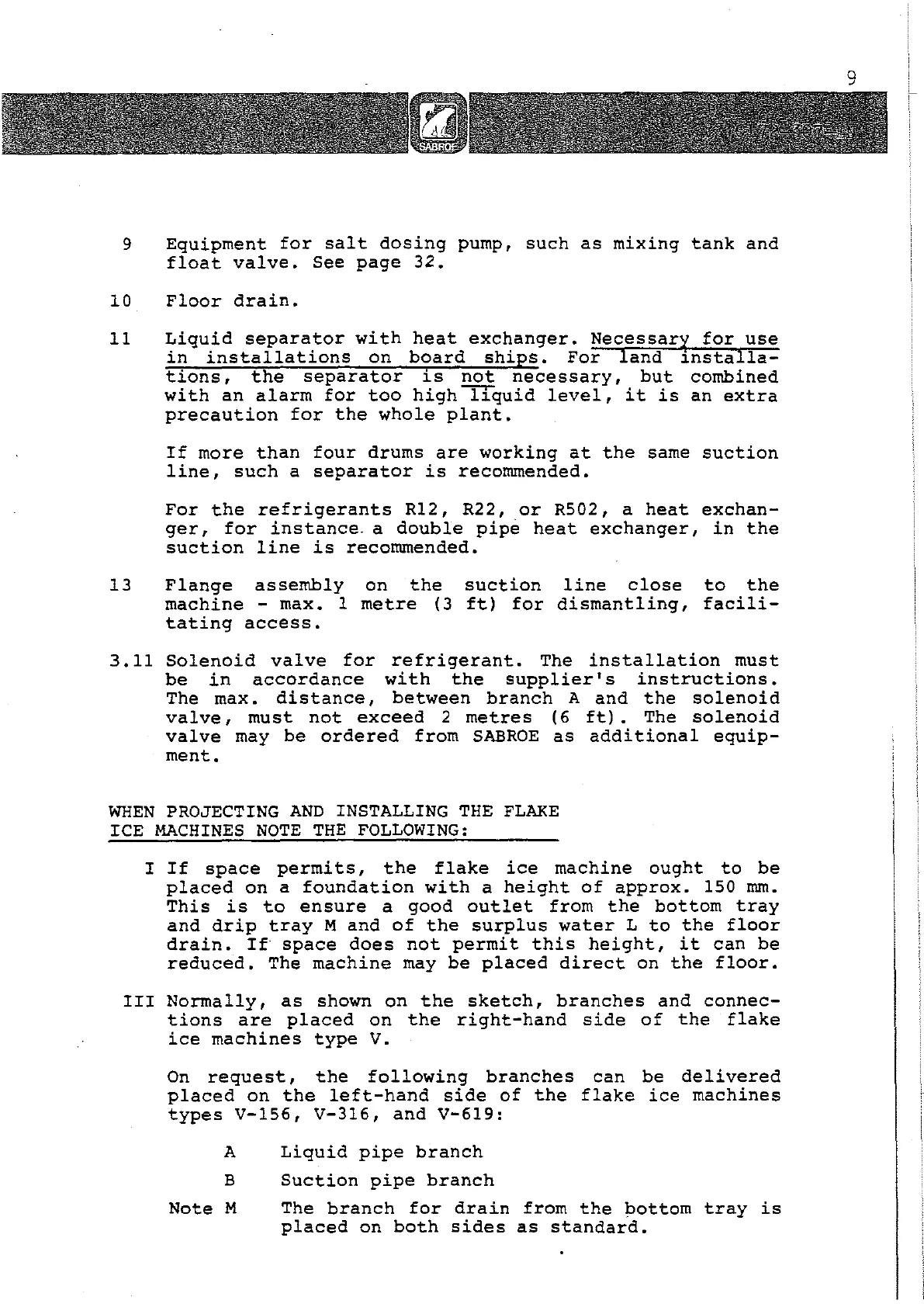

9 Equipment for salt dosing pump, such as mixing tank and
float valve. See page 32.
10 Floor drain.
11 Liquid separator with heat exchanger. Necessar~ for use
in installations on board ships. For land ~nstalla
tions, the separator is not necessary, but combined
with an alarm for too high liquid level, it is an extra
precaution for the whole plant.
If more than four drums are working at the same suction
line, such a separator is recommended.
For the refrigerants R12, R22, or RS02, a heat exchan-
ger, for instance. a double pipe heat exchanger, in the
suction line is recommended.
13 Flange assembly on the suction line close to the
machine - max. 1 metre (3 f t) for dismantling, facili-
tating access.
3.11 Solenoid valve for refrigerant. The installation must
be in accordance with the supplier's instructions.
The max. distance, between branch A and the solenoid
val ve, must not exceed 2 metres (6 f t) . The solenoid
valve may be ordered from SABROE as additional equip-
ment.
WHEN PROJECTING AND INSTALLING THE FLAKE
ICE MACH INES NOTE THE FOLLOWING:
I If space permits, the flake ice machine ought to be
placed on a foundation with a height of approx. 150 mm.
This is to ensure a good out let from the bottom tray
and drip tray M and of the surplus water L to the floor
drain. If space does not permit this height, it can be
reduced. The machine may be p1aced direct on the floor.
III Normally, as shown on the sketch, branches and connec-
tions are placed on the right-hand side of the flake
ice machines type V.
On request, the folIowing branches can be delivered
placed on the left-hand side of the flake ice machines
types V-1S6, V-316, and V-619:
A
B
Note M
Liquid pipe branch
Suction pipe branch
The branch for drain from the bottom tray is
placed on both sides as standard.
