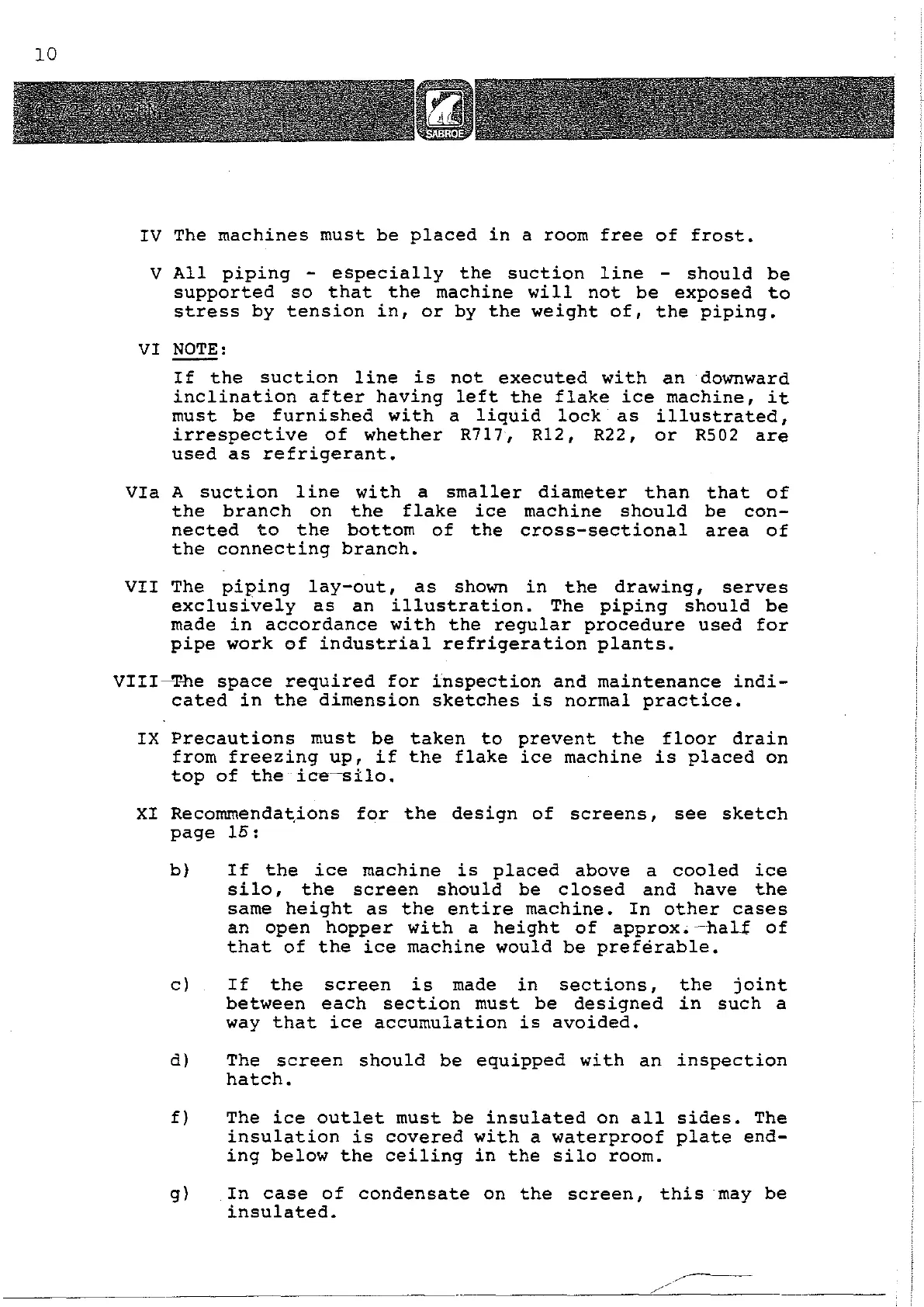

IV The machines must be placed in a room free of frost.
V All piping - especially the suction line - should be
supported so that the machine will not be exposed to
stress by tension in, or by the weight of, the piping.
VI NOTE:
If the suction line is not executed with an downward
inclination af ter having left the flake ice machine, it
must be furnished with a liquid lock as illustrated,
irrespective of whether R717, R12, R22, or R502 are
used as refrigerant.
VIa A suction line with a smaller diameter than that of
the branch on the flake ice machine should be con-
nected to the bottom of the cross-sectional area of
the connecting branch.
VII The piping lay-out, as shown in the drawing, serves
exclusively as an illustration. The piping should be
made in accordance with the regular procedure used for
pipe work of industrial refrigeration plants.
VIII-T-he space required for inspection and maintenance indi-
cated in the dimension sketches is normal practice.
IX Precautions must be taken to prevent the floor drain
from freezing up, if the flake ice machine is placed on
top of the i~e-silo.
XI Recommendat,ions for the design of screens , see sketch
page 15:
bl If the ice machine is placed above a cooled ice
silo, the screen should be closed and have the
same height as the entire machine. In other cases
an open hopper with a height of approx. --halt of
that of the ice machine would be preferable.
cl
If the screen is made in sections,
between each section must be designed
way that ice accumulation is avoided.
the joint
in such a
dl The screen should be equipped with an inspection
hatch.
fl The ice outlet must be insulated on all sides. The
insulation is covered with a waterproof plate end-
ing below the ceiling in the silo room.
gl In case of condensate on the screen, this may be
insulated.
