SABROE ATLAS V619 User Manual

37

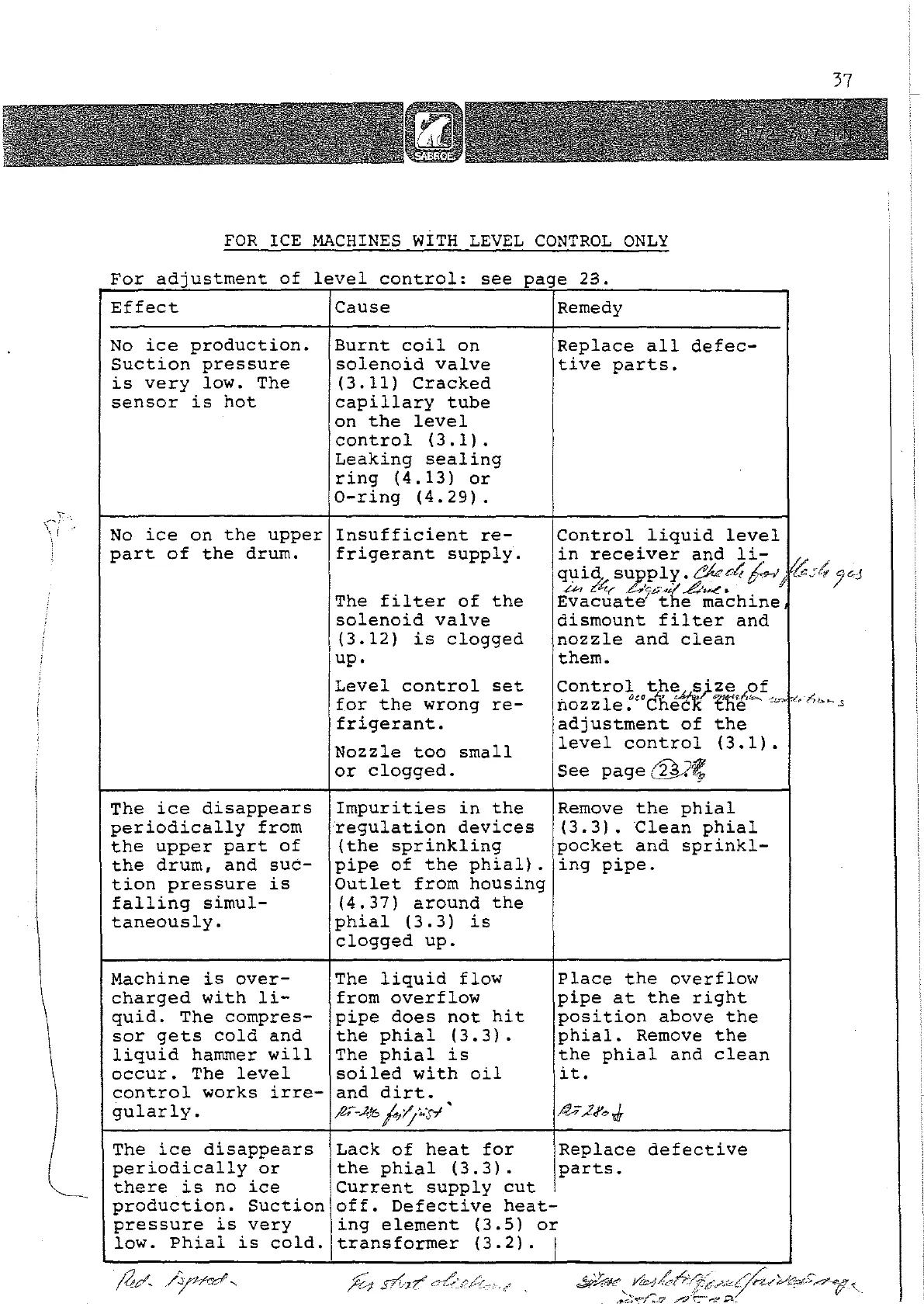

FOR ICE MACH INES WITH LEVEL CONTROL ONLY
For adjustment of level control: see page 23.
Effect
No ice production.
Suction pres sure
is very low. The
sensor is hot
Cause
Burnt coil on
solenoid valve
(3.11) Cracked
capillary tube
on the level
control (3.1).
Leaking sealing
ring (4.13) or
O-ring (4.29).
Remedy
Replace all defec-
tive parts.
No ice on the upper Insufficient re-
part of the drum. frigerant supply.
Control liquid level
in receiver and li-
qUilt supply. ~ct; 1<9-/;;' '&:Jt; ",,-,
The ice disappears
periodically from
the upper part of
the drum, and suc-
tion pres sure is
falling simul-
taneously.
Machine is over-
charge d with li-
quid. The compres-
sor gets co Id and
liquid hammer will
occur. The level
control works irre-
gularly.
The ice disappears
periodica11y or
there is no ice
production. Suction
pressure is ve ry
low. Phial is cold.
The filter of the
solenoid valve
(3.12) is clogged
up.
Level control set
for the wrong re-
frigerant.
Nozzle too small
or clogged.
Impurities in the
regulation device s
(the spr inkling
pipe of the phial).
Outlet from housing
(4.37) around the
phial (3.3) is
clogged up.
The liquid flow
from overflow
pipe does not hit
the phial (3.3).
The phial is
soiled with oil
and dirt.
,R4-~ r'/;"J7 '
Lack of heat for
..?h t:Z-f.(' ,j!:y1cp-..,;; .-e.'u.t!.. :7 ~ /-...)
Evacuatå the mach ine
dismount filter and
nozzle and clean
them.
Control the sjze of
nozzle :"cnm t'!1~'"' ~L'h'>_S
adjustment of the
level control (3.1).
See pagew.~
Remove the phial
(3.3). Clean phial
pocket and sprinkl-
ing pipe.
Place the overflow
pipe at the right
position above the
phial. Remove the
the phial and clean
it.
the phial (3.3).
Current supply cut
off. Defective heat-
ing element (3.5) or
transformer (3.2). I
Replace defective
parts.
