39

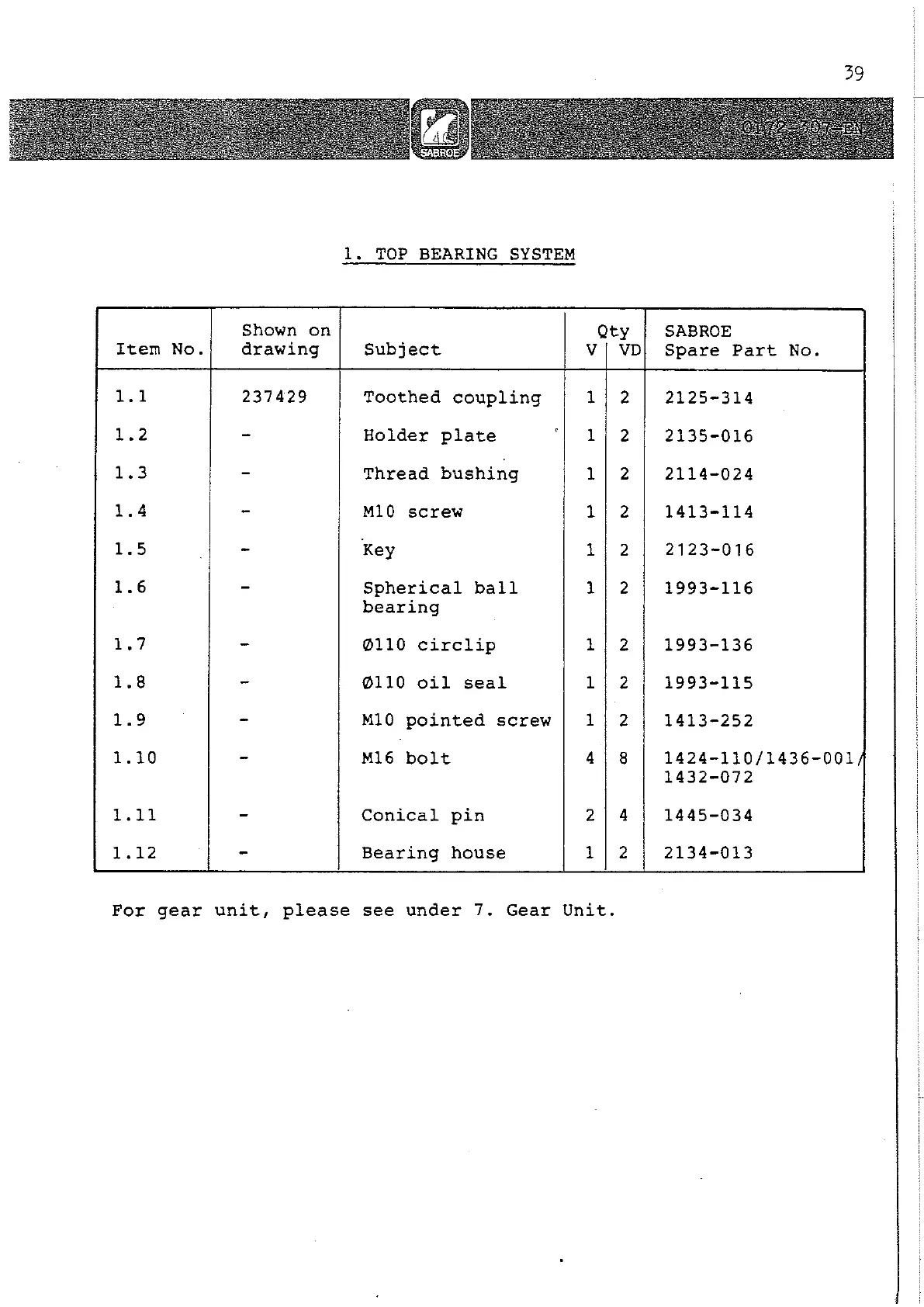

l. TOP BEARING SYSTEM
Shown on
Qty
SABROE
Item
No.
drawing Subject
V VD
Spare Part No.
1.1
237429
Toothed
coupling l 2 2125-314
1.2
-
Holder plate l
2
2l35-016
1.3
- Thread
bushing
l 2 2ll4-024
1.4
-
M10 screw
l 2 1413-114
1.5
-
Key l 2 2123-016
1.6
-
Spherical ball l 2 1993-116
bearing
1.7
-
Ø110
circlip
l
2 1993-136
1.8
-
Ø110 oil seal l
2 1993-115
1.9
-
M10
pointed screw
l
2 1413-252
1.10
-
M16
bolt
4
8
1424-ll O / 1436-00 l,
1432-072
1.ll
-
Conical
pin 2
4
1445-034
1.12
-
Bearing house l 2 2134-013
For gear unit, please see under 7. Gear Unit.
