Saebo MAS mini - Parts List

2
SaeboMAS mini Product Manual
MAS500(armhouder)deel3
WEIGHT:
A3
SHEET 1 OF 1 SCALE:1:5
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN
To decrease risk of bodily injury, please be sure to lower the Tension Indication Knob completely
until you feel a stop (knob parallel with bottom arrow) prior to opening or closing the SaeboMAS
mini (clipping or unclipping).
The SaeboMAS mini must be mounted to a sturdy table. The device should not be mounted to
unstable surfaces or tables on wheels. Do not mount to plastic tables.
Do not perform hand-to-mouth activities without the Elbow Support. The Elbow Support must be
attached. Without the Elbow Support attached, the Forearm Support may migrate distal (i.e., slip
downwards) towards the wrist. In some cases, the Forearm Support may slip completely off the
arm.
For some individuals, the Forearm Support may migrate distally (i.e., slip downwards) toward the
wrist during use. Add non-slip material, such as wafed shelf liner to minimize migration.

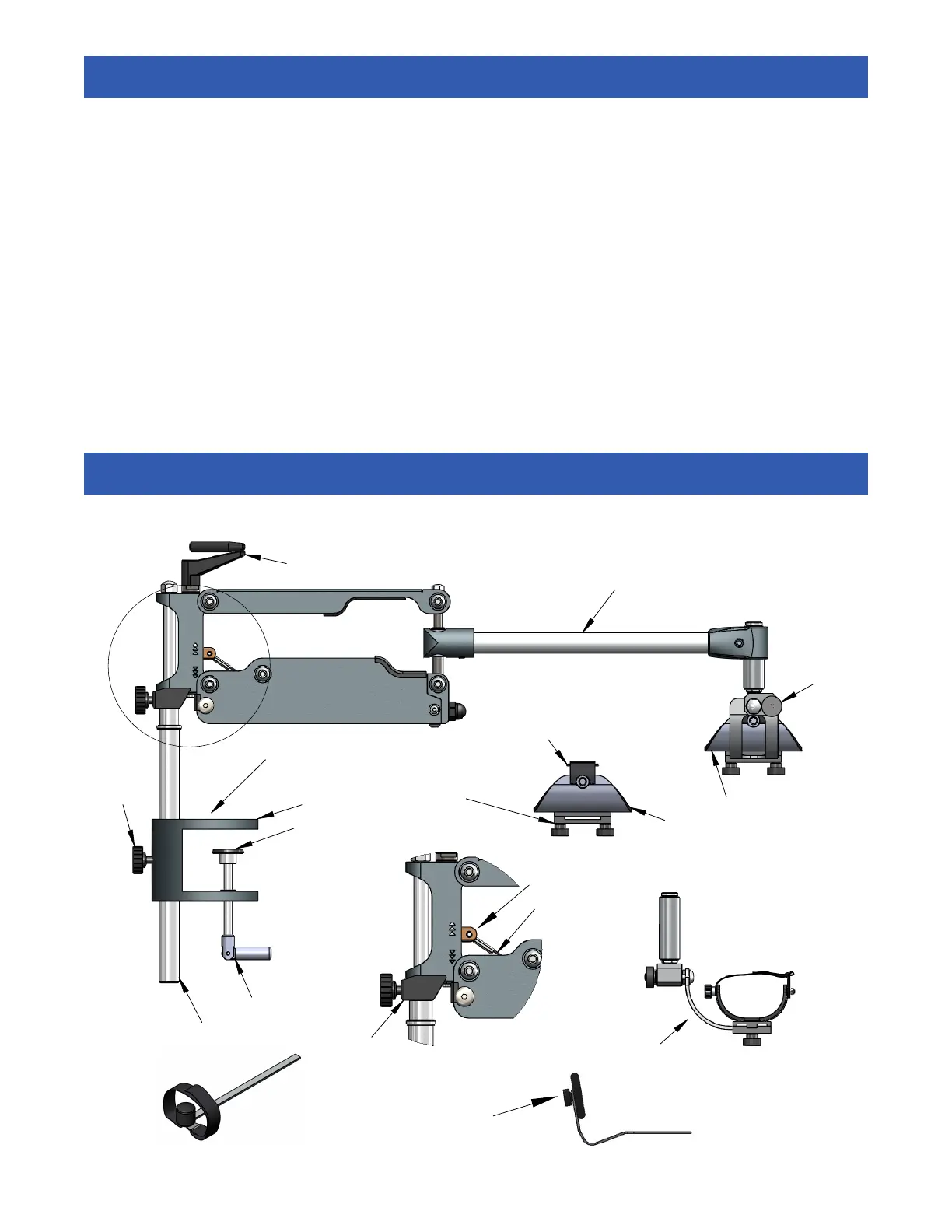

Parts List
Precautions
Forearm
Support
Lock
Horizontal Bar
Metal C-Clamp
Handle
Rubber Stop
Height
Adjustable
Knob
Vertical Bar
Tension Adjustable Handle
Forearm Support
Table Mount
Cable
Forearm
Liner
D-Ring
Elbow Support
Base
Forearm Base
Swivel Stop
Wrist Support
Elbow Support
Tension Indication Knob
