INTEGRA/-S/-G/-GS User Manual INSTALLATION
SAF Tehnika JSC

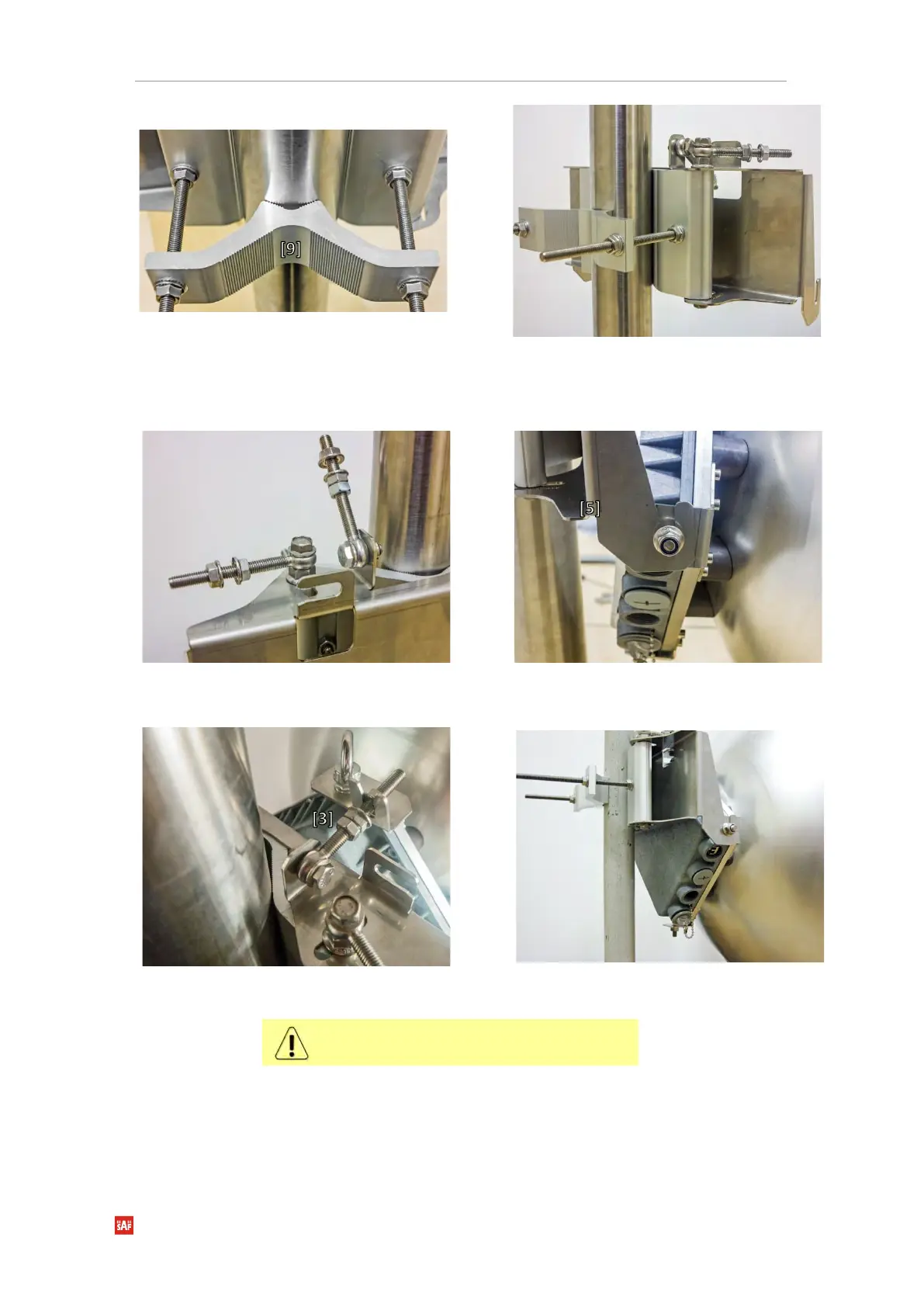

Hex flange nuts should be evenly aligned on
threaded bolts so that the mounting bracket
clamp [9] is tightly attached to the pipe. Tighten
hex flange nuts with torsion not exceeding 20
N·m.
View of the assembled mounting bracket on the mast
pole.
Make sure that both horizontal and vertical
alignment eye screws are turned to the mast
before attaching Integra/Integra-G FODU.
Attach Integra/Integra-G FODU with the antenna to the
mounting bracket so that side screws fit into the
grooves of the housing clamp [5].
Connect the vertical alignment eye screw [3] to
the upper groove on Integra/Integra-G housing.
View of the assembled bracket on the mast pole with
Integra/Integra-G FODU attached and secured.
It is recommended to protect the installed radio from
direct sunlight.
