INTEGRA/-S/-G/-GS User Manual INSTALLATION
SAF Tehnika JSC
When alignment is finished tighten screws
marked with red dots on the right side view of
the mounting bracket: hex flange nuts and
bolts of azimuth and elevation eye screws, right
side screw on Integra FODU, and hex flange
bolt on azimuth angle indicator with torsion
20...25 N·m.

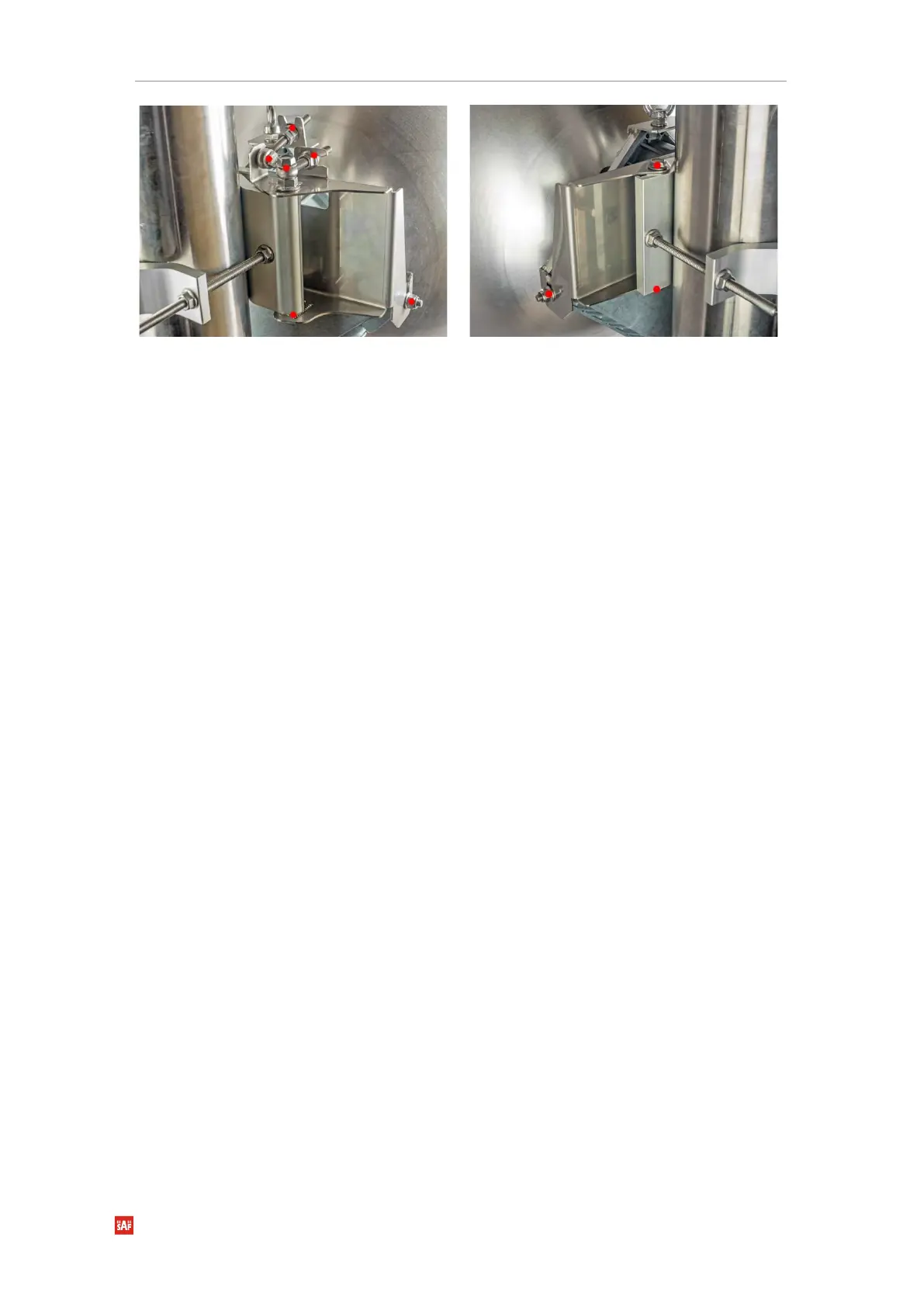

Additionally tighten the following screws
marked with red dots on the left side view of
the mounting bracket: the left side screw on
Integra/Integra-G FODU and two hex flange
bolts between both mounting bracket clamps
for housing and pipe with torsion 20...25 N·m.
