INTEGRA/-S/-G/-GS User Manual INSTALLATION
SAF Tehnika JSC
16
Integra-S/Integra-GS 15-42GHz* FODU: attaching to
the antenna

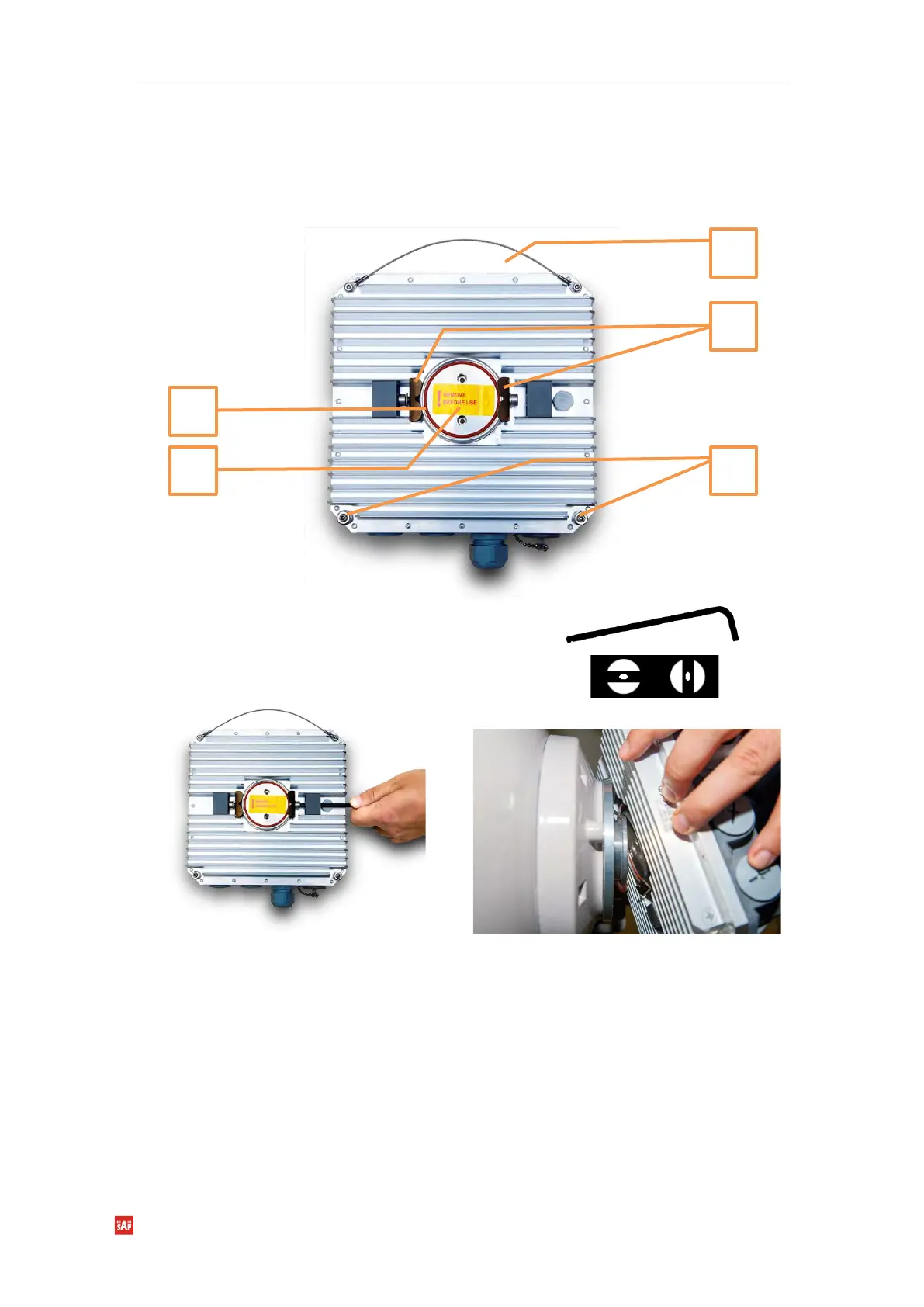

Parts of Integra-S/Integra-GS FODU: 1 – O-ring; 2 – flange protecting sticker; 3 – wire
handle; 4 – fixation clamps; 5 – grounding screws.
Tools required: Size 5 Allen wrench
Level (not supplied)
1
Using a size 5 allen wrench loosen one clamp
completely and the second clamp by a half-
turn.
2
Put Integra-S/Integra-GS on the antenna
adapter flange by hooking a half-turn
loosened clamp at the top and leaving the
completely loosened clamp at the bottom.
Make sure the O-ring is in place and the
adapter flange fits into the Integra-S/Integra-
GS transition flange socket.
Note! The protective sticker should be
removed before attaching the Integra-
S/Integra-GS FODU to the antenna.
3
4
1
2
5
