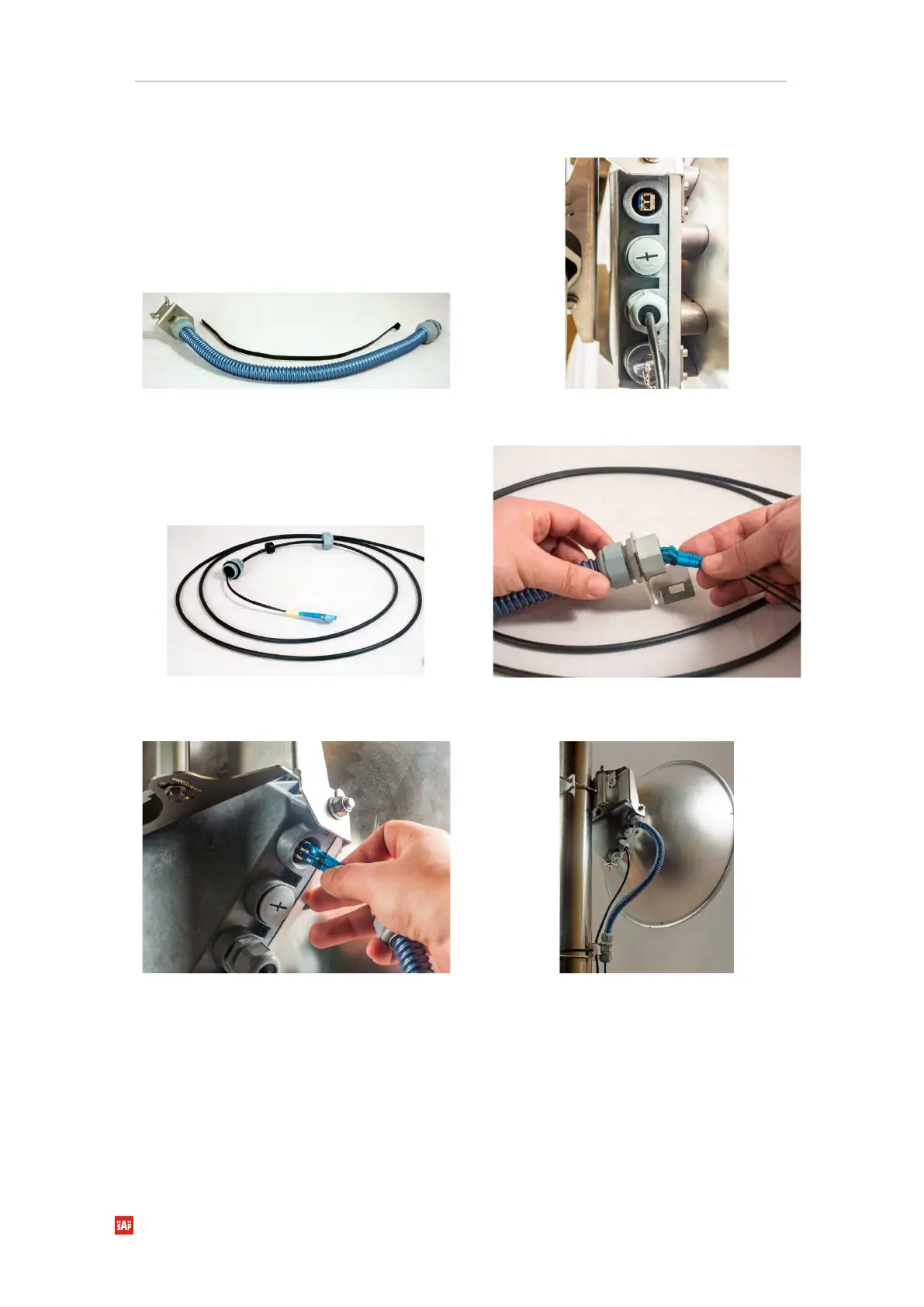

Connecting FO interface using fiber conduit kit
1
Fiber conduit kit.
2
Unscrew the cap of the SFP port (LAN2 or LAN3) that
will be used and install an SFP module.
3
Disassemble the conduit kit and put its parts in
the following sequence (left – FODU direction,
right – CPE direction).
4
Push the FO cable from the LC connector side through
the conduit.
5
Connect LC connector to SFP module.
6
Tighten parts on both ends of the conduit. Fasten
another end of the fiber conduit to the pole using
included tie-wrap. Assembled view.
