INTEGRA/-S/-G/-GS User Manual INSTALLATION
SAF Tehnika JSC

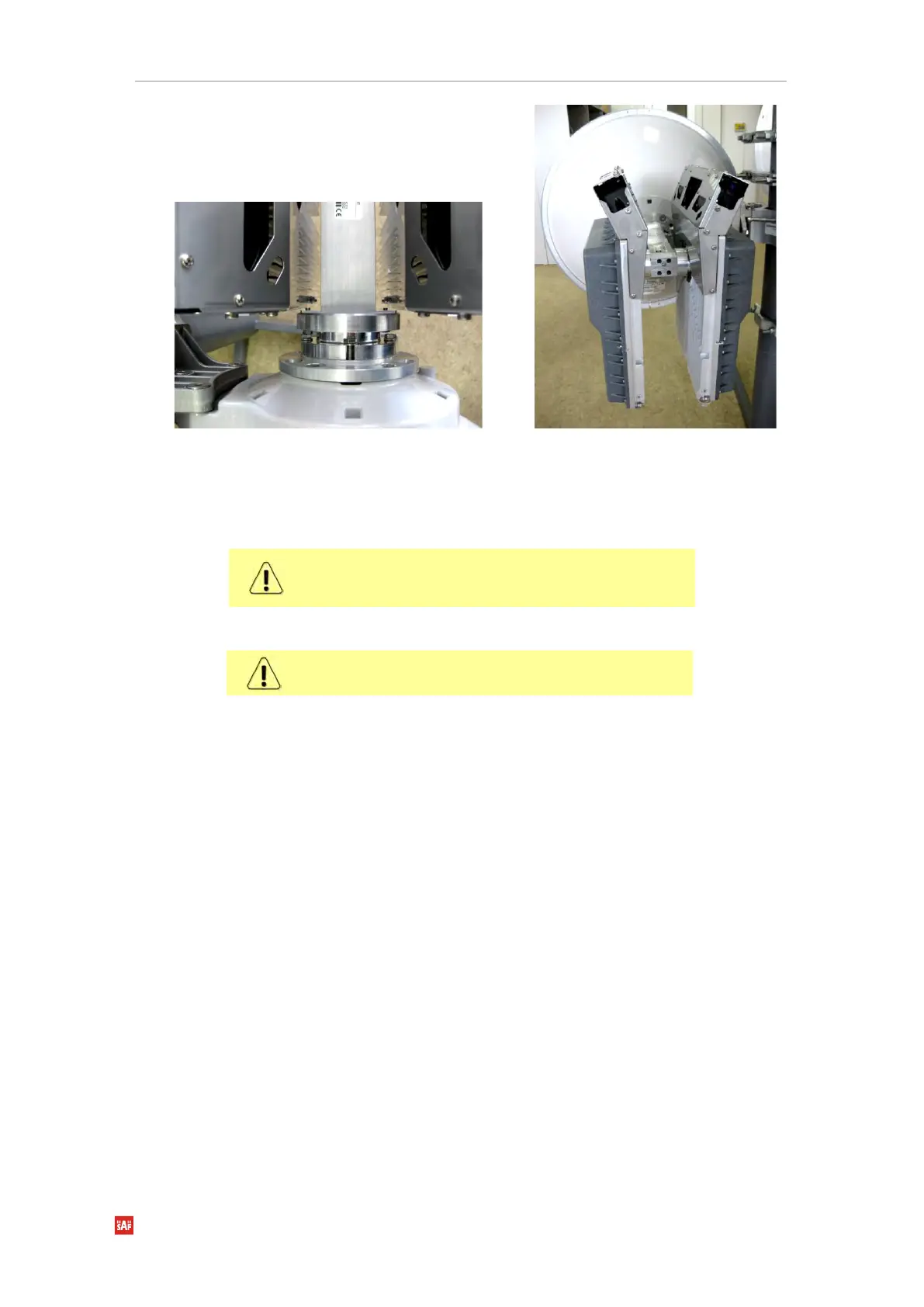

Tighten all 4 Integra-S/Integra-GS fixation
clamps on both FODUs. When properly
attached there’s a gap between FODUs, OMT,
and antenna.
Final view of assembled Integra-S/Integra-GS
6-13GHz* 2+0 setup.
* Integra-S/Integra-GS 6U/6L/7/8/10/11/13 are separate FODU models
For connecting Integra-S/-GS 15-42GHz to an OMT, please follow
the instructions in Chapter Integra-S/Integra-GS 15-42GHz*
FODU: attaching to the antenna
