INTEGRA/-S/-G/-GS User Manual WEB GUI
SAF Tehnika JSC

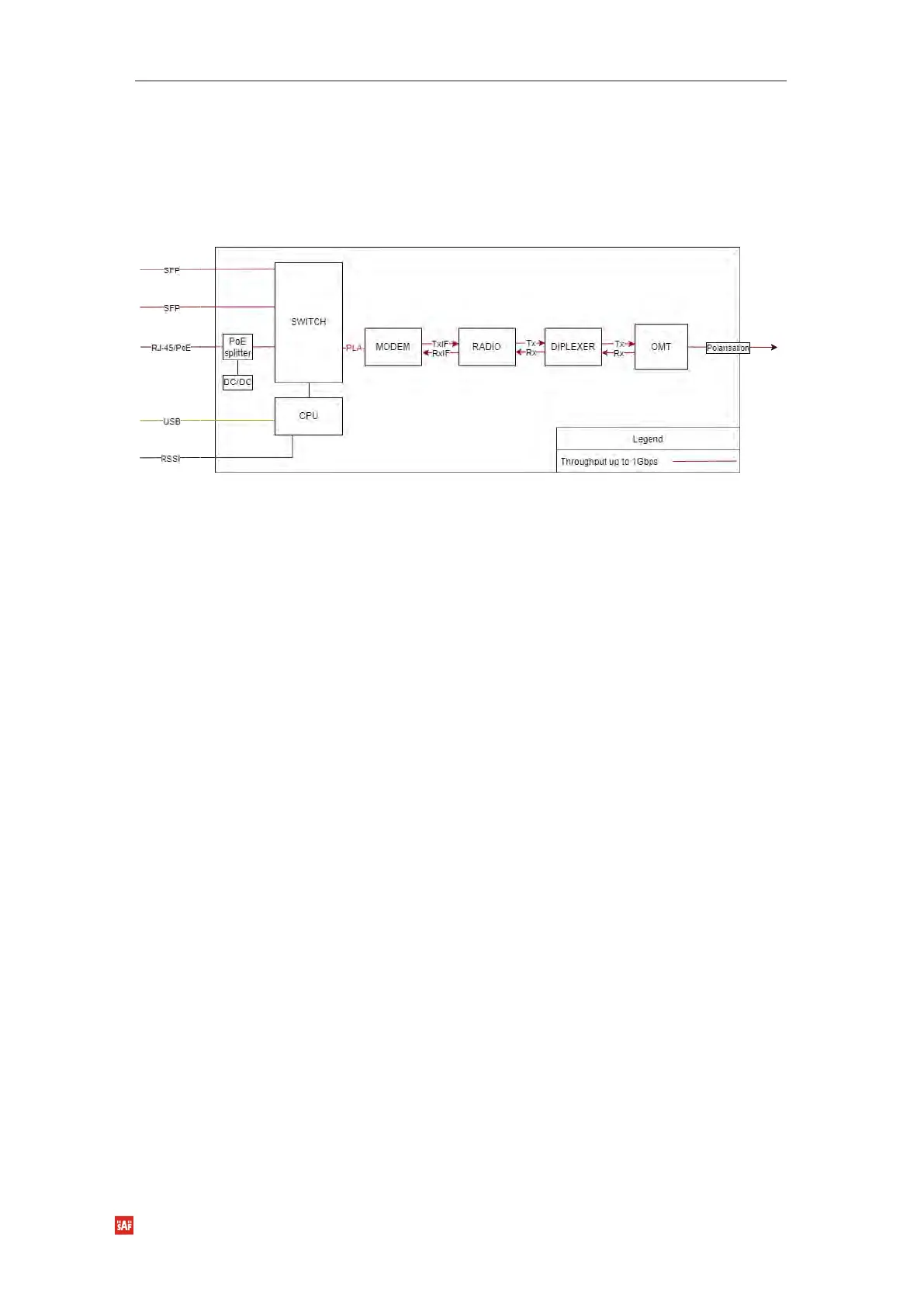

port that you need to use for powering Integra-G, please refer to Powering
Integra/Integra-S/Integra-G/Integra-GS FODU and connecting to PC for more
information, Error! Reference source not found. LAN2, and LAN3 SFP ports, please
refer to SFP ports to see the SFP compatibility. To get more information about other
interfaces, please refer to Chapter 8: INTERFACES section.
ACM (Adaptive Coding and Modulation) for further details) enables adaptive
modulation change according to Signal Quality value. Modulation indicates maximum
modulation, while the minimum is 4QAM.
12) ACM engine – shows the status of the ACM engine.
13) Acquire status – indicates the acquired status of the modem. During normal
operation, “Locked” will be shown.
14) MSE – shows Mean squared error value lower value means better signal quality.
15) FEC load – shows the load of Forward Error Correction.
16) Current Rx modulation – current received signal modulation.
17) Current Tx modulation – current transmitted signal modulation.
18) Current Rx Ethernet capacity – ingress capacity of the WAN port, depends on current
Rx modulation and bandwidth.
19) Current Tx Ethernet capacity – egress capacity of the WAN port, depends on current
Tx modulation and bandwidth.
20) Port – Name and interface type of the Ethernet port, RJ-45 or SFP/SFP+.
21) State – Ethernet port state – Enabled or Disabled. An exclamation mark designates
the restricted state of the port. Move the mouse pointer over the icon to see the
explanation.
22) Status – Ethernet port status, up or down (if the port is enabled).
