Car lift installation, operation and maintenance manual Type：4SF-4000C
5
INTRODUCTION
2.1 Product description：
A
：
Four parking lift is composed of a main side column, beam, bridge, bridge, safety mechanism, hydraulic cylinder, power unit, control box
(optional) and other major components.
B
：
The power unit is switched on, the gear pump operation, promote the hydraulic oil cylinder piston rod, wire rope driven mobile cylinder
movement process, because the steel wire rope traction between bridge decks and beams, so as to realize the lift up and down movement, and then
achieve the purpose of lifting.
C
：
The insurance agency safety lock block in each process will automatically rise and bite the column within the rack together, make sure not
because the hydraulic system failure caused by falling.

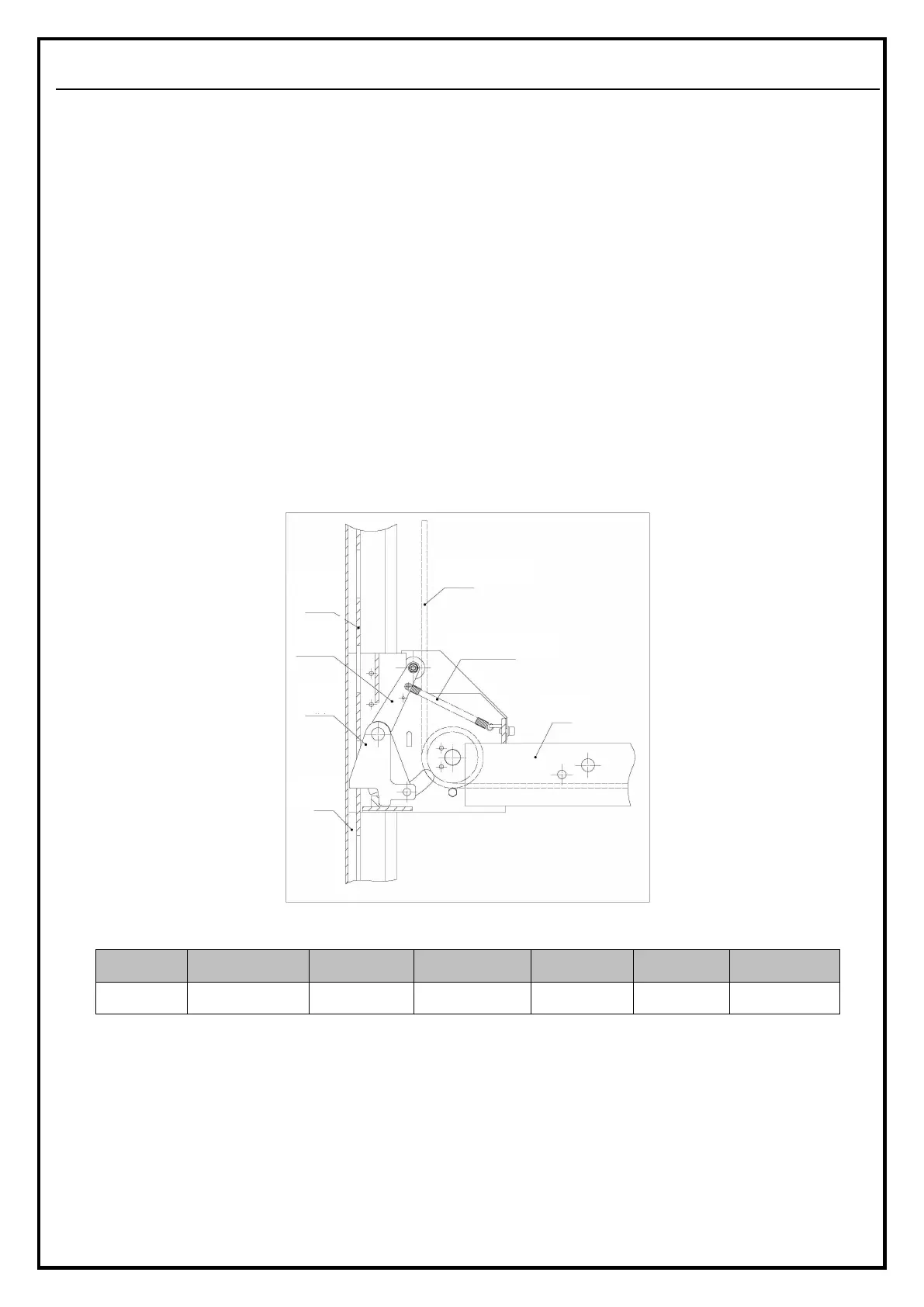

Security structure diagram：
2.2Technical parameter
2.3Main structure of the machine
Cable break safety spring
