SAGEMCOM F@ST 3896 SUM User Manual

LED State Description
Power
On DC power present
Off No DC power
Downstream
Off No DOCSIS connection
Amber DOCSIS 3.0 up
Green DOCSIS 3.1 up
Upstream
On No DOCSIS connection
Amber DOCSIS 3.0 up
Green DOCSIS 3.1 up
Online
On Internet connection available
Off Internet connection unavailable
WLAN 2.4 GHz
On 2.4 GHz radio active
Off 2.4 GHz radio disabled
WLAN 5 GHz
On 5 GHz radio active
Off 5 GHz radio disabled
WPS
On WPS active
Off WPS not active
TEL 1
On Enabled and phone connected
Off Line disabled or no phone connected
TEL 2
On Enabled and phone connected
Off Line disabled or no phone connected
LAN
On Link up on LAN interface
Off Link down on LAN interface
MOCA
On MoCA interface is active
Off MoCA interface is disabled
Resetting the F@ST 3896 SUM
Your residential gateway is equipped with a reset
button reachable with a paper clip or the tip of a pen.
To restart the device, press the reset button for less
than 2 seconds.
To restore the device to factory configuration, press the
reset button for 5 seconds or longer before releasing.
The residential gateway will then restart and perform
the initialization sequence. Note that the unit may
take several minutes to become online after a factory
reset is performed.

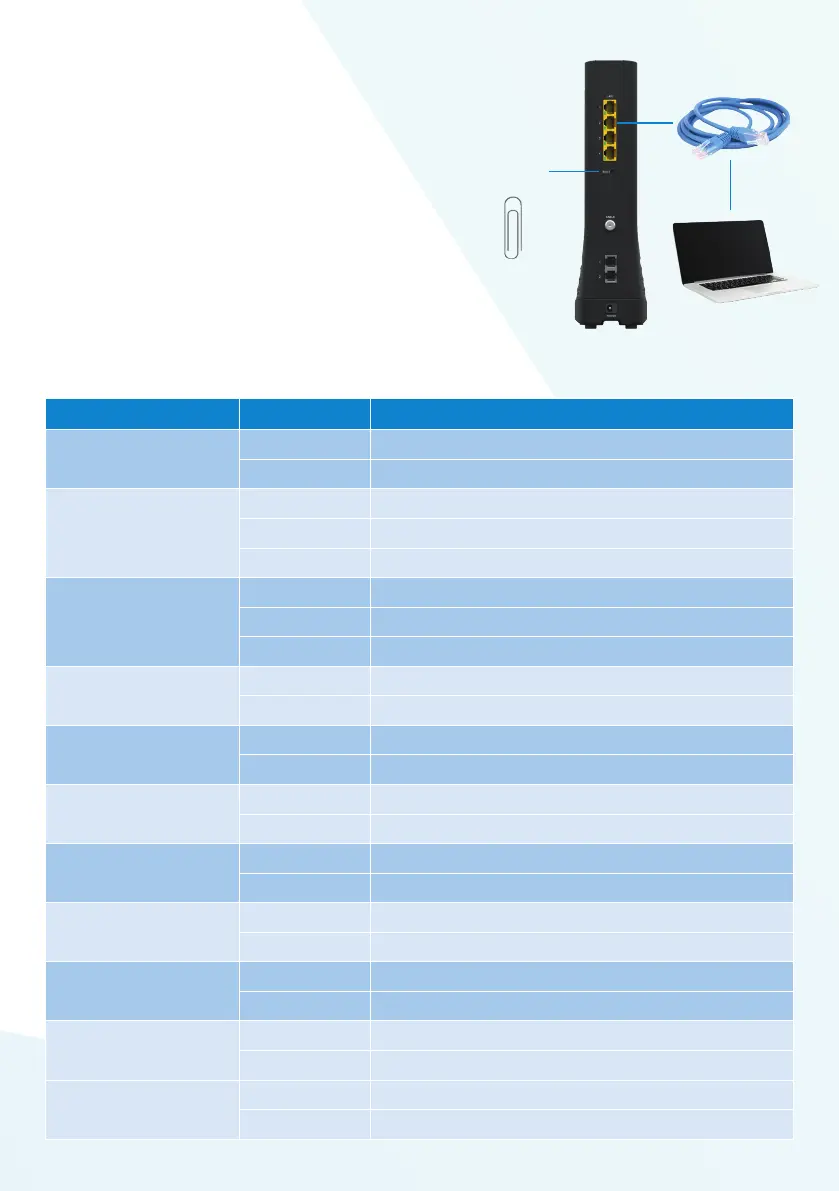

FRONT PANEL LED DESCRIPTION
Reset
button
Ethernet cable
Cat-5e or better

SAGEMCOM F@ST 3896 SUM Specifications

General

Brand	SAGEMCOM
Model	F@ST 3896 SUM
Category	Gateway
Language	English
