Operating instructions Concept PDG 2906 peristaltic dosing pump
35 / 44

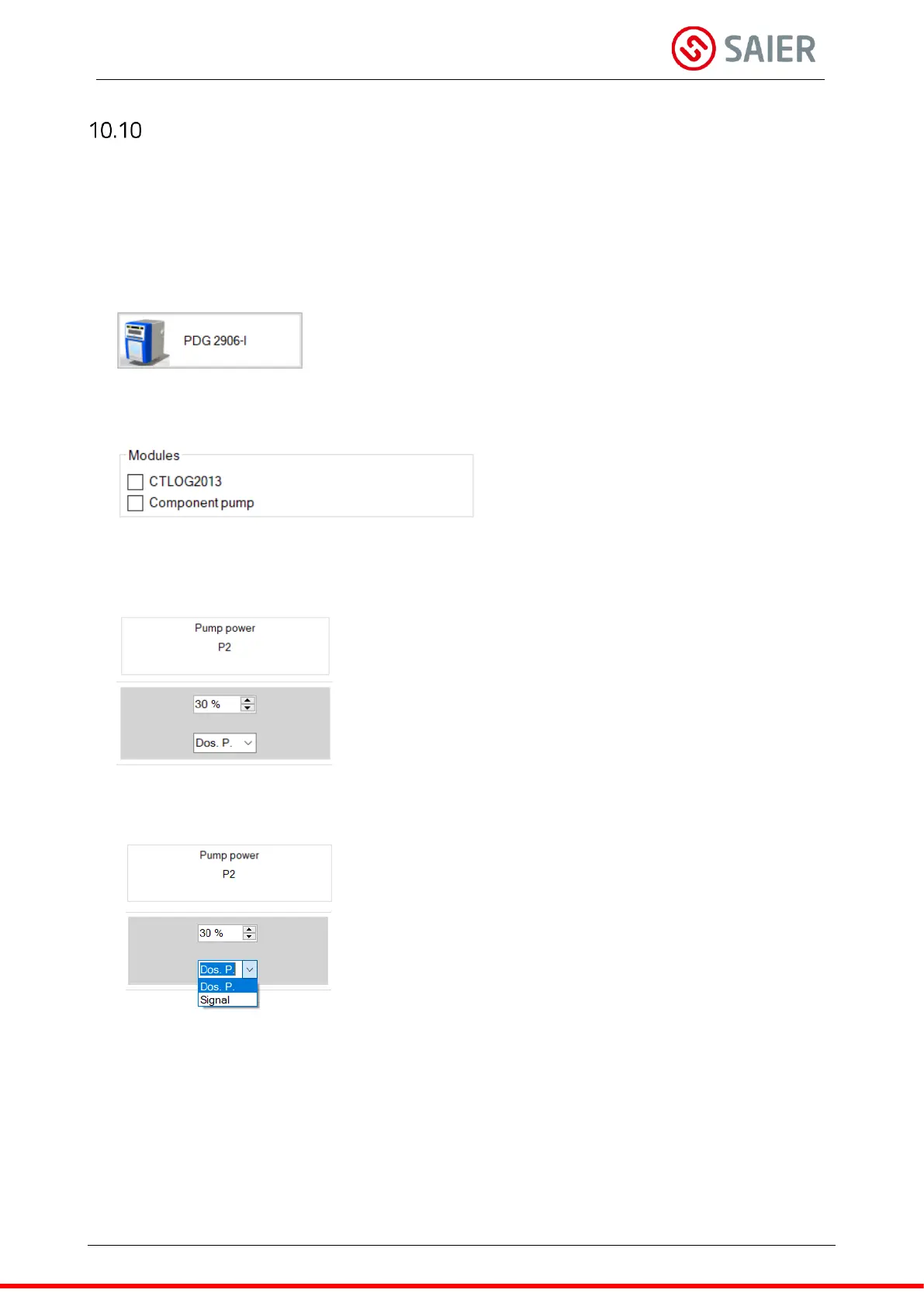

Configuration of Concept 2105 additional pump
1. Connect PC to PDG 2906-I (via WLAN or via USB interface using the Saier data transfer
adapter).
2. Start SSC software.
3. Select PDG 2906-I.
4. Click on “Component pump”.
 The additional pump is registered.
5. Set flow rate of additional pump.
6. Select operating mode parallel operation or direct operation.
Dos. P. = Parallel operation
Signal = Direct operation
7. Save settings.
8. Make further settings as described in Concept 2105 operating manual.
The additional pump is configured.
