Sailor HC4500B User Manual

Installation
Compass safe distance
Compass safe distance in accordance with ISO/R 694 are given below in metres.
Unit Standard Steering
5.4°/H 18°/H
Control Unit 1.2 0.5
Handset 0.3 0.2
Cradle 1.1 0.7
LS4970 Loudspeaker 2.2 1.6

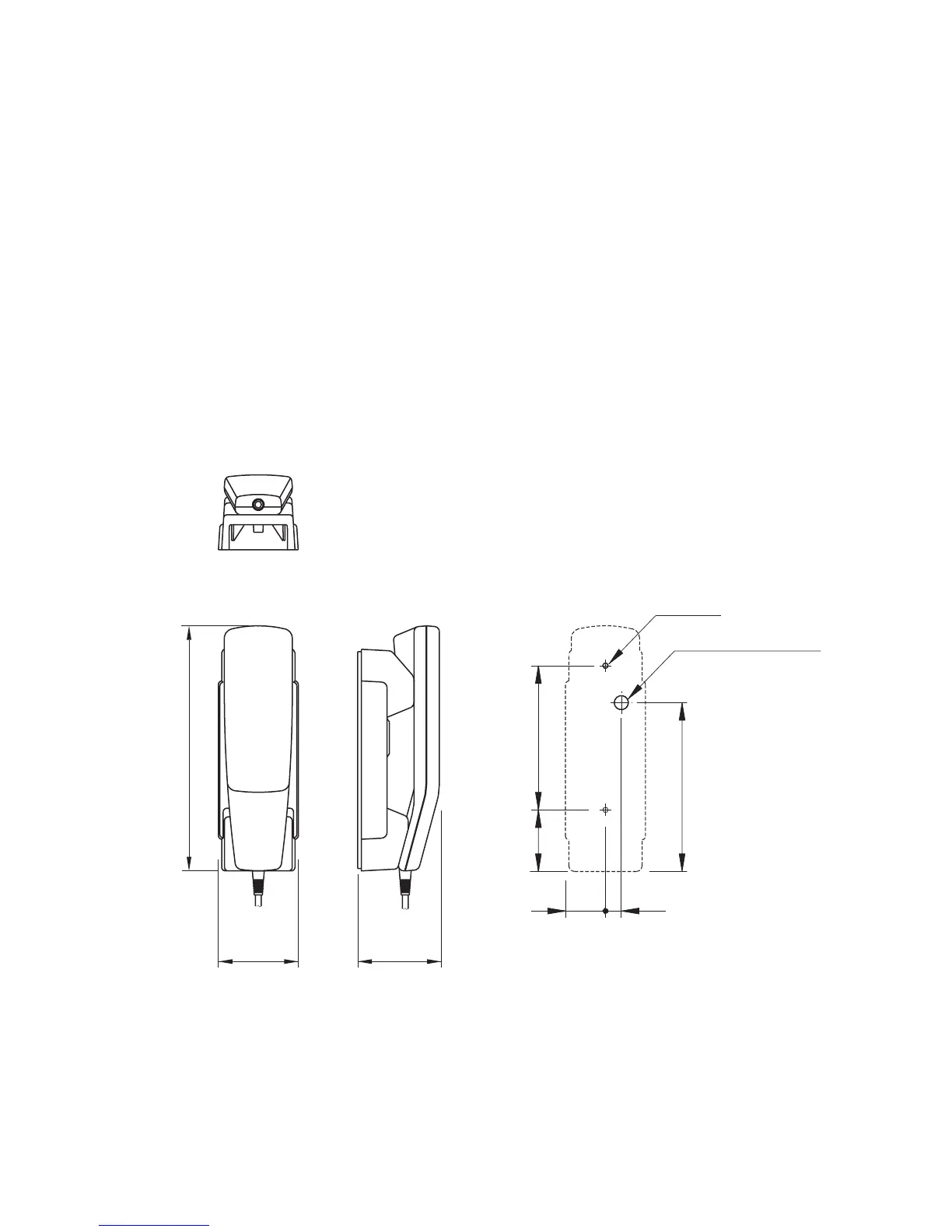

Dimensions and weights
Handset
Drilling Plan
70 73
210
13.5
34
52.5
123
ø12 for cable entry
144
2 x ø4.5
37921
Weight:
Handset 0.5 kg.
