2 INSTALLATION
2.1 MOUNTING POSSIBILITIES
The VHF DSC RM2042 cabinet is designed in a module called a mini 1/4 box. For this module we can
supply a wide variety of installation brackets etc. which will be described below. We have made a drawing
including dimensions and drilling plan for each type and we kindly ask you to look at the drawing for the
type in question.

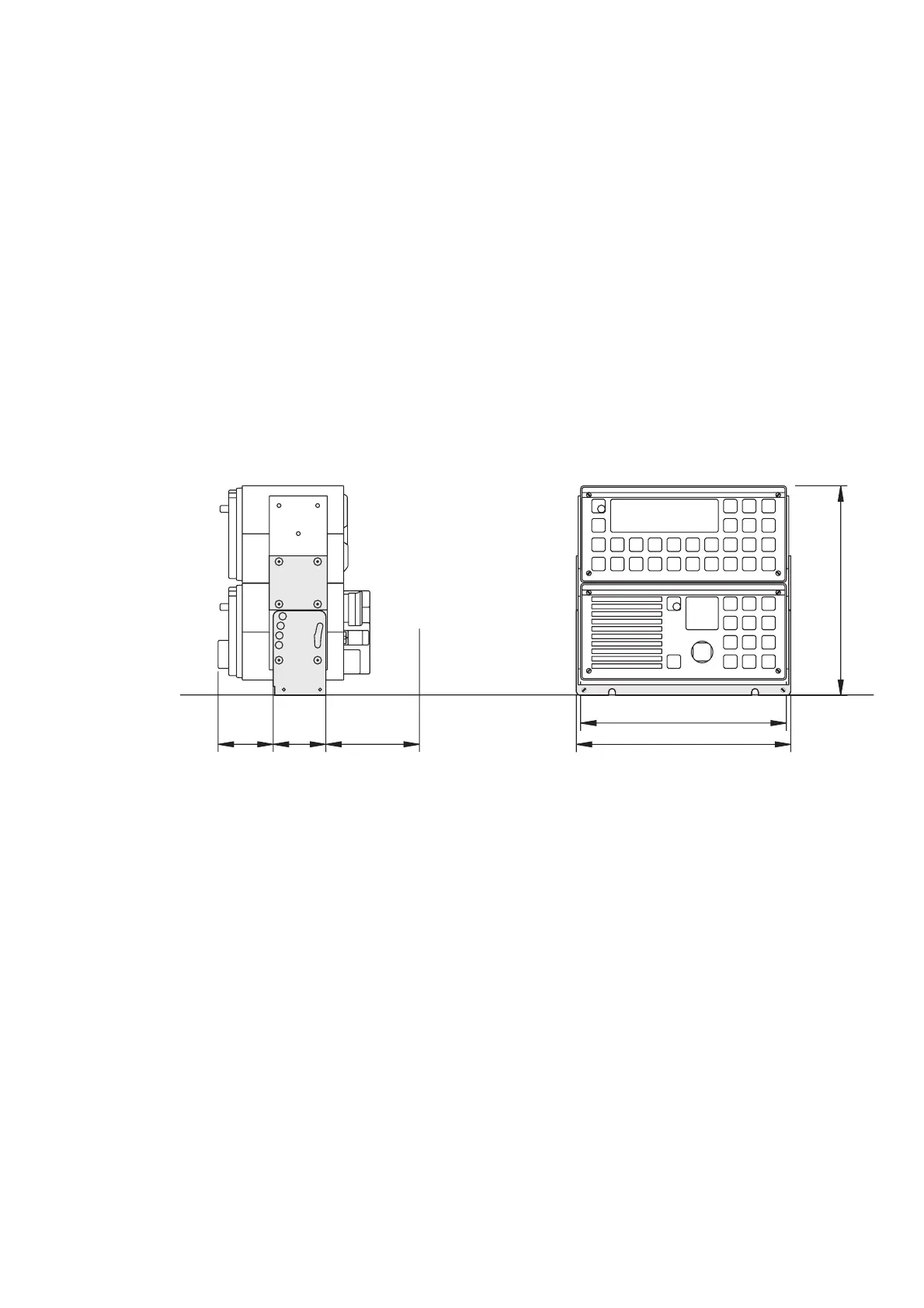

VHF DSC RM2042 AND VHF RT2048 MOUNTED ON TOP OF EACH OTHER USING H2067
MOUNTING BRACKET FOR TABLETOP, BULKHEAD OR DECKHEAD FOR MINI 1/4 BOX AND
H2072 LASHING KIT.
This mounting bracket H2067 and lashing kit H2072 is used when RM2042 is to be mounted on top of
each other and next to other units in the Compact 2000 programme mounted in H2055 mounting brackets.
H2072
225mm
213mm
55mm60mm min 120mm**
min 80mm*
215mm
27599
* dimensions when using
a right-angled VHF plug
** dimensions when using
a standard VHF plug
Weight:
Mounting kit H2067: 0.5 kg
Mounting kit H2072: 0.1 kg
VHF RT2048: 3.2 kg
VHF DSC RM2042: 2.0 kg
RM2042
