Sailor RM2042 - RM2042 Electrical Connections and Connectors

2 INSTALLATION RM2042
J1
CONNECTOR FOR HANDSET
+12V FROM VHF
DISTRESS
KEY
MIC.
MIC.GND
GND
TELEPHONE
PIN 9
PIN 7
PIN 8
PIN 6
PIN 5
PIN 4
PIN 3
PIN 2
PIN 1
9 8 7 6
5 4 3 2 1
27773
P3
POWER CONNECTOR
- BATTERY
EXT. SUPPLY ON/OFF
+ BATTERY
REMOTE AL. CIRC.
EXT. LOUDSPEAKER
PIN 6
PIN 5
PIN 4
PIN 3
PIN 2
PIN 1
2
4
6
1
3
5
EXT. LOUDSPEAKER
27772

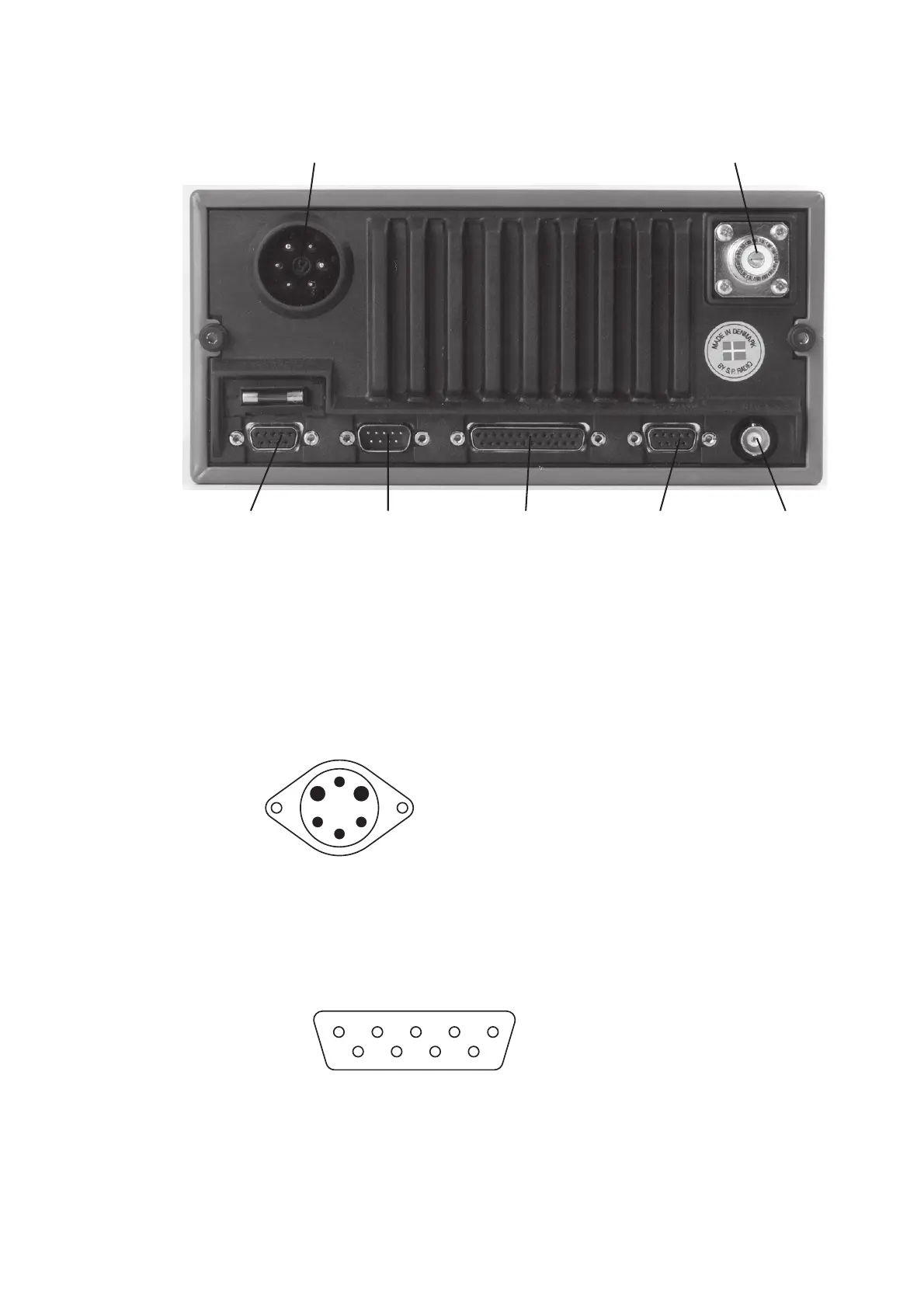

2.5 ELECTRICAL CONNECTIONS
PAGE 2-6
NMEA Interface
Antenna terminal
Connector for
Power Supply
Connector for
Handset
Connector for
Printer
Connector for VHF
Radiotelephone
Connector for
PC/Remote Distress
Unit (C2149)
