97-147768-A SAILOR 6300B MF/HF Service Interface User Manual
6
3 Overview of functionality
The service tool is used to perform updates to the firmware and various settings of the
radio. This section describes each feature of the service tool in turn. The tool will show
information about firmware, status of the radio and data from the logs for all users
without administrator rights, covered in section 3.1. For administrators the service tool
provides functionality for configuration of radio settings and tools for administration of
firmware, covered in section 3.2.
3.1 Open access functionality
The open access information of the service tool is divided into three tab pages, described
in the following three subsections.
3.1.1 STATUS

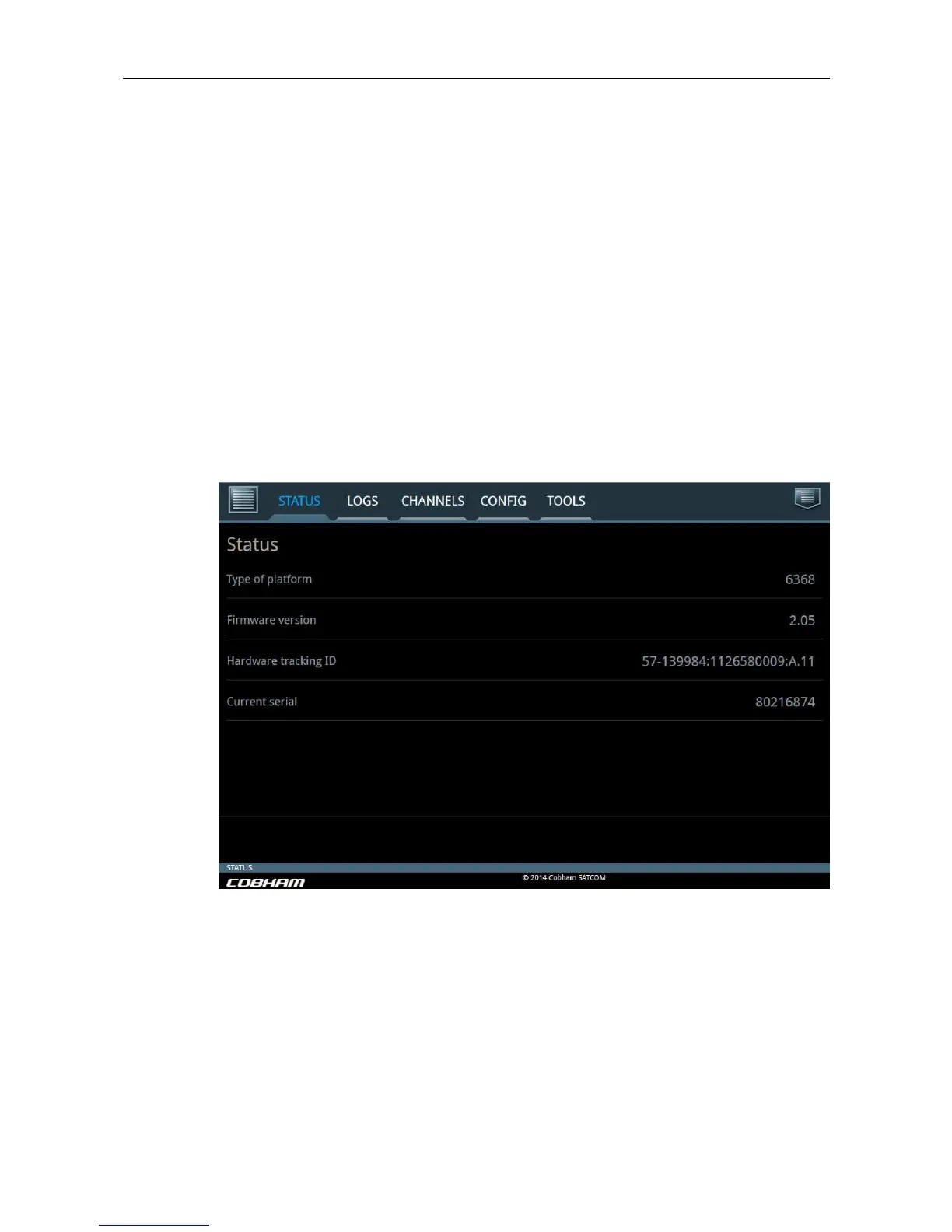

The STATUS tab page can be seen below in Figure 2.
Figure 2: Status tab.
The status tab is used to show the current platform and hardware configuration of the
radio. The field Hardware tracking ID is used in service of the transceiver unit.
