On/Off (1)
Press to turn the radio on. To turn off, press
and hold the key for approximately 2
seconds. This is to avoid accidental power
off.
Hi/Lo (2)
Toggles between high and low transmit
power (see specification section). Use the
low setting over short ranges to preserve
battery life.
VOL - Volume (4)
SQ - Squelch (5)
Press to select Volume or Squelch mode
then use the and keys to adjust the
level.
The display will show “VOL” or “SQL” for 3
seconds - if / are not pressed within
this time, their function will revert to channel
select.
/ (6 & 7)
These keys will change the selected
channel. Pressing VOL, SQ or
, then /
within 3 seconds will adjust the volume,
squelch or backlighting level respectively.
The bargraph will indicate the level selected.
SCAN mode (8)
Scans through the channels stored in the
channel memory (display shows MEM
SCAN).
• Select channel and press twice to add/
delete to memory scan (display shows
ENT or DEL respectively). The ❑ icon
indicates that the selected channel is
included in memory scan.
• Press and hold until double beep
sounds to scan all channels (display
shows SCAN).
• Press and hold until triple beep sounds
to inhibit/enable selected channel from
scan (display shows INH or ENA
respectively).
The - icon indicates the selected
channel is inhibited

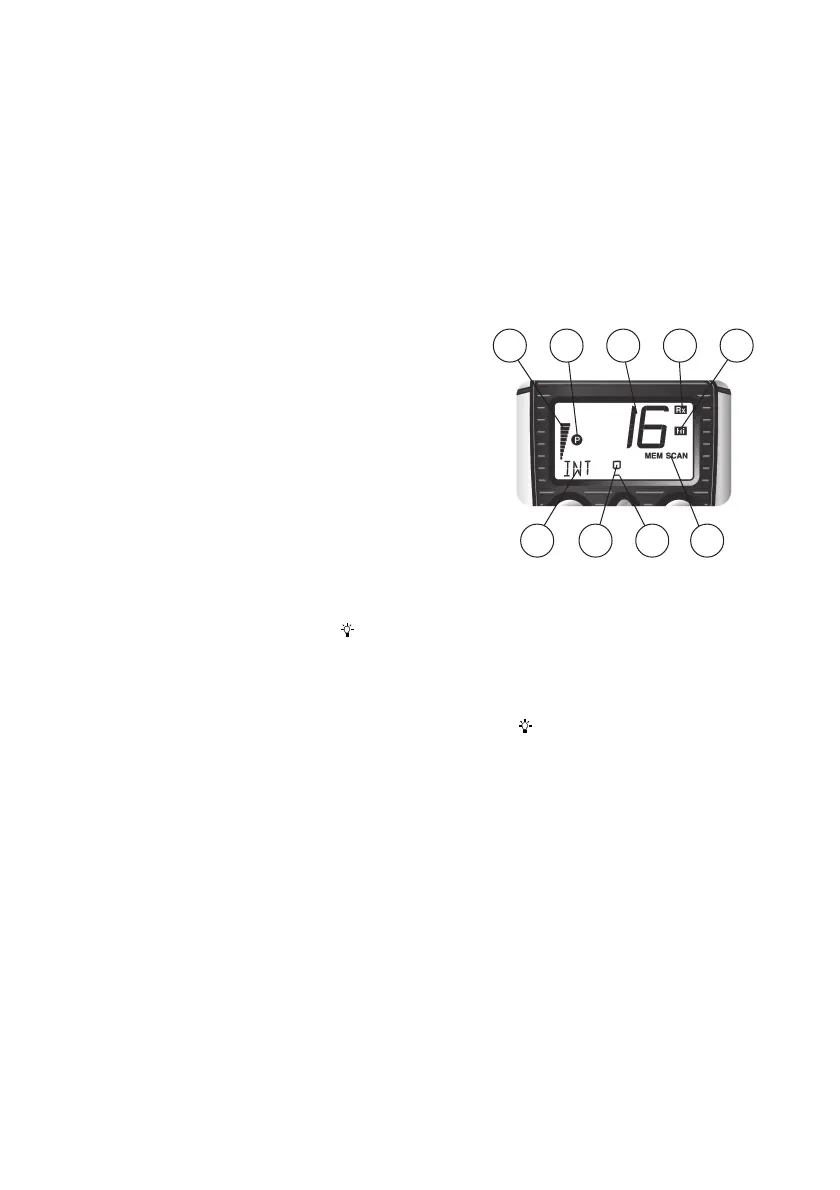

a. Bar graph -
Power up Battery level
Standby Battery level
Transmit Battery level
Volume Mode Volume level
Squelch Mode Squelch level
pressed Backlight level
b Personal Channel indicator
c Channel selected
e High or Low power indicator
f Function indicator
g Selected channel stored in momory
h Channel inhibited from scan
i Scan mode selected
f ghi
abcde
