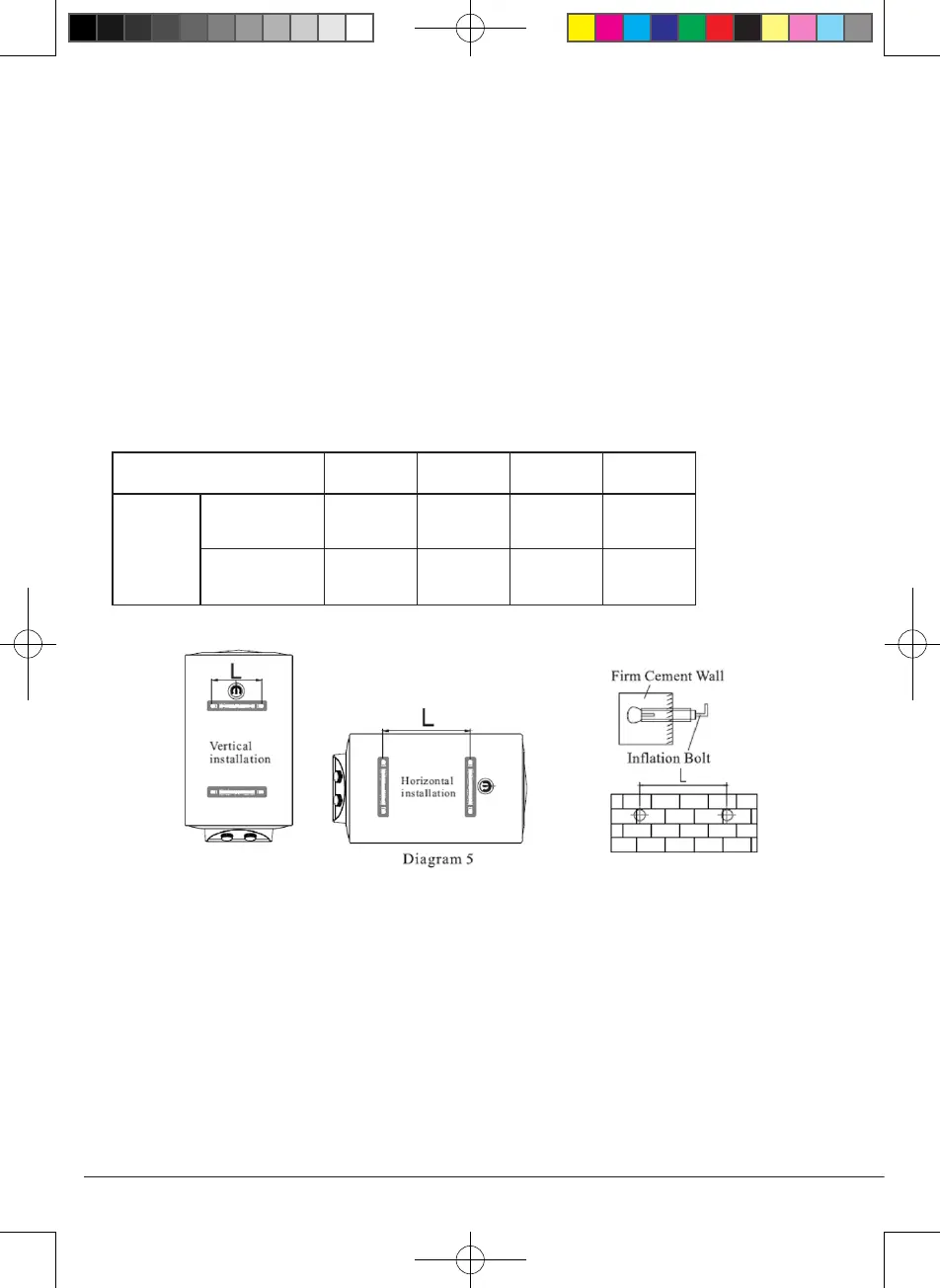

ASSEMBLING INSTRUCTIONS
 This electric water heater should be mounted on the solid cement walls.
Furthermore, the places where are close to the power source’s sockets and conveniently use the water.


heater. Otherwise, the electric water heater may fall down from the walls, and cause the servere dam-
aging accidents.
 Before determining the bolt hole’s position, you should guarantee the right side of the electric wa-
ter heater to be more than 200mm away the ground. This will be convenient to leave out a certain
space to maintain when it is necessary.
 

 For vertical installation，the hot water outlet pipe must be the upper side.
CAPACITY 30L 50L 80L 100L
L(MM)
VERTICAL
INSTALLATION 185 185 210 210
HORIZONTAL
INSTALLATION 208 470 327 487
PIPE CONNECTIONS
 All the pipe parts are G1/2”. Wind a certain raw material tape at the water-entering mouth sector

valve well.
 
 -
ing the pipes (Diagram 7).
CAUTION ITEMS
         
Must’s loosen and prohibit to mount it in the heart-emptied bricks or the brick crevices.
