Sako SKI-70 - Control Terminals Description; Control Terminal Function Description

6
2.1.3 控制端子说明 Control terminals instruction

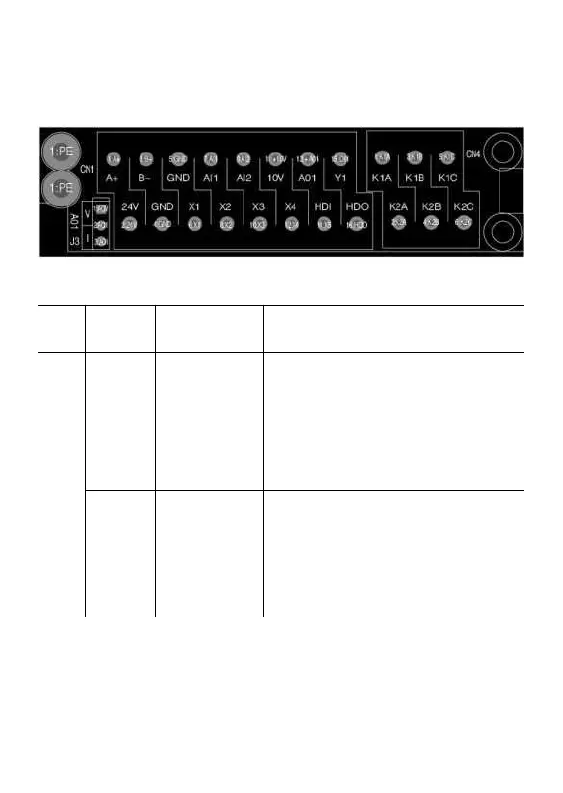

控制回路端子布置图如下示
:The control circuit terminals layout diagram shown as the below:
2.1.4 控制端子功能说明 Control terminal function instruction:
类别
Category
端子符号
Terminal
symbol
端子名称 Terminal
name
功能说明 Function instruction
电源
Power
supply
10V-GND
外接 10V 电源 Outer
connect 10V power
supply
向外提供+10V 电源，最大输出电流：Outer provide
+10V power supply, the max output current:
150mA（带短路保护）一般用作外接电位器工作 电
源，电位器阻值范围：
1kΩ
〜
5kΩ Generally, 150mA
(with short circuit protection) used as the working
power supply of outer connect electric potential
device, electric potential device electric resistance
value range: 1kΩ〜5kΩ
24V-GND
外接
24V
电源
Outer
connect 24V power
supply
向外提供+24V 电源，一般用作数字输入输出端 子
工作电源和外接传感器电源 Outer provide +24V
power supply, generally, it used as working power
supply of digit input and output terminal and outer
connect sensor power supply
最大输出电流：200mA The max output current:
200mA
