Salamander RGP - Plumbing and Electrical Setup

4 5
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty

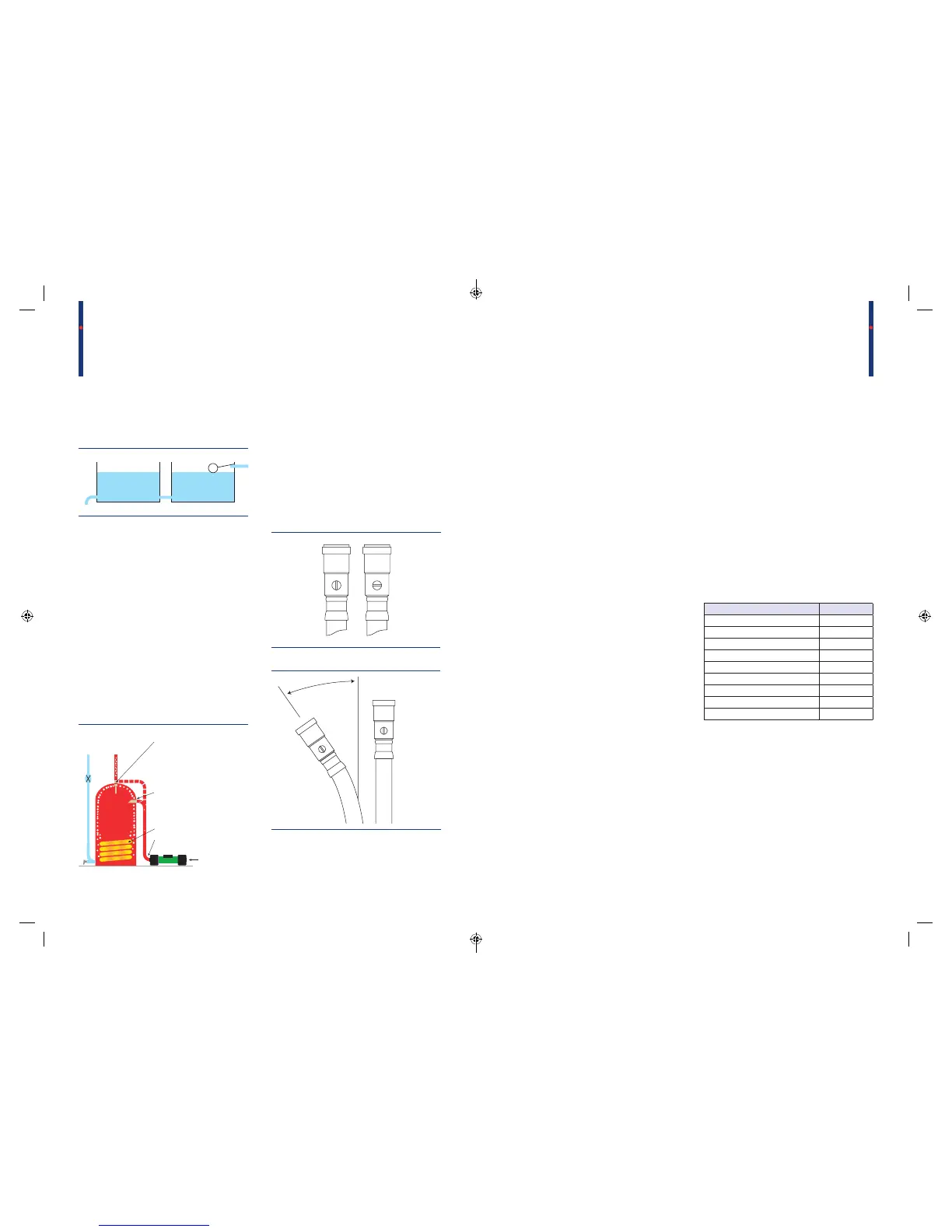

Multiple cold water storage tanks MUST be
linked in 28mm pipe work with the bottoms
of the tanks at the same level.
Figure 2: Linked cold water tanks
To Pump
To Cylinder
Outlet to
cylinder
Inlet
Bottom of cold
tank must be
cleared of debris
Outlet to pump
Fig 1
OLD STYLE DO NOT USED
Fig 2
2.3 Hot water requirements
The stored hot water temperature must not
exceed 60-65ºC (see page 16, Stored hot
water temperature).
The hot water supply to the pump must be
via a Salamander approved method:
The best hot connection from the cylinder
is either
• A 3⁄4” NO STOP ESSEX FLANGE. See
Figure 3 or
• Alternatively a Salamander S ange or
other approved top entry flanges. See
page 16.
• Never t to top entry ange if the pump
is fitted above the cylinder.
Figure 3: Hot water supply method
Pump at the base of cylinder
Outlets
MAX
65˚C
Pump at base of cylinder
OR ALTERNATIVELY
MAX
65°C
Indirect coil
Inlet
22mm No Stop Essex flange
with 3” dip pipe and birds beak
cut end to limit air being drawn
into the pump.
A Salamander S flange or one
of the 1”x
3
/
4
”
approved (22mm)
top entry flanges listed below
OR ALTERNATIVELY
22mm No Stop Essex
flange with 76mm dip
pipe and birds beak cut
end to limit air being
drawn into the pump
Inlet
Outlets
Indirect coil
Pump inlet
Fig 3a
OLD STYLE DO NOT USED
Pump inlet
A Salamander S flange or
one of the 22mm approved
top entry flanges listed
on page 16
3. Anti-vibration couplers
(Hoses)
The anti-vibration (AV) couplers are designed
to limit the transfer of pump vibration to
the associated pipe work. All Salamander
AV couplers are ¾“ BSP x 22mm push fit
with built-in isolating valves. Note: the
RSP 50 and RGP 50 are supplied with
15mm couplers with isolating valves on
the inlets and outlets.
Figure 4: Isolating valves
35°
Isolating valve
shown in
‘ON’ position
Isolating valve
shown in
‘OFF’ position
5 Electrical requirements
The pump must be connected to the
electrical supply using the mains cable
with the attached plug. This plug must be
connected to an accessible socket that has
been installed in compliance with BS7671
(I.E.E. Wiring regulations). The plug must be
accessible at all times.
The pump must not be installed in a
bathroom unless it is installed in an enclosed
space accessible only with the use of a tool.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified person in order to
avoid a hazard.
Higher rated fuses must NOT be used.
Fuses should be as per the table below:
We recommend that the pump is run for at
least 5 minutes every 4 weeks in order to
exercise all working parts.
35°
Do not bend hoses
more than 35°
Do not twist or
kink the hose
Figure 5: Couplers
Each single pump is supplied with two
couplers; one angled and one straight.
The angled coupler should be attached to
the pump inlet (on the side) and the straight
coupler should be attached to the pump
outlet (on the top).
Each twin pump is supplied with four
couplers; two angled and two straight.
For all pumps, the inlets are on the side of
the pump and the outlets are on the top of
the pump.
The AV couplers MUST only be tightened
to finger tight plus one quarter turn.
Mechanical tools must NOT be used to
tighten coupler nuts as this may cause
damage which will invalidate your warranty.
4 General plumbing
The installation must comply with the
relevant requirements or local by-laws.
The pump MUST be mounted upright (shaft
horizontal, not screwed down).
Jointing compounds, Boss White, hemp and
steel wool MUST NOT be used. Solder fluxes
must not come into contact with the pump
or the AV couplers.
The maximum static head should be 10m
(equivalent to 1.0 bar pressure) with the
exception of the ESP 50 CPV pump where
the maximum static head should be 5m
(equivalent to 0.5 bar pressure).
Pump Fuse
RGP Range 3 amp
RSP 50 3 amp
RSP 75, RSP 100 5 amp
RHP 50 3 amp
RHP 75, RHP 100 5 amp
RHP 140 7 amp
ESP 55, ESP 80, ESP 120, ESP 50 3 amp
ESP 75, ESP 100, ESP 150 5 amp
ESP 140 7 amp
Ideally the AV couplers should be straight,
but they must NOT be twisted or bent more
than 35º (this invalidates the warranty). See
Figure 5.
