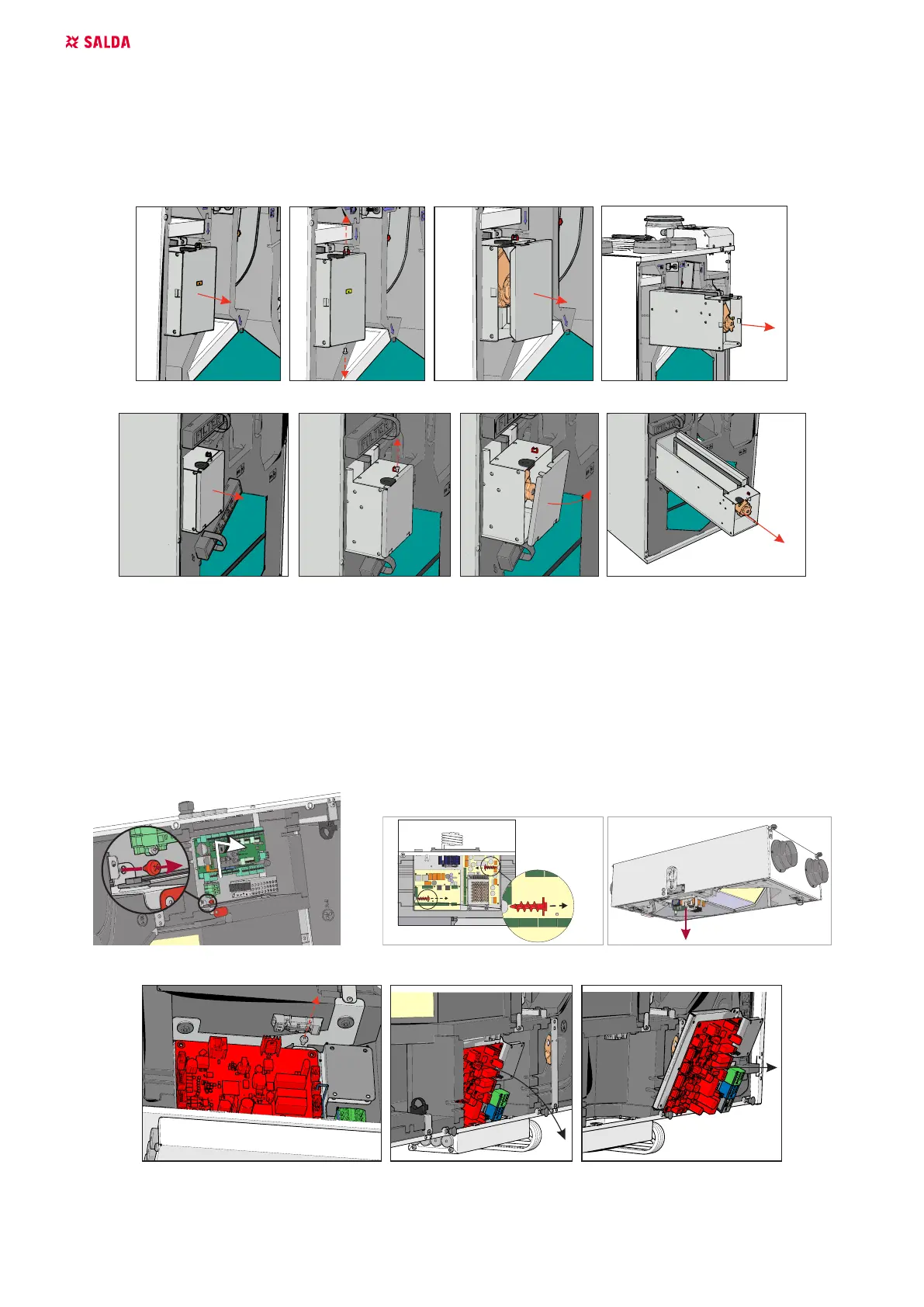

28 | EN SMARTY v2023.2
SMARTY XV (version S300):
To remove Bypass damper follow these steps:
Unscrew damper actuator's cover bolt and remove cover.
Disconnect connector (X4) from the actuator.
Disconnect actuator's wires from bypass damper's case.
Remove bypass damper.
To reassemble follow steps in reverse order.
Figure 6.7.6. Smarty 2X V S300
Figure 6.7.7. Smarty 3X V / 4X V S300
6.8. CONTROL BOARD MAINTENANCE
SMARTY XP:
Loosen the front screw that tightens the automation sole to the housing of the device.
Disconnect all necessary cables, wires, connectors and pressure hoses for control board removal.
Remove the control board through the front part of the device.
To reassemble, follow all maintenance steps in reverse order. When re-connecting cables, wires, connectors and hoses, make sure to match
each wire, connector and hose to corresponding connection terminal, connector and hose adapter.
Figure 6.8.1. Smarty 2X P Figure 6.8.2. Smarty 3X P / 4X P
Figure 6.8.3. Smarty 2X P S300
