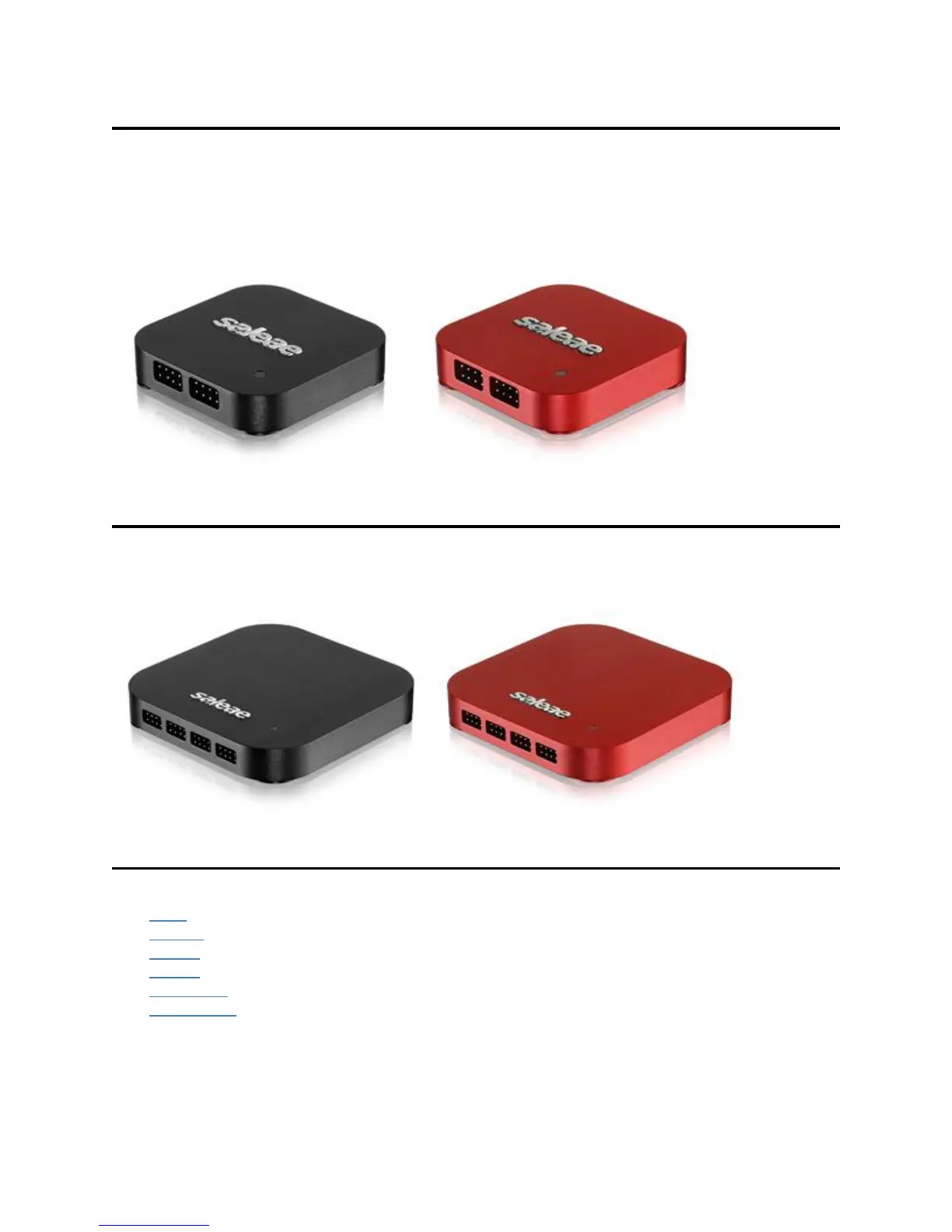

• SAL-00111 Logic 8 Black
• SAL-00112 Logic 8 Red
• SAL-00113 Logic Pro 8 Black
• SAL-00114 Logic Pro 8 Red
• SAL-00115 Logic Pro 16 Black
• SAL-00116 Logic Pro 16 Red
Datasheets:
• Logic
• Logic16
• Logic 4
• Logic 8
• Logic Pro 8
• Logic Pro 16

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Saleae Logic Pro 16 and is the answer not in the manual?

Saleae Logic Pro 16 Specifications

General IconGeneral
Digital Sample Rate500 MS/s
Analog Sample Rate50 MS/s
Input Voltage Range-10V to +10V
USB ConnectionUSB 3.0
Analog Bandwidth5 MHz
Input Impedance1 MΩ || 10 pF
Operating System CompatibilityWindows, macOS, Linux
Supported Logic Levels1.2V to 5V
Bandwidth5 MHz (Analog)
Resolution12 bits
Supported ProtocolsI2C, SPI, UART, CAN
Power Consumption5W
Digital Voltage ThresholdsUser-adjustable
