Product Summary

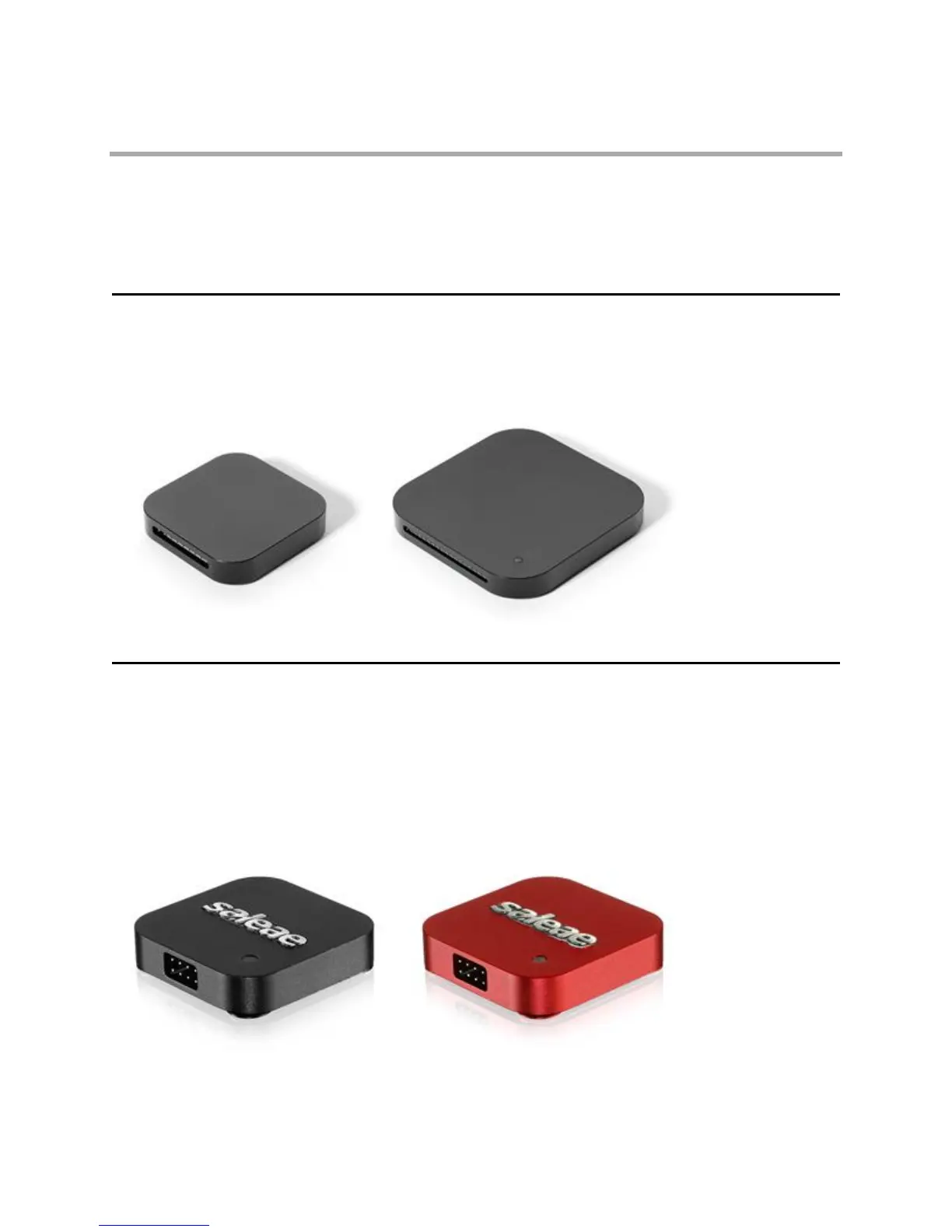

Saleae Logic Analyzers consists of the products listed in this section. The 2nd Generation of products
have the capability of recording both digital and analog signals, while the 1st Generation of products have
digital recording capability only.
1st Generation:
• SALEAE001 Logic (Discontinued)
• SALEAE009 Logic16 (Discontinued)
2nd Generation:
Note: "Red" or "Black" is not written on the device. This refers to the color of the device enclosure. The
specific device model is written on the bottom of the device enclosure.
• SAL-00109 Logic 4 Black (Discontinued)
• SAL-00110 Logic 4 Red (Discontinued)

Saleae Logic Pro 16 Specifications

General

Digital Sample Rate	500 MS/s
Analog Sample Rate	50 MS/s
Input Voltage Range	-10V to +10V
USB Connection	USB 3.0
Analog Bandwidth	5 MHz
Input Impedance	1 MΩ || 10 pF
Operating System Compatibility	Windows, macOS, Linux
Supported Logic Levels	1.2V to 5V
Bandwidth	5 MHz (Analog)
Resolution	12 bits
Supported Protocols	I2C, SPI, UART, CAN
Power Consumption	5W
Digital Voltage Thresholds	User-adjustable
