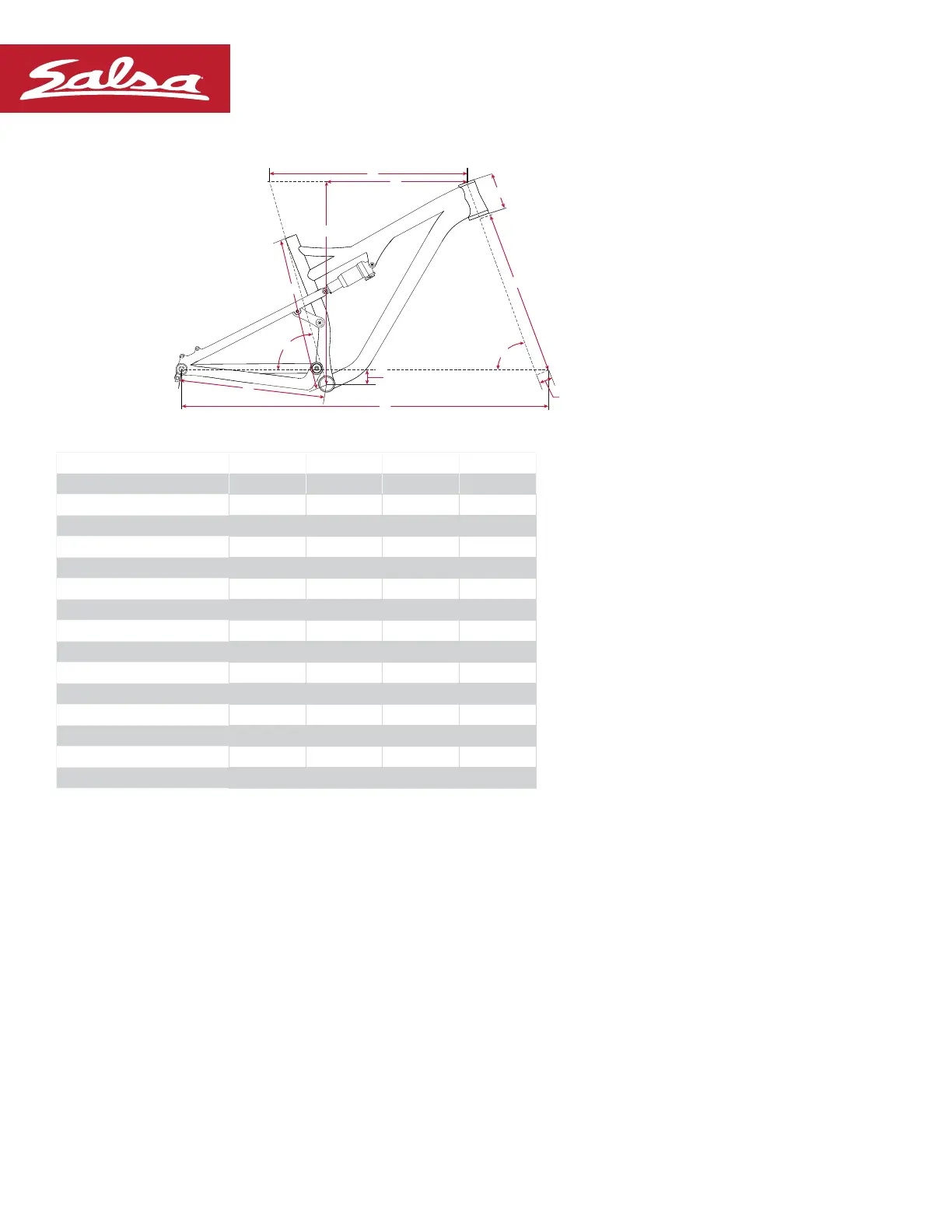

BUCKSAW FRAMESHEET
F
D
B
E
K
C
J
H
G
N
A
M
Measurements listed are based on:
• An unsprung bike (no sag)
• A 100mm RockShox Bluto
suspension fork
• A 26 x 4.0" tire measuring
742mm in diameter
• Standover measured vertically
from the top of the toptube/
brace intersection or 50mm
forward of the BB
Care & Maintenance
Keep your frame clean. Dirt and road grime lead to oxidation and
fading of the finish, and they make it hard to do a thorough
inspection. Dirt will accelerate any abrasion of the paint that
comes from rubbing, such as places where the cable housing
touches the frame. In extreme cases, this type of abrasion could
remove frame material.
When your bicycle is not being ridden, store it where it will be
protected from rain, snow, sun, etc. Rain or snow may cause the
metal on your frame to corrode.
If your bicycle was exposed to moisture during a ride, thoroughly
dry the bicycle before storing it. If water got inside the frame,
tilt the bicycle to drain the water. If necessary, remove the
seatpost and turn the bicycle upside down. This is especially
critical if there is a large amount of water inside. If water freezes
inside your frame, the expansion of the ice can crack and rupture
the structure.
Before storing your bicycle for an extended period of time, clean
and lubricate the frame with a frame wax, polish, or protectant.
Do not store the bicycle near electric motors, as ozone from
motors destroys paint. Before riding the bicycle again, follow the
pre-ride checklist to be certain it is in good working order.
Frame Geometry
WITH 100MM SUSPENSION FORK All measurements in mm unless noted
Small Medium Large X-Large
Recommended Rider Height 163–173cm 173–180cm 180–188cm 188cm–UP
A. Toptube Effective 590 610 630 650
B. Seat Tube Length 387 432 483 533
C. Headtube Angle 67.7° 67.7° 67.7° 67.7°
D. Seat Tube Angle 73.5° 73.5° 73.5° 73.5°
E. BB Drop 26.2 26.2 26.2 26.2
F. Chainstay Length 444 444 444 444
G. Headtube Length 100 110 110 120
H. Fork Length 511 511 511 511
J. Fork Offset 50 50 50 50
K. Wheel Base 1142.7 1163.8 1183.8 1204.8
M. Stack 575.9 585.2 585.2 594.4
N. Reach 419.4 436.7 456.7 473.9
*Standover Alloy 729.0 742.6 761.8 774.8
*Standover Carbon 727.8 728.3 732.3 756.4
