SALSA BUCKSAW - Carbon Pivot Detail and Torque Specs

BUCKSAW SPLIT PIVOT
®
SERVICE KIT INSTRUCTIONS
7
8572 09/14 For additional product and safety information go to salsacycles.com/safety
12
14
1818
15
13
17
2
1
5
66
4
6
6
77
3
3
3
3
11
9
8
10
11
19
21
2020
21
2121
2020
19
19
20
21
20
1616
14
Damper Size = 184 x 44.5 (7.25in x 1.75in)
contact customer service for brand/model specic tunes
23
22
25
27
24
26
2828
Item # Qty. Description Size/Spec Preparation Torque Tool Required Notes
1 1 Main Pivot Pin ø17–97L Grease OD Only 8 Hex Key
2 1 Main Pivot Bolt M12 x 1.25 - 25L Loctite 242 Blue 20Nm/14.7 ft-lb/177 in-lb 6 Hex Key
3* 4 Bearing - MR17287 17 x 28 x 7w Grease for PressFit Bearing Press/Puller *Sold separately (BB1728)
4 1 Control Link Pin ø12–67L Grease OD Only 6 Hex Key
5 1 Control Link Nut M10 x 1.0 Loctite 242 Blue 7Nm/5 ft-lb/62 in-lb 15mm Wrench/Socket
6* 6 Bearing - 6801 12 x 21 x 5w Grease for PressFit Bearing Press/Puller *Sold separately (BB8801)
7 2 Floating Pivot Bolt M12 x 1.25 - 18L Loctite 242 Blue 13Nm/9.6 ft-lb/115 in-lb 5 Hex Key
8* 1 Hanger Split Pivot *Sold separately (FS2322)
9 1 Axle Stud, driveside M12 x 1.75 Grease OD & ID
Compatible thru-axle size is ø12,
L = 217, TP = 1.75, TL = 20
10 1 Axle Stud, non-driveside Grease OD & ID
11 2 Axle Nut M17 x 1.0 Loctite 242 Blue 16Nm/11.8 ft-lb/141 in-lb
22mm Cone Wrench/
Socket
Socket top cap tool available
separately
12 1 Forward Shock Pin ø8 x 30L Grease OD Only 5 Hex Key
13 1 Forward Shock Bolt M6 x 1.0 - 12L Loctite 242 Blue 5Nm/3.7 ft-lb/44 in-lb 4 Hex Key
14 2 Washer 8 x 12 x 1
15 1 Washer 6 x 10 x 1
16* 1 Kit Forward Shock Reducer 8 x 22 Per Shock Manf. Per Shock Manf. * Sold separately, per shock manf.
17 1 Rearward Shock Pin
ø8–55L
(M8 x 1.25)
Grease OD Only,
Threads = Loctite 242 Blue
7Nm/5.9 ft-lb/71 in-lb 6 Hex Key
18* 1 Kit Rearward Shock Reducer 8 x 38 Per Shock Manf. Per Shock Manf. * Sold separately, per shock manf.
19* 3 Button-Head Cap Screw M5 x 0.8 - 20L Loctite 242 Blue None T25
* Replacement kit
sold separately
20* 5 Washer M5 Typical
21* 6 Housing Guide Clip YF-W01
22* 1 FD Bracket Bucksaw Carbon
* Replacement kit
sold separately
23* 1 Low Head Socket Cap Screw M6 x 1.0 - 16L Loctite 242 Blue 5Nm/3.7 ft-lb/44 in-lb 4 Hex Key
24* 1 FD Blank Cover Bucksaw Carbon
25* 1 Housing Port Grommet PLG-00-902
Flat Blade
Screwdriver/Pliers
* Replacement sold separately
26* 1 Downtube Protector Bucksaw Carbon Clean D/T surface prior
27* 1 Chainstay Protector One Size Clean C/S surface prior
28* 2 Bottle Cage Bolts M5 x 0.8 - 16L Grease 4Nm/3 ft-lb/35 in-lb 4 Hex Key

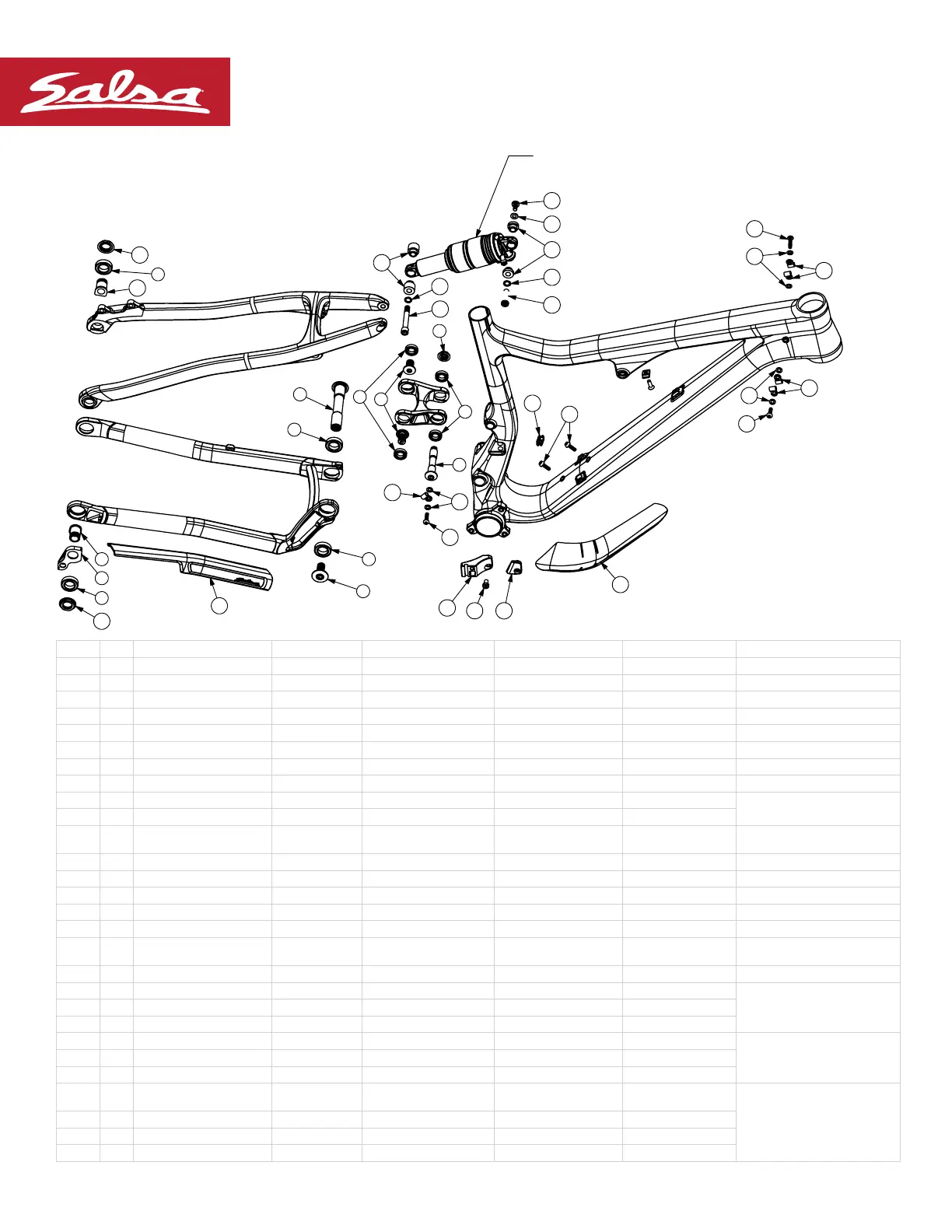

Figure 3 Bucksaw Carbon Pivot Detail & Torque Spec
* Starred items are NOT included in the
Bucksaw Split Pivot Service Kit. They must
be ordered separately. Measurements are
in millimeters unless noted otherwise.
OD = outer diameter, unthreaded portion
ID = inner diameter, threaded or unthreaded
