A clean environment and work surface can be maintained as any overflow can be
avoided. Steam will not escape from this cooker when it is used for simmering and for
making stew.

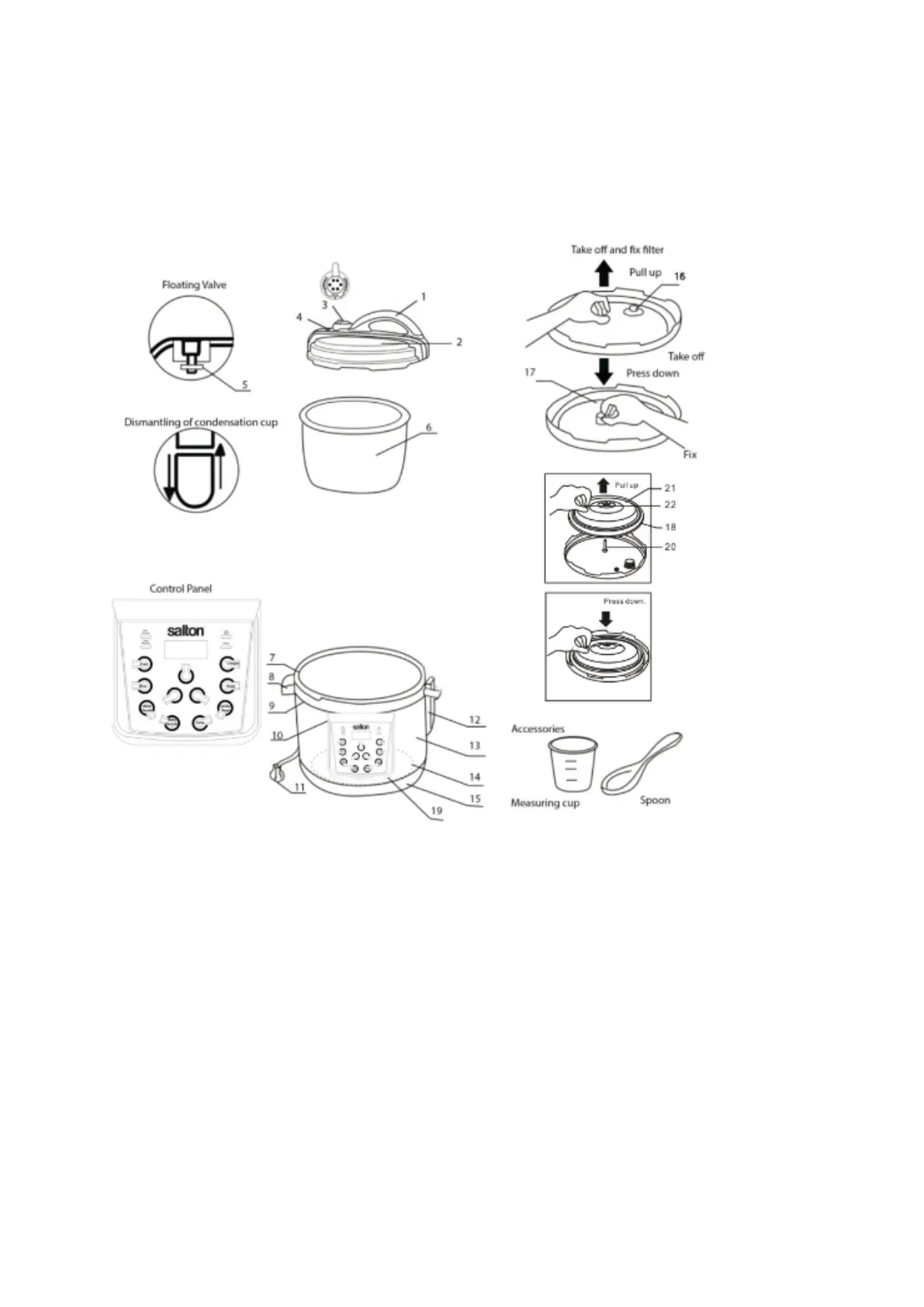

PARTS DIAGRAM
1. Handle 8. Handle 15. Bottom Ring
2. Lid 9. Upper Ring 16. Seal Ring for Float Valve
3. Pressure Limiting Valve 10. Control Panel 17. Filter
4. Float Valve (external view) 11. Power Cable 18. Rubber Seal Ring
5. Float Valve (internal view) 12. Condensation Cup 19. Sensor
6. Inner Pot 13. Main Body 20. Lid Rest
7. Outer Pot 14. Electronic Heater
