Installation and electrical connections
7
8
Loosen the screws at each corner of
the top cover, then open it to access
the internal part for wiring and set up.

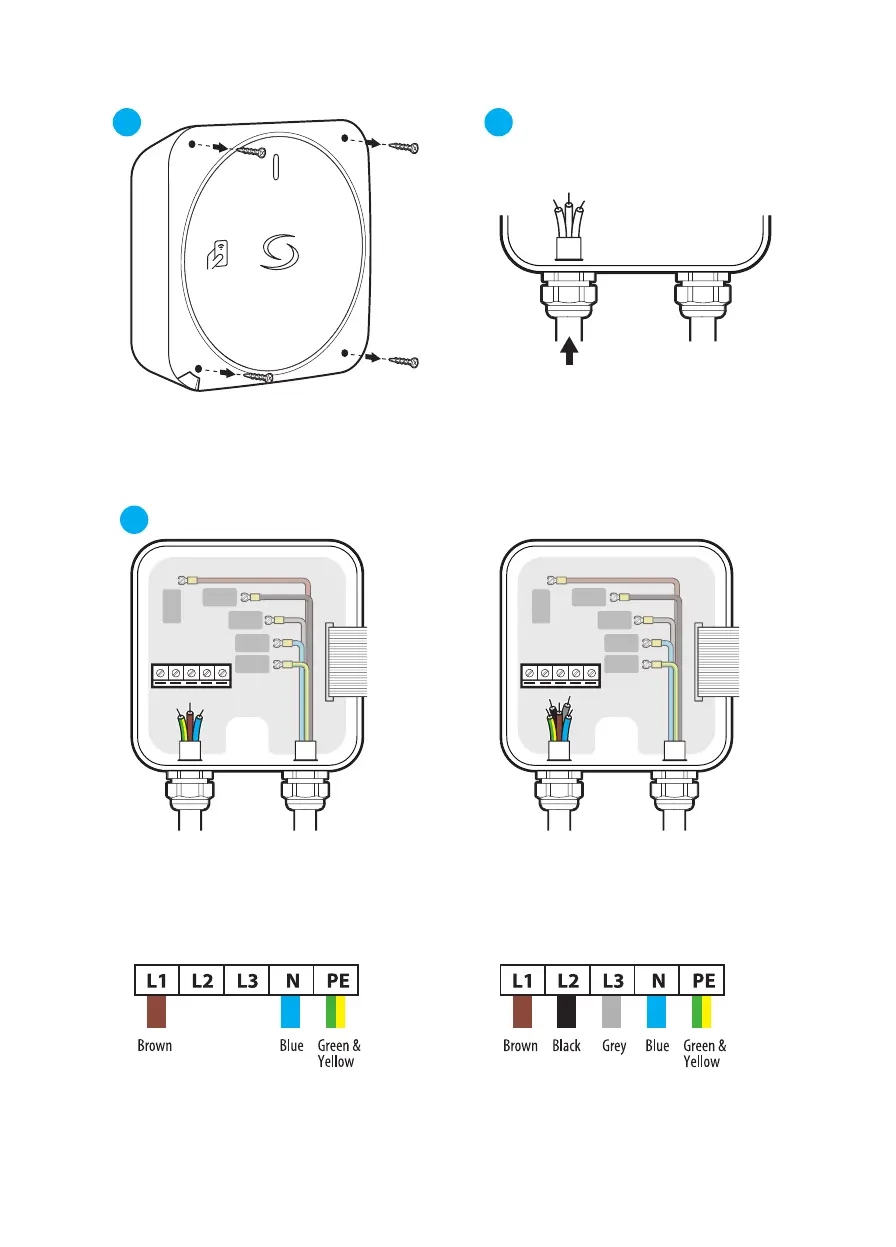

Insert the cable into the EV charger and connect it to the terminals, following the
configurations listed for single-phase or three-phase power input.
* The above colors are used following the IEC standard, some regions may use other standardized colors.
Pass the power supply cable through the
cable gland supplied.
6
Single phase: Three phase:
