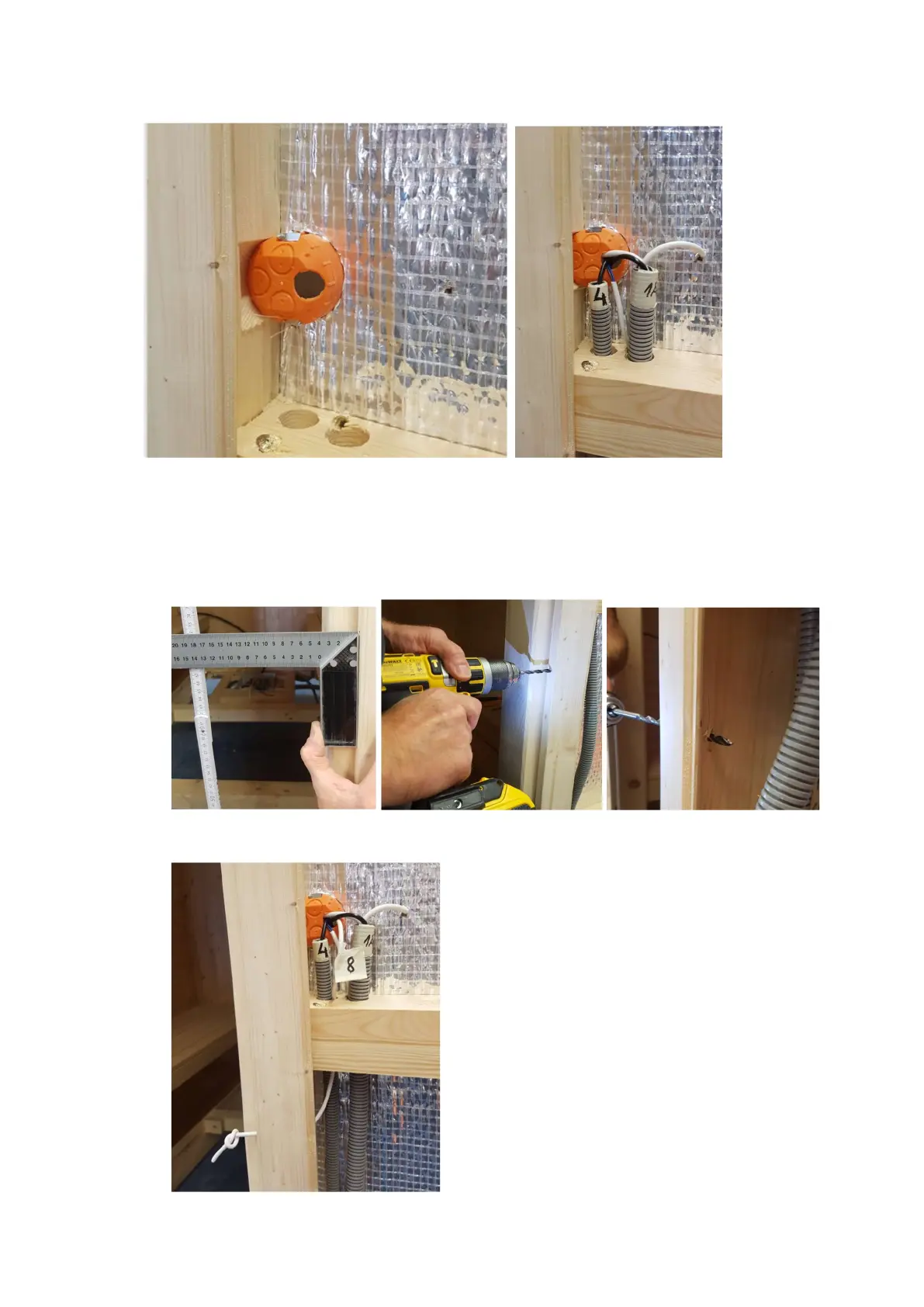

2. Insert the box and feed the harness cables "1" into it, using the protective pipe "1A" and "4".
VII. DRILLING THE HOLES FOR WIRE "8" OF THE DOOR OPENING DETECTOR HUUM
1. Make a hole with a drill phi 6 mm in the door frame at a height of 72 cm from the threshold of
the door opening at an angle so that it comes out on the other side behind the door frame.
2. Insert wire "8" into the box.
