SUN_IS_ electrical_installation_v5.1_06092021
19

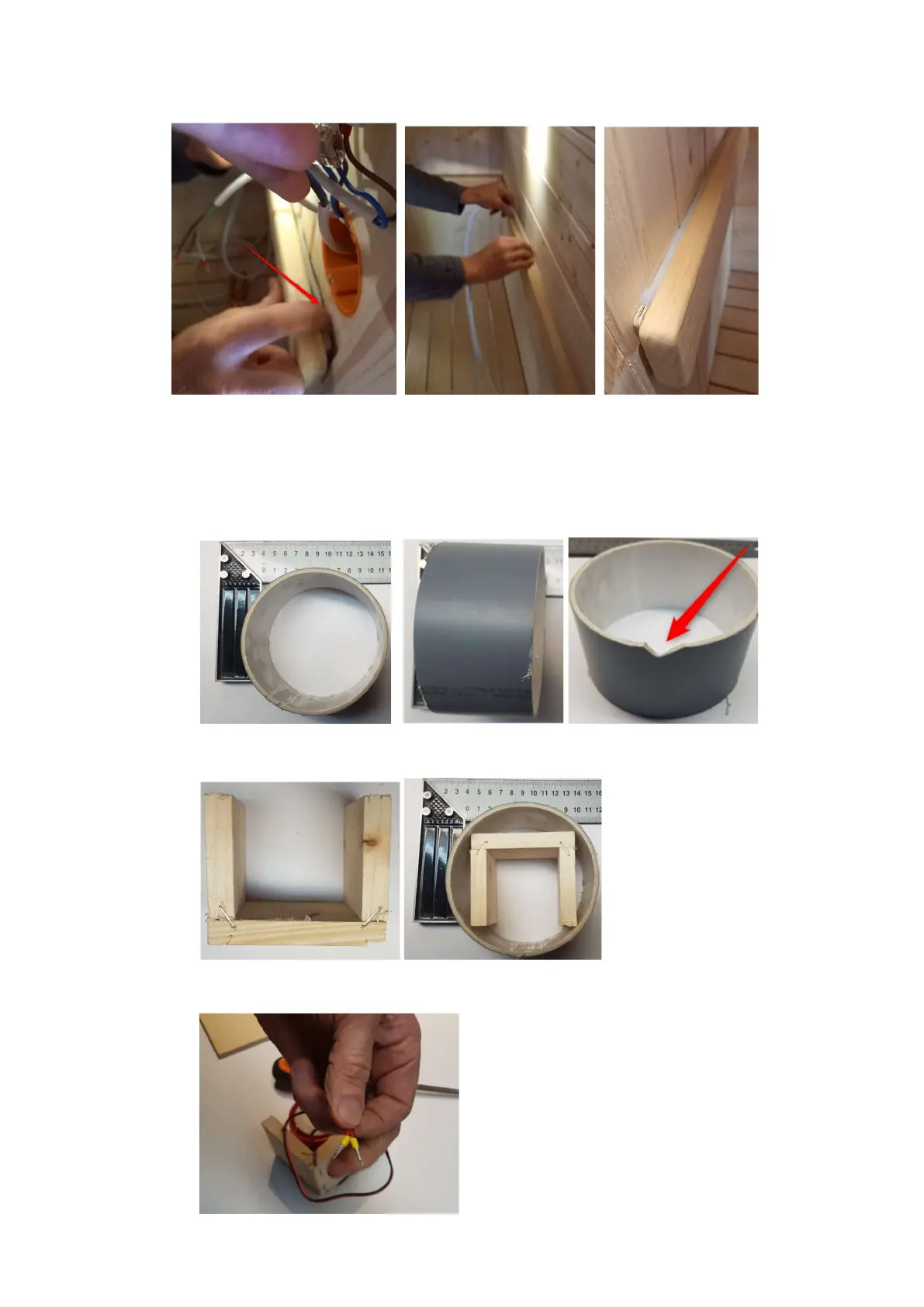

5. Lay the LED strip along the bench backrest.
6. Repeat the above steps for the left side, connecting to wire '7'.
IX. PREPARATION AND INSTALLATION OF THE ALARM SIREN
1. Cut a 6 cm wide piece from the phi 110 pipe. Then make an undercut for the siren wire.
2. Make a U-profile from the boards to fit the cut piece of pipe.
3. Crimp 0.75 mm
2
cable lugs onto the siren wires.
