08 VS30W and VS30B Installer Manual
S2
S1
NSB
SL
L
N
S2
S1
NSB
SL
L
N
Sensor Terminal (optional)
Sensor Terminal (optional)
Night set back output
Load (Thermal Actuators)
Live 230V AC 50Hz
Neutral
L N
Wiring Centre
Thermal
Actuator
Optional SALUS
Sensor

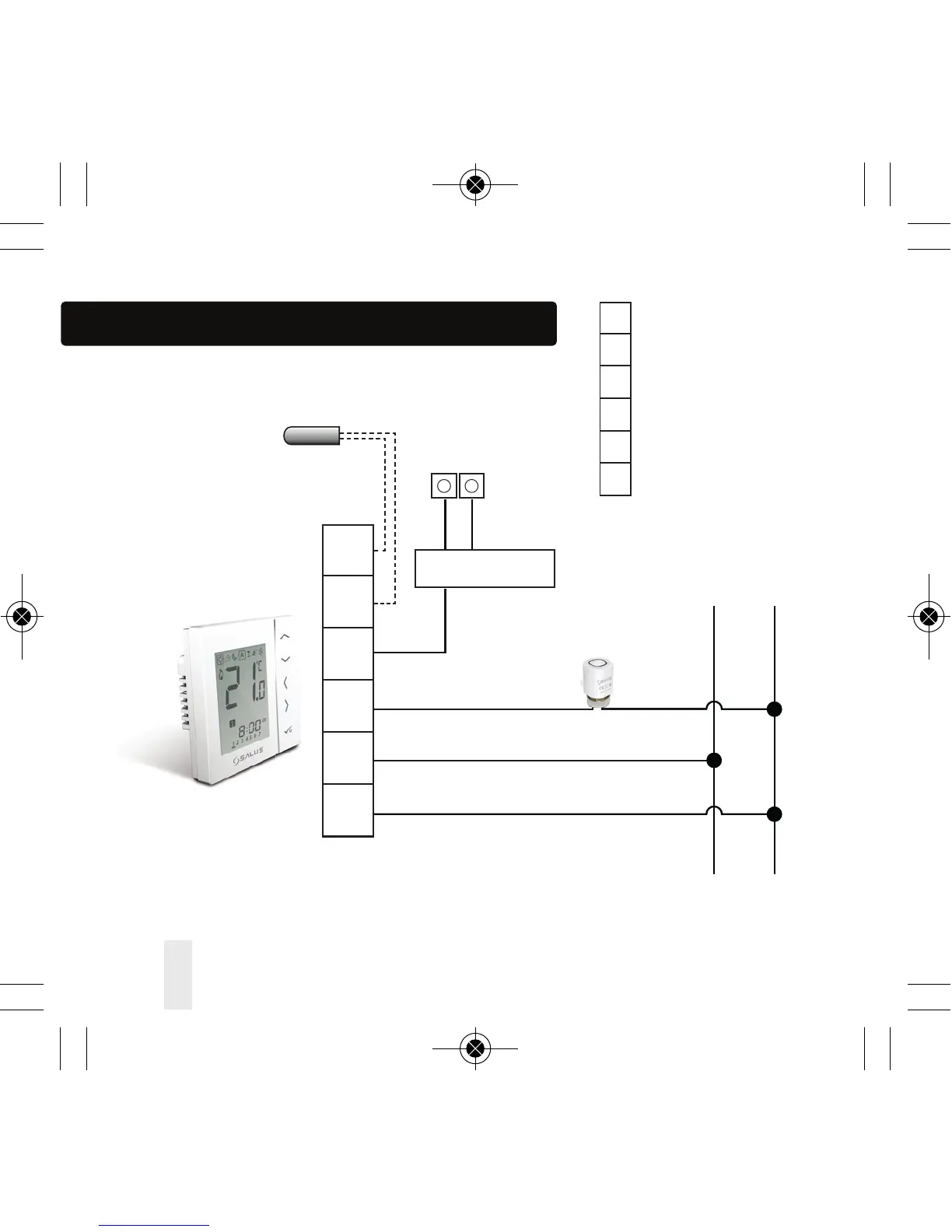

Installation – Terminal Connections
L N
NSB for other
thermostats
Output
