SaMASZ K2BF 210 - Design of Cutting Unit

Operator’s manual
Front drum mower
K2BF 210; K4BF 265; K4BF 300
- 5 -
The drive on the mowing saucers is transmitted from tractor’s PTO through PTO shaft (5),
intersecting axis gear (3) and the gearbox set mounted inside the main frame (1) (Fig. 2).
The cutting unit (2) (shown in Fig. 3 and Fig. 4) consists of drums with mowing saucers and
knives. These parts are connected to the suspension frame (4) with mower’s triangle, which is used
to mount the mower on the tractor’s triangle, connected to tractor’s front 3-point linkage.
For transport the mower is lifted by the tractor’s linkage. On the mower’s main frame (1)
there are swath discs (6). Over the cutting unit, there is an upper safety guard (7) with safety curtain
(8), fastened to the main frame. Optional equipment: warning plates (9).
3.3. Design of cutting unit

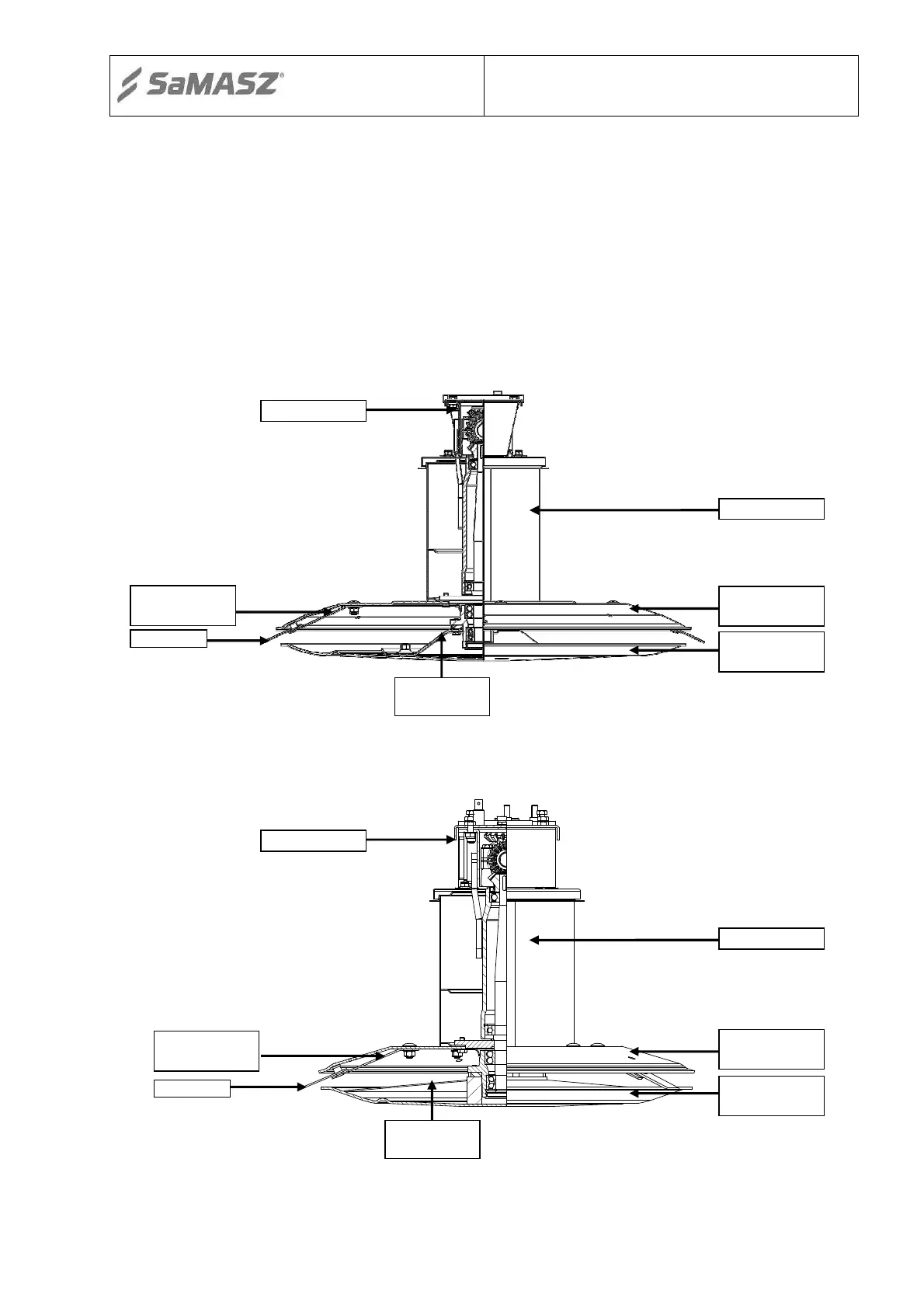

Fig. 3. Cutting unit (mower: K2BF 210)
Fig. 4. Cutting unit (mower: K2BF 265, K4BF 300)
Main frame
Drum
Mowing
saucer
Sliding
saucer
Knife
Knife
holder
Support
saucer
Main frame
Drum
Mowing
saucer
Sliding
saucer
Knife
Knife
holder
Support
saucer
