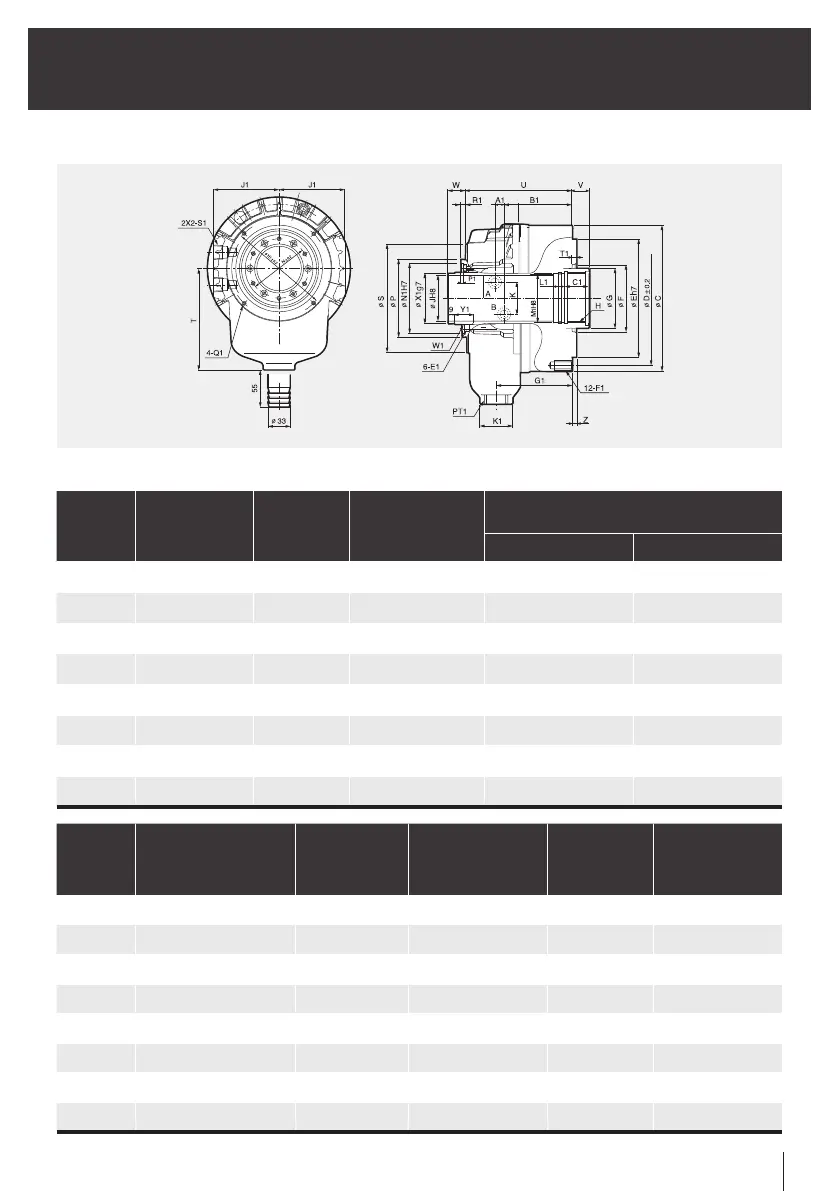

SAMCHULLY SH - 사 양; Specification

31
Instruction Manual
SH
6. Specification
6. 技术参数
6. 사 양
사양 / Specification / 规格
형식
Type
型式
최대사용 유압력
Max. Operating Pressure
最大。操作压力
[MPa(kgf/cm²)]
최대회전속도
Max. r.p.m.
最大转速
[min
-1
(r.p.m.)]
관성모멘트
GD
2
转动惯量
[N·m
2
(kgf·m²)]
중량
Weight
重量
[kgf]
총 드레인량
Total Leakage
总泄漏
[ℓ/min]
SH-10036 4.0(40.8) 8000 0.43(0.044) 8.4 3.0
SH-13046 4.0(40.8) 7000 0.20(0.021) 10.0 3.0
SH-15052 4.0(40.8) 6200 0.44(0.045) 14.0 3.9
SH-17068 4.0(40.8) 5600 0.65(0.067) 16.5 4.0
SH-18077 4.0(40.8) 5000 0.83(0.084) 18.0 4.2
SH-19082 4.0(40.8) 4800 0.95(0.097) 25.0 4.5
SH21010 4.0(40.8) 3500 1.84(0.188) 37.0 6.0
SH-25011 4.0(40.8) 3000 1.90(0.193) 50.0 7.0
형식
Type
型式
내경
Available I.D.
可用内径
[mm]
직경
Cylinder Dia.
缸径
[mm]
피스톤 스트로크
Piston stroke
活塞行程
[mm]
피스톤 추력
Piston Force
活塞队
압축 / Push / 推
[kN(kgf)]
인축 / Pull / 拉
[kN(kgf)]
SH-10036 36.0 105 12 25.0(2549) 24.0(2447)
SH-13046 46.0 135 15 42.3(4285) 38.1(3865)
SH-15052 52.0 156 22 60.0(6118) 56.0(5710)
SH-17068 68.0 170 25 63.0(6531) 59.8(6060)
SH-18077 77.0 185 25 75.3(7632) 69.6(7087)
SH-19082 82.0 185 25 76.0(7715) 70.0(7156)
SH-21010 106.0 215 30 91.8(9357) 87.8(8952)
SH-25011 117.5 255 23 132(13390) 121(12305)
