SAMLEX AMERICA INC. | 3
SECTION 1 | Introduction and Layout
Fault
160
114.2
146
4.2
100
1.0 INTRODUCTION
The EVO-RC-PLUS Remote Control allows you to monitor and customize the operating parameters of Samlex EVO™
Inverter/Chargers Models EVO-1212F / 1212F-HW, 1224F / 1224F-HW, 2212, 2224, 3012 and 4024. Layout is shown
in Fig 1 below.
It has its own internal Real Time Clock and Super Capacitor Type of Battery for clock operation.
1.1 LAYOUT AND DIMENSIONS
1. LCD Screen:
- 4 rows of 20 characters each
- Blue screen with white
characters
2. ON/OFF Key
3. Blue LED “Status”
4. Red LED “Fault”
5. Navigation Key “Back”
6. Navigation Key “Up”
7. Navigation Key “Down”
8. Navigation Key “Enter”
9. SD Card Slot – FAT16/32
format, up to 16 GB
10. RJ-45 Jack
11. RJ-12 Jack

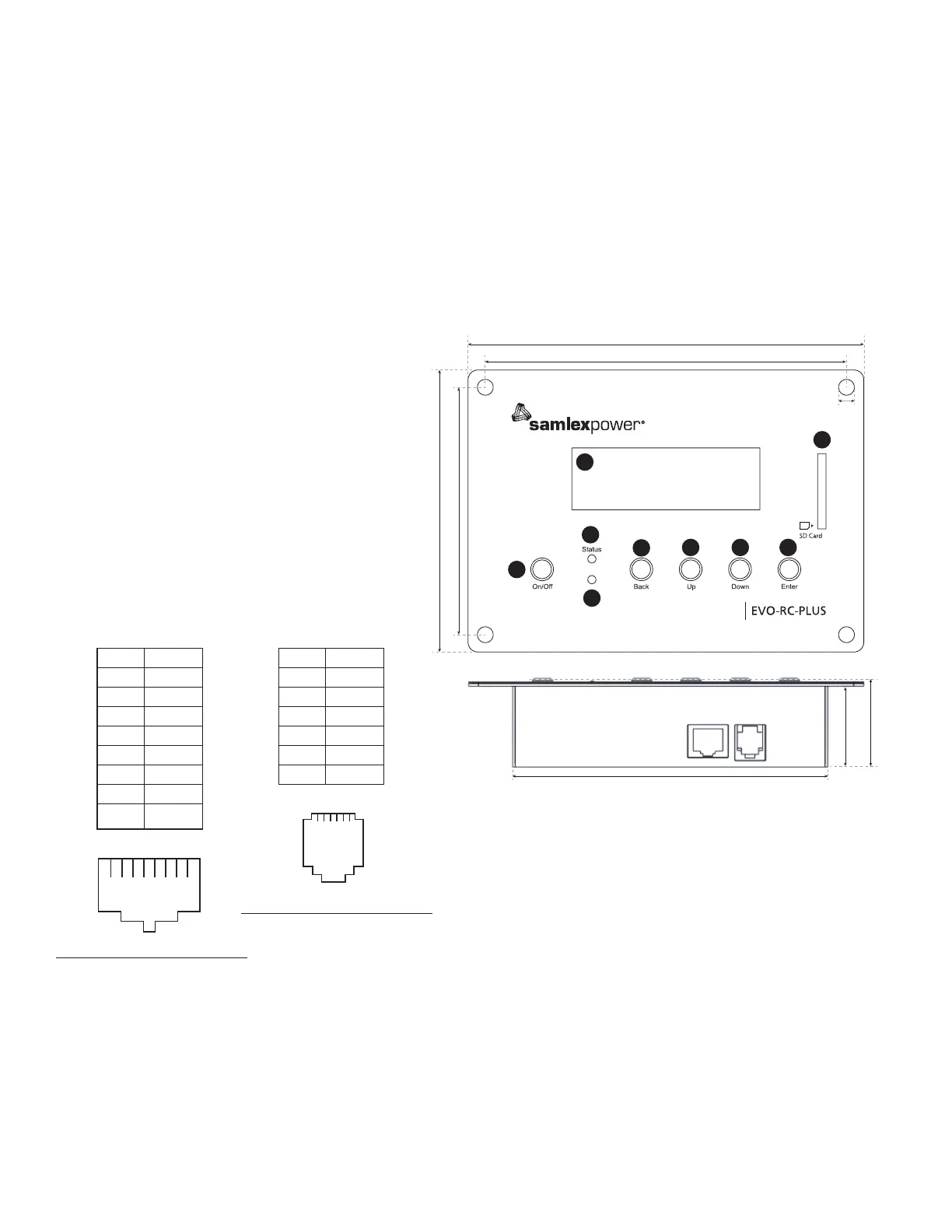

Fig 1.1 Layout & Dimensions of
Remote Control Model EVO-RC-PLUS
Pin # Signal
1 12V
2 12V
3 ON/OFF
4 D+
5 D-
6 NC
7 GND
8 GND
Pin # Signal
1 NC
2 GND
3 D-
4 D+
5 12
6 ON/OFF
1 2 3 4 5 6 7 8
1 2 34 5 6
(View - Looking into the Jack)
(View - Looking into the Jack)
128
32.5
35.5
1 2 3 4 5 6
1.2 CONNECTING CABLE
Details of connecting cable provided with the Remote Control are as follows:
• Length: 10m / 33ft
• No of conductors: 8
• Modular Plug: 8P8C, RJ-45
• Plug interconnection: Straight (See Pinout at Fig 1.2)
9
5
3
4
6
7
8
1
2
