4 | SAMLEX AMERICA INC.
SECTION 1 | Introduction and Layout

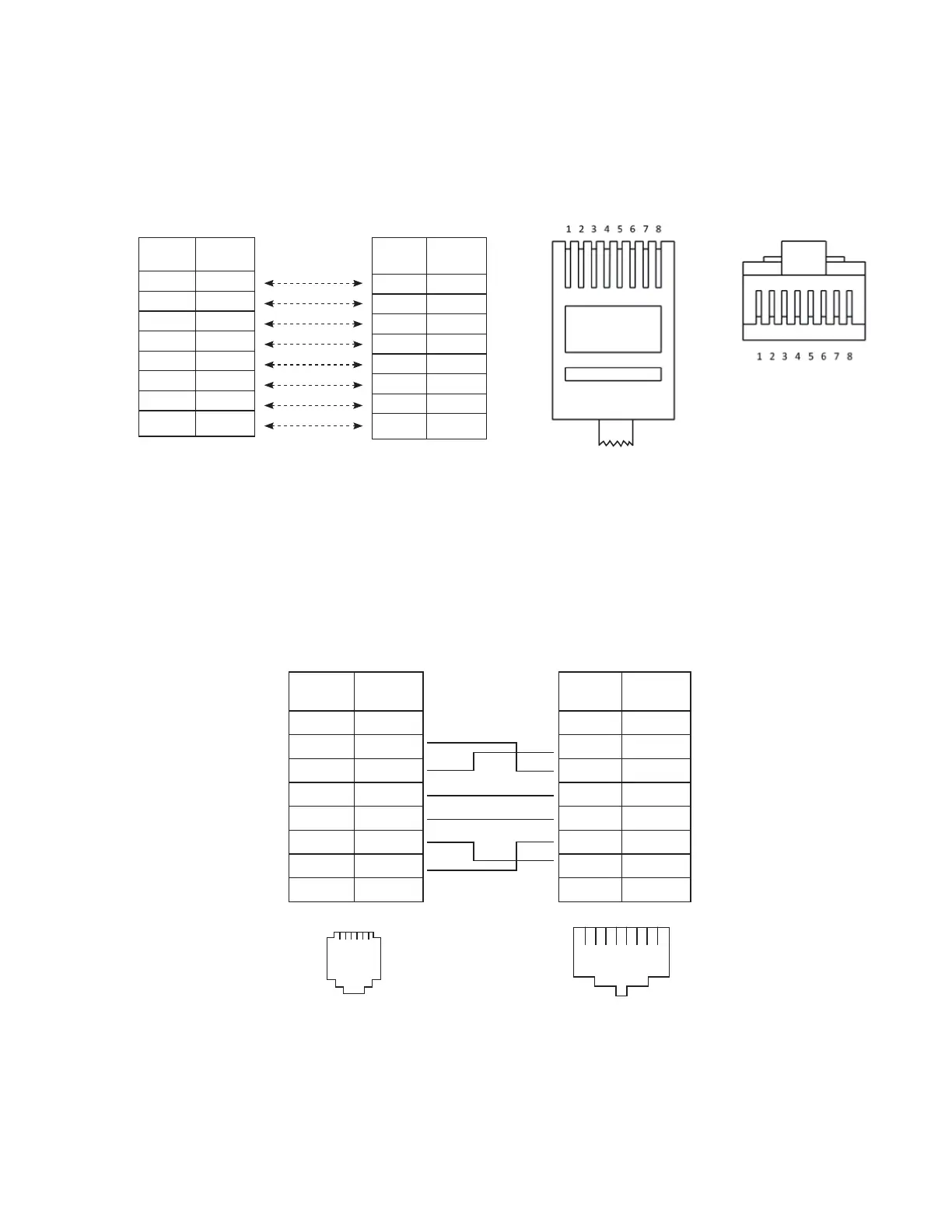

1.3 PINOUT DIAGRAMS & INTERNAL INTERCONNECTION OF RJ-45 & RJ-12 JACKS
RJ-45 Jack (10, Fig 1.1) and RJ-12 Jack (11, Fig 1.1) are internally connected as pinout at Fig 1.3.
RJ-45
Pin # Signal
1 12V
2 12V
3 ON/OFF
4 D+
5 D-
6 NC
7 GND
8 GND
RJ-45
Pin # Signal
1 12V
2 12V
3 ON/OFF
4 D+
5 D-
6 NC
7 GND
8 GND
Top view of Plug -
Locking Tab facing down
Front view of Plug -
Locking Tab
facing up
Fig 1.2 Pin Out of Plugs for 8P8C, RJ-45 Connecting Cable
8P 8C, RJ-45 Modular PlugPin Out of Plug - End 2Pin Out of Plug - End 1
RJ-12
Pin # Signal
6 ON/OFF
5 12V
4 D+
3 D-
2 GND
1 NC
RJ-45
Pin # Signal
1 12V
2 12V
3 ON/OFF
4 D+
5 D-
6 NC
7 GND
8 GND
Fig 1.3 Pinout and internal interconnections of RJ-45
and RJ-12 (6P6C) Jacks on EVO-RC-PLUS
Straight
Connection
1 2 3 4 5 6 7 8
1 2 3 4 5 6
1 2 3 4 5 6 7 8
1 2 3 4 5 6
RJ-12 (6P6C) Jack RJ-45 (8P8C) Jack
