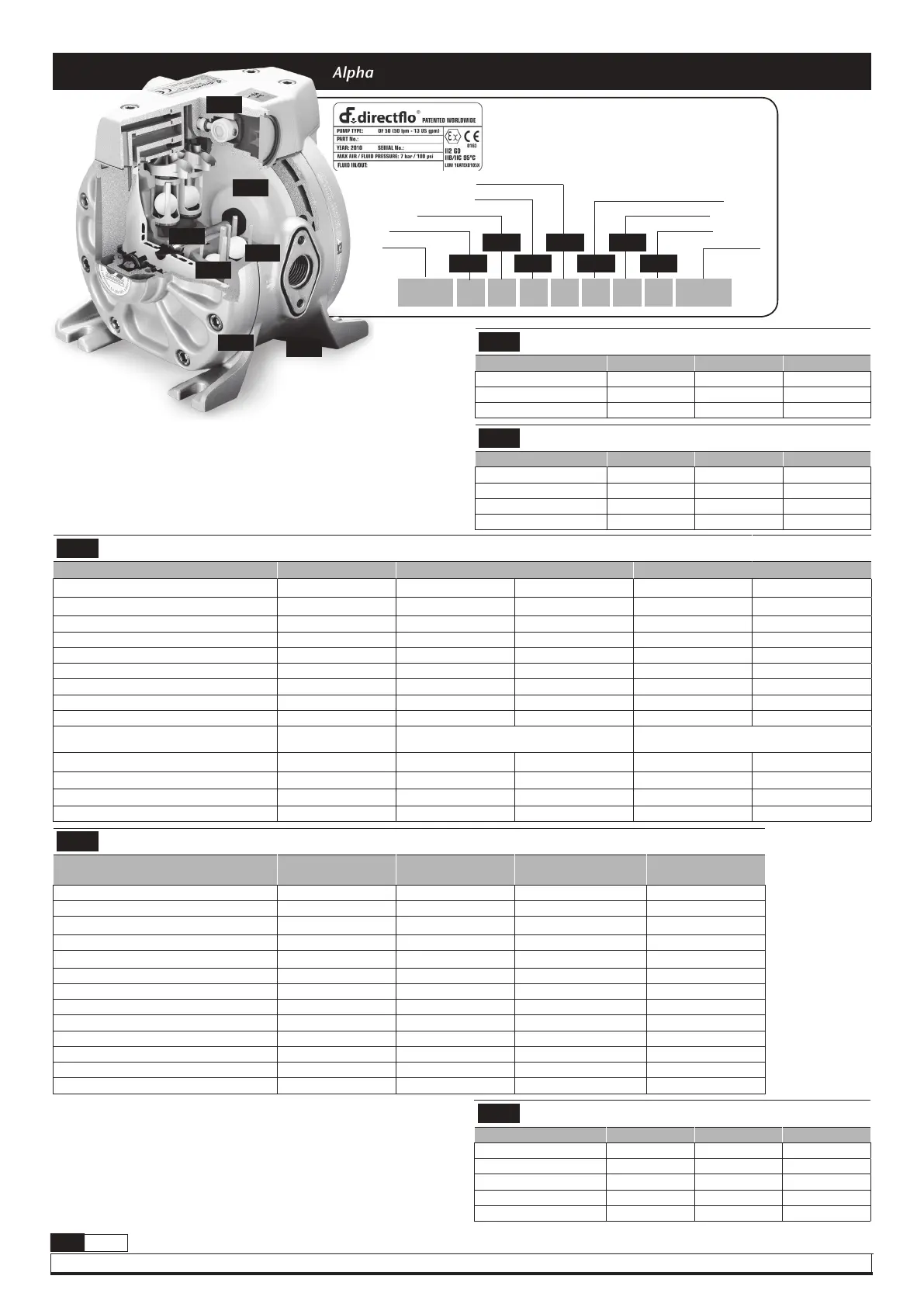

Alphanumeric pumps repair kit codes
Table 3
BALL CHECK SEATS / O-RINGS / BALL GUIDES ASSEMBLY - (Repair kit)
DF30 DF50 DF100
METALLIC COMPOSITE METALLIC COMPOSITE
1 = SS / NBR / Acetal 558314.001 558314 558314.001 558357 558357.001
2 = SS / FKM / Acetal 558315.001 558315 558315.001 558359 558359.001
3 = SS / FKM / PP 558316.001 558316 558316.001 558360 558360.001
4 = SS/ FKM / PTFE 558317.001 558317 558317.001 558361 558361.001
5 = PVDF / FKM / PP 558318.001 558318 558318.001 558362 558362.001
6 = SS / EPDM / Acetal 558334.001 558334 558334.001 558391 558391.001
7 = SS / EPDM / PTFE 558335.001 558335 558335.001 558392 558392.001
8 = SS / EPDM / PP 558336.001 558336 558336.001 558393 558393.001
9 = SS / PTFE / No guide -
558341*ask samoa with yout S.
Number 558341.001*
558378*
558378.001*
F = PVDF / FFKM + FEP / PVDF 558346.001 558346 558346.001 558452 558452.001
G= PVDF / FFKM/ + FEP / Polypropylene 558407.001 558407 558407.001 558454 558454.001
H = SS / FFKM + FEP / Acetal 558403.001 558403 558403.001 558453 558453.001
L = SS / FFKM + FEP / PP 558349.001 558349 558349.001 558450 558450.001
Table 4
BUSHING / SEAL / PUSH ROD ASSEMBLY - (Repair kit)
DF30 DF50
DF100 with Hytrel or
Santoprene diaphragms
DF100 with PTFE
diaphragms / NBR
1 = PTFE / NBR / SS 558325.001 558304.001 558352.001 558398.001
2 = PTFE / FKM / SS 558326.001 558307.001 558353.001 558399.001
3 = PTFE / PTFE / SS 558327.001 558310.001 558354.001 558358.001
4 = PTFE / FKM / HASTELLOY 558346.001 558312.001 - 558355.001
5 = Conductive PTFE/ PTFE / SS 558327.001 558310.001 558354.001 558358.001
6 = Conductive PTFE / FKM / SS 558326.001 558307.001 558353.001 558399.001
7 = Conductive PTFE / EPDM / SS 558328.001 558333.001 558382.001 558379.001
8 = PTFE / EPDM / SS 558328.001 558333.001 558382.001 558379.001
9 = Conductive PTFE / PTFE / SS 558327.001 558310.001 558354.001 558358.001
A = Conductive PTFE / FKM / SS 558326.001 558307.001 558353.001 558399.001
B = Conductive PTFE / EPDM / SS 558328.001 558333.001 558382.001 558379.001
U = UV special bushing / PTFE / SS 558348.001 558348.001 558396.001 558452.001
K = Conductive PTFE / no seals /HASTELLOY 558402.001 558401.001 - 558451.001
Table 5
DIAPHRAGMS - (Repair kit)
DF30 DF50 DF100
H = Hytrel
®
558337.001 558303.001 558368.001
T = PTFE 558344.001 558309.001 558371.001
S = Santoprene
®
558343.001 558306.001 558369.001
W = PTFE / PVDF 558345.001 558347.001 558395.001
N = NBR
- -
558457.001
All body codes are threaded in BSP.
To order a NPT threaded body request some body with .300 sulfix example:
DF100 Aluminium BSP body: 755110
DF100 Aluminium NPT body: 755110.300
SS = Stainless Steel, PP = Polypropylene
PTFE = Teflon
®
, FKM = Viton
®
, EPDM = Sinthetic rubber
PVDF = Polyvinyl fluoride.
Table 1
AIR VALVE MODULE - (Repair kit)
DF30 DF50 DF100
A = Aluminum 558300 558300 558350
P = PP 558343 558343 558395
B = PP conductivo 558343 558343 558395
Table 2
BALL CHECK VALVES - (Repair kit)
DF30 DF50 DF100
C = Acetal 558321 558321 558365
T = PTFE 558319 558319 558363
S = SS 558342 558342 558367
N = NBR - - 558364
MODEL EXAMPLE
ADF50 A A 2 3 T H
PUMP SIZE
AIR VALVE MODULE
WETTED PUMP BODY
PUMP SHIELD
BUSHING / SEAL /
PUSH ROD ASSEMBLY
CONNECTIONS
BALL CHECK SEATS / O-RINGS /
BALL GUIDES ASSEMBLY
BALL CHECK VALVES
DIAPHRAGMS
BAS
Table 1
Table 14
Table 9
Table 4
Table 3
Table 2
Table 5
Table 1
Table 14
Table 9
Table 4
Table 3
Table 2
Table 5
DF 55x xxx
