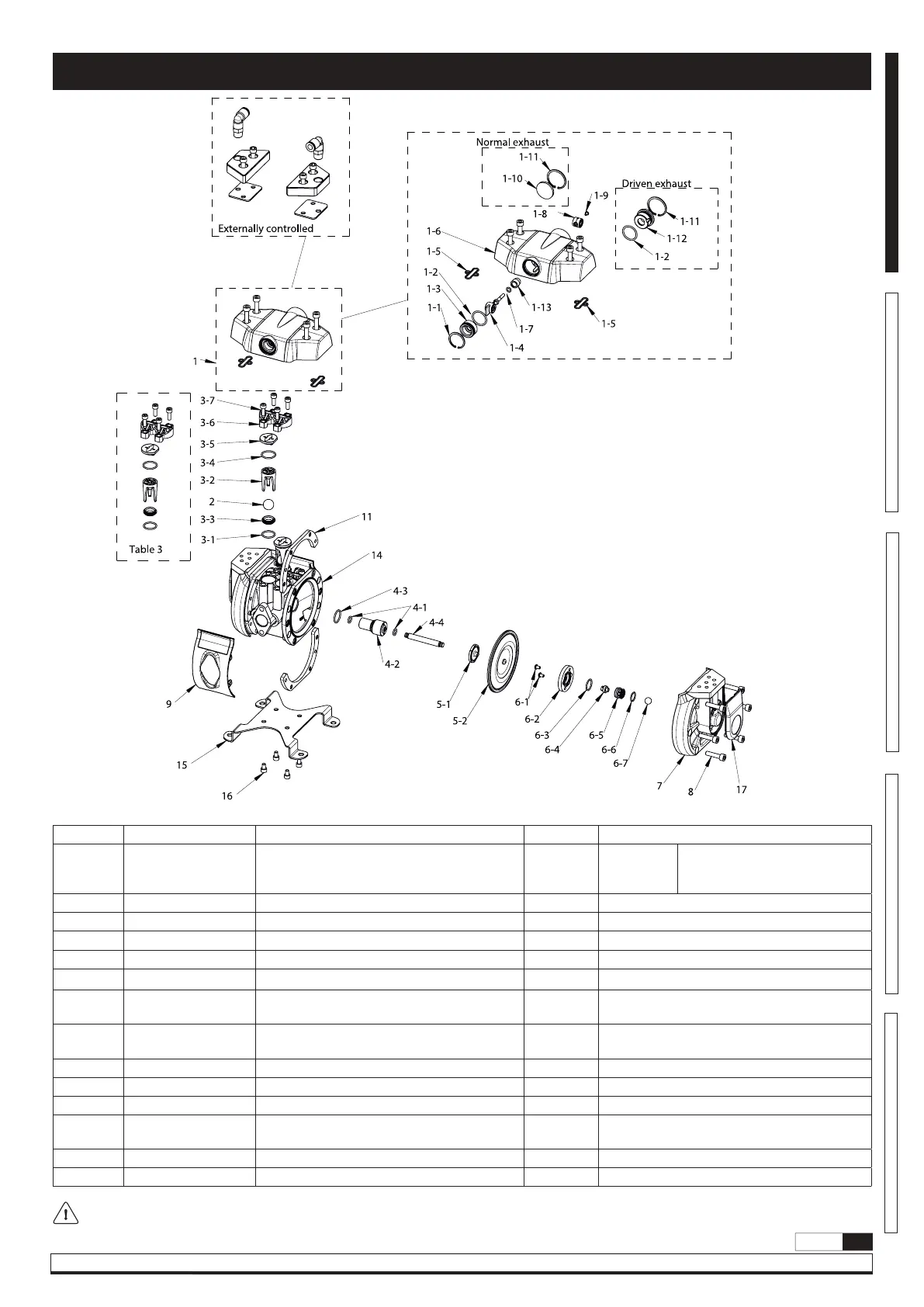

Composite body pump parts
No. Code Description Qty. Notes
1 Table 1 Directional Valve 1 Options:
Normal exhaust
Driven exhaust
Externally controlled
2 Table 2 Balls -
3 Table 3 Ball check seats / O-rings / Ball guides -
4 Table 4 Bushing / Seal / Push rod -
5 Table 5 Diaphragms -
6 Table 6 Air sensors - Not available in externally controlled models
7
755117 /
855685
Diaphragm cover metallic pumps /
Non metallic pumps
2 (Not sold as a kit)
8
940380 /
940072
Diaphragm cover bolts metallic series /
Non metallic series
12 (Not sold as a kit)
9 Table 9 Pump shields 2 (Not sold as a kit)
11 855420 Diaphragm cover washers 4 (Not sold as a kit)
14 Table 14 Body 1 (Not sold as a kit)
15
855414 /
855687
Pump support /
Non metallic support
1 (Not sold as a kit)
16 940319 Support bolts 4 (Not sold as a kit)
17 855646 Cover 2 (Not sold as a kit)
Directional valve is sold as
kit. Assembled and verified
in Samoa facilities.
NOTE: To identify proper repair kit for your pump, search for piece pump code in the nameplate of the pump. If that code corresponds to 55xxxx go to
page 14, if that code corresponds to DFXXXXXXXXX go to page 16.
