6 EB 8015 EN
Assembling valve and actuator

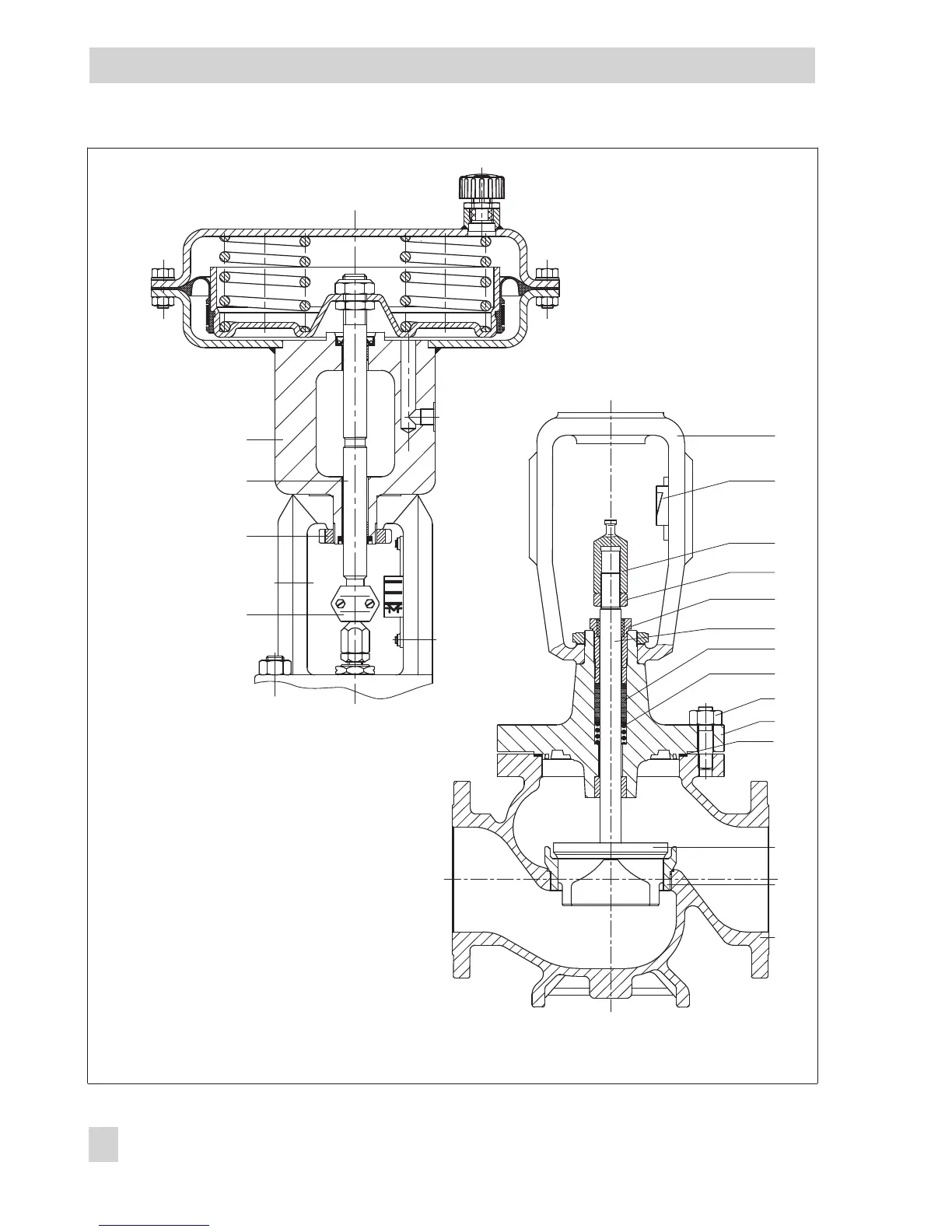

Fig. 3 · Sectional drawings of Type 3241-7 and valve body DN 200 to DN 300
8
8.1
8.2
7
6.1
1.1
4.1
1.2
5
3
2
1
4.2
6
5.2
6.2
5.3
6.3
1 Valve body
1.1 Nuts
1.2 Gasket
2 Seat
3 Plug
4.1 Spring
4.2 Packing
5 Valve bonnet
5.2 Threaded bushing
5.3 Travel indicator scale
6 Plug stem
6.1 Stem connector nut
6.2 Lock nut
6.3 Yoke (DN 200 to DN 300)
7 Stem connector
8 Actuator
8.1 Actuator stem
8.2 Nut
Type 3277 Actuator
